Integrating FTM8000 Data Acquisition with FTM8008 Measuring Instruments for Multi-Parameter ATE Logging

Building a Multi-Instrument Measurement Architecture

In modern automated test environments, capturing accurate and synchronized electrical parameters is critical for validating device performance. Building a robust multi-instrument measurement architecture requires a seamless integration between a versatile data acquisition system and high-precision measuring instruments. By combining the FTM8000 series modular automated data acquisition and control system with the FTM8008 series High precision AC and DC measuring instrument, test engineers can establish a comprehensive automated data acquisition power measurement workflow. This integration allows for synchronized voltage, current, and power logging, ensuring that multi-parameter data is captured accurately across complex automated test equipment (ATE) setups.

Establishing the Synchronized Testing Workflow

The foundation of an effective ATE logging system is synchronization. When evaluating devices under test (DUTs), measurements must occur simultaneously to accurately calculate real-time power consumption and efficiency. The FTM8000 serves as the central hub for automated data acquisition and control, orchestrating the test sequence and managing the timing triggers. As a modular system, it can be configured to match the specific channel count and I/O requirements of the test station.

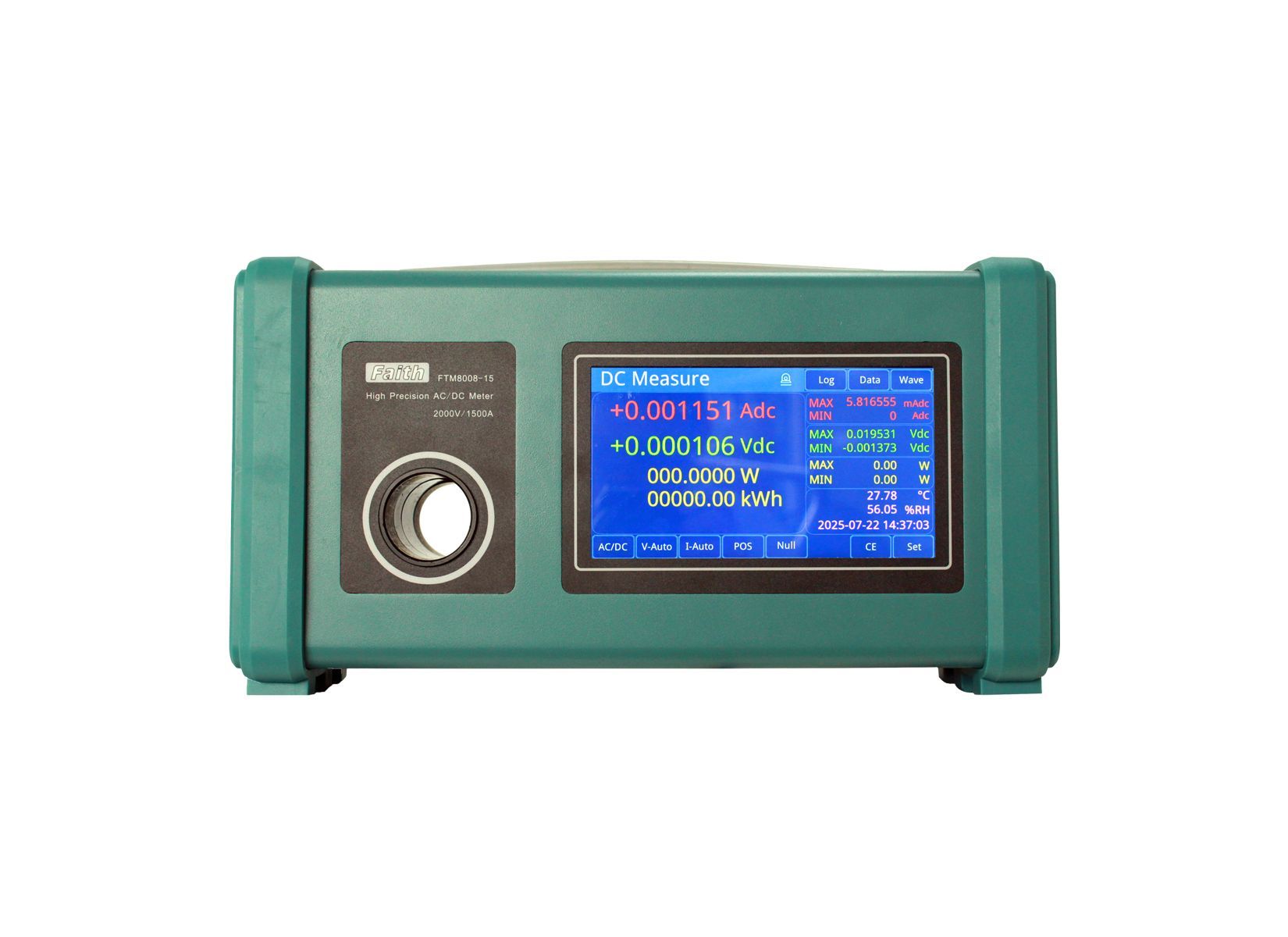

Integrated into this architecture, the FTM8008 provides the high-precision AC and DC measuring capabilities required for stringent parametric testing. When the FTM8000 issues a trigger, the FTM8008 captures the instantaneous voltage and current values. This synchronized handshake between the DAQ controller and the measuring instrument eliminates timing discrepancies. Consequently, the automated data acquisition power measurement process yields reliable, time-aligned datasets that reflect the true operational state of the DUT.

Implementing Voltage, Current, and Power Logging

A multi-parameter ATE architecture must capture a comprehensive view of electrical behavior. The FTM8008 series excels in high-precision AC and DC measuring, making it an ideal fit for applications requiring exact voltage and current readings. By routing these measurements through the FTM8000, engineers can log multiple parameters concurrently.

The workflow involves the following key steps:

• Signal Routing: The DUT's voltage and current outputs are connected to the FTM8008's measurement inputs.
• Trigger Configuration: The FTM8000 is programmed to issue hardware trigger signals at specific intervals or based on event-driven conditions within the test sequence.
• Data Capture: Upon receiving the trigger, the FTM8008 performs high-precision AC and DC measuring, capturing the instantaneous values.
• Data Aggregation: The FTM8000 retrieves the measurement data from the FTM8008 and logs it alongside other DAQ parameters, such as temperature or digital control states.
• Power Calculation: The system logs the synchronized voltage and current data, allowing for precise real-time or post-test power calculation.

This structured approach to automated data acquisition power measurement ensures that no transient events are missed and that the logged data maintains its integrity across all captured channels.

Scaling Automated Test Environments

As testing requirements grow, the multi-instrument architecture must scale efficiently. The modular nature of the FTM8000 allows test engineers to expand their data acquisition capabilities without overhauling the entire ATE system. Additional FTM8008 measuring instruments can be incorporated into the test rack to monitor multiple DUTs or to capture additional AC and DC parameters simultaneously.

By maintaining a centralized control and logging strategy through the FTM8000, the complexity of managing multiple high-precision measuring instruments is significantly reduced. This scalable architecture supports the development of advanced automated data acquisition power measurement systems, providing a reliable framework for high-throughput manufacturing test floors and rigorous R&D validation labs alike. Integrating these specialized instruments ensures that both control and measurement functions operate at peak precision, delivering the high-quality data required for modern power electronics testing.
