Selecting Bench vs. Wide-Range DC Power Supplies for Laboratory and Production Testing

Understanding Programmable DC Power Supply Selection Criteria

Choosing the right DC power source is a critical decision for engineering teams. Whether you are validating a new circuit design in a research laboratory or running high-volume production testing on an assembly line, the power supply must meet precise voltage, current, and dynamic response requirements. Effective programmable DC power supply selection hinges on evaluating form factor, power range, and the flexibility of the output envelope.

Engineers typically choose between compact bench-top units designed for space efficiency and wide-range units that offer flexible voltage-current combinations. This guide compares three distinct series—the FTP1000, the FTP3000, and the FTP9000—to help you match specifications with your specific application.

FTP1000 Series: Compact Precision for Bench and Rack Integration

For applications where physical space is at a premium, the FTP1000 Series Programmable DC Power Source provides an optimal solution. Designed with a small footprint, this series is available in 1U/½19" or full 19" rack-mount configurations. This modularity allows engineers to utilize limited bench space efficiently or integrate multiple units into a standard equipment rack without occupying excessive vertical real estate.

The FTP1000 is particularly well-suited for basic laboratory research, educational environments, and low-power component validation. Its compact size does not compromise programmability, making it a reliable choice for automated test setups where space optimization is a primary design constraint. When your testing requirements demand standard voltage and current levels within a smaller physical envelope, the FTP1000 serves as a highly practical, entry-level programmable source.

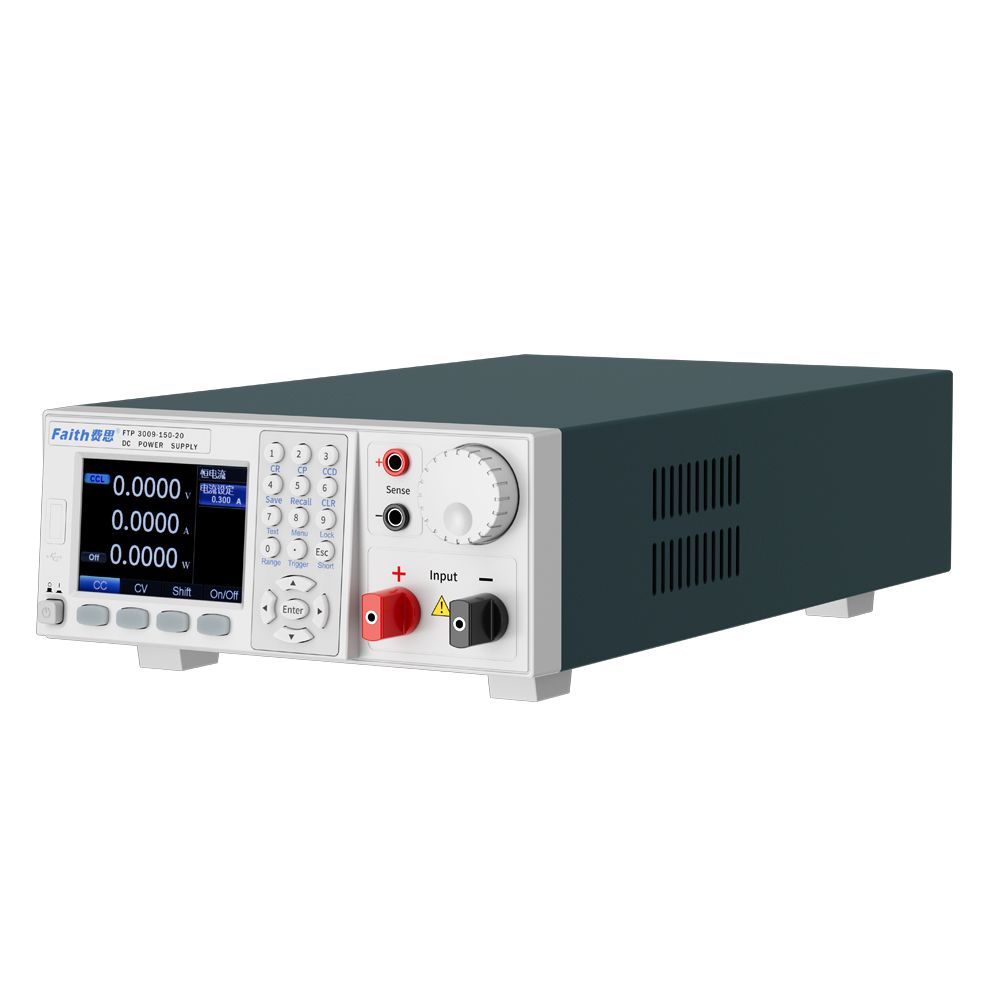

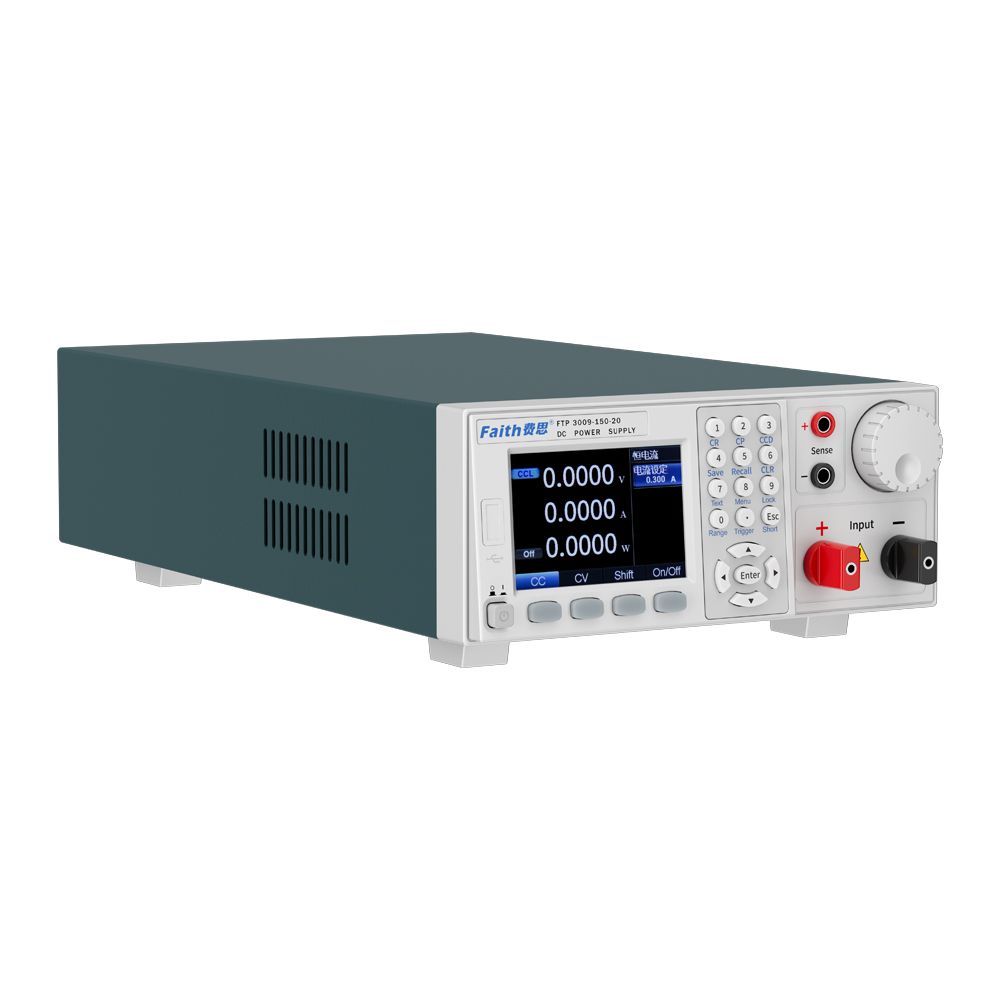

FTP3000 Series: Wide-Range Flexibility for Low-Power Testing

As testing requirements become more complex, engineers often encounter devices under test (DUTs) that require varying voltage and current combinations. The FTP3000 series Wide range low power programmable DC power source addresses this need by offering a wide output envelope. With power ratings of 900W and 1500W, the FTP3000 provides flexible application across multiple test scenarios.

Wide-range capability means a single unit can supply high voltage at low current, or low voltage at high current, maximizing the utilization of the rated power. This flexibility reduces the need to maintain an extensive inventory of specialized power supplies for different test fixtures. The FTP3000 is ideal for production line testing, quality assurance, and R&D laboratories where DUT specifications frequently change, allowing for rapid reconfiguration without swapping hardware.

FTP9000 Series: High-Power Solutions for Demanding Applications

When moving from component-level testing to full system integration and high-power validation, the FTP9000 Series Wide Range High Power Programmable DC Power Source delivers the necessary performance. Scaling from 5kW up to 180kW, this series supports multi-specification flexible applications across demanding power electronics laboratories.

The FTP9000 is engineered for rigorous, high-energy testing environments. Key applications include:

• Fuel cell, power battery, lead battery, and ultracapacitor testing
• Simulation of power supply environments for vehicle, airborne, and shipboard electronic equipment
• DC charger and charging pile design and test system integration
• Design and test of server power supplies, UPS systems, and inverters
• Design and test in solar energy, wind energy, and energy storage systems
• UAV, laser, and sensor field power supply and design testing

For engineers working on electric vehicle powertrains, renewable energy inverters, or grid-scale energy storage, the FTP9000 provides the robust power delivery and programmable simulation capabilities required to validate performance under real-world conditions.

Matching Specifications to Application Requirements

The final step in programmable DC power supply selection is mapping your specific operational needs to the capabilities of each series. Consider the following alignment guidelines:

1. Space-Constrained Laboratories: If your primary constraint is physical size and your power requirements are standard, the 1U/½19" or full 19" configuration of the FTP1000 is the logical choice.
2. Flexible Production Testing: When your production line handles diverse products with varying voltage and current demands, the 900W and 1500W wide-range outputs of the FTP3000 offer the versatility needed to support multiple test fixtures without hardware changes.
3. High-Power R&D and Integration: For power electronics laboratories validating batteries, chargers, or renewable energy systems up to 180kW, the FTP9000 provides the necessary power scale and simulation features.

By evaluating your maximum power requirements, the variability of your DUT's voltage/current needs, and your physical installation constraints, you can select the FaithTech series that ensures accurate, reliable, and efficient testing throughout your product lifecycle.
