Introduction to DC Charging Pile Test System Integration
The rapid expansion of electric vehicle infrastructure demands highly reliable and efficient charging equipment. To ensure safety, performance, and compliance, manufacturers rely on a robust dc charging pile test system during the design and validation phases. Selecting the appropriate programmable DC power source is a critical step in this process. The power supply must accurately simulate various dynamic supply environments and handle the rigorous demands of testing DC chargers, charging modules, and vehicle chargers.
FaithTech offers a comprehensive portfolio of programmable DC power sources tailored for power electronics laboratories. This selection guide compares three leading series—the FTP Series wide range programmable DC power source, the FTP9000 Series Wide Range High Power Programmable DC Power Source, and the FTG Series Combined Large Power Programmable DC Power Source—to help engineers integrate the optimal solution for their specific testing requirements.

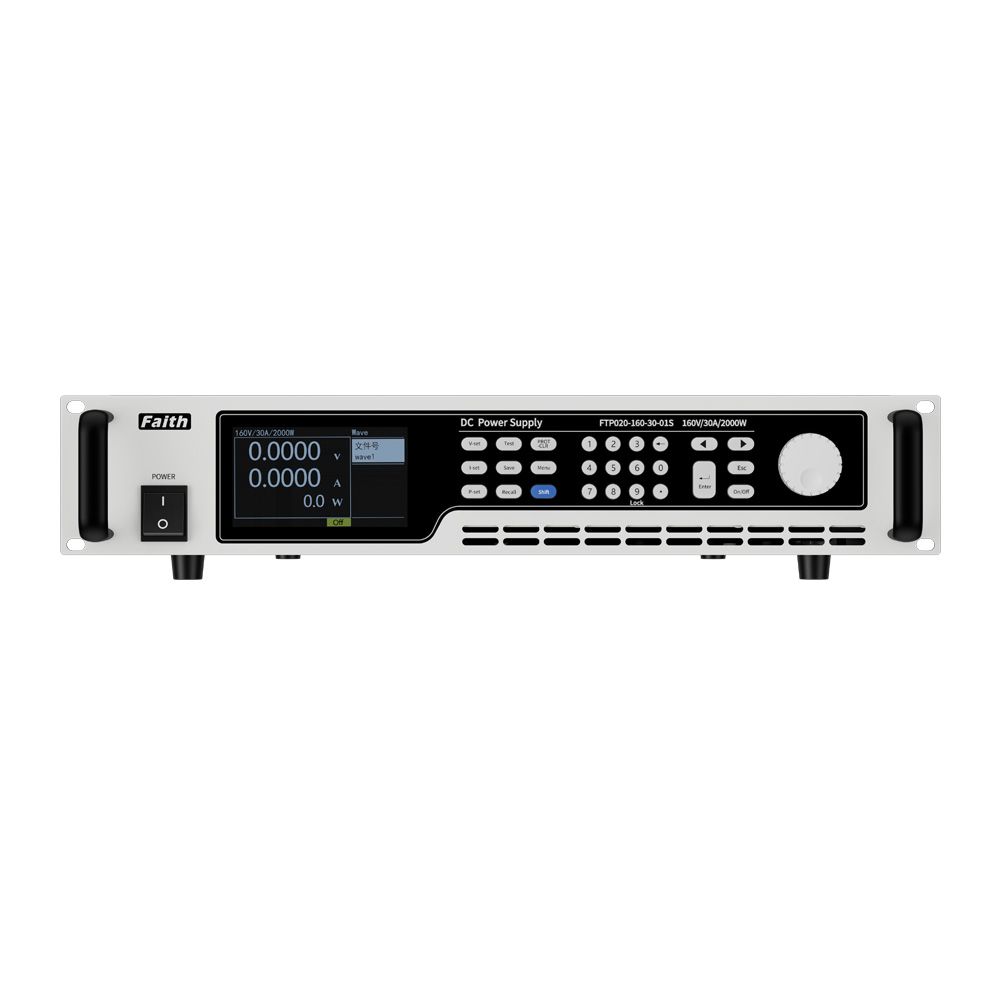

FTP Series: Versatile Wide-Range Power for Module Testing
The FTP Series is FaithTech's best-selling line of wide-range programmable DC power sources, verified by Onsemi. It is designed to offer multi-specification flexible application within power electronics laboratories. For engineers building a dc charging pile test system, the FTP Series provides an excellent foundation for testing individual charging modules and vehicle chargers.
This series excels in applications that require precise simulation of power supply environments for vehicle, airborne, and shipboard electronic equipment. Beyond charging infrastructure, its versatility extends to fuel cell, power battery, lead battery, and super capacitor testing. In the context of charging pile design, the FTP Series allows engineers to simulate diverse input conditions, ensuring that charging modules operate reliably under varying grid conditions. Its wide-range capability means a single unit can cover multiple voltage and current combinations, reducing the need for numerous specialized power supplies in the laboratory.

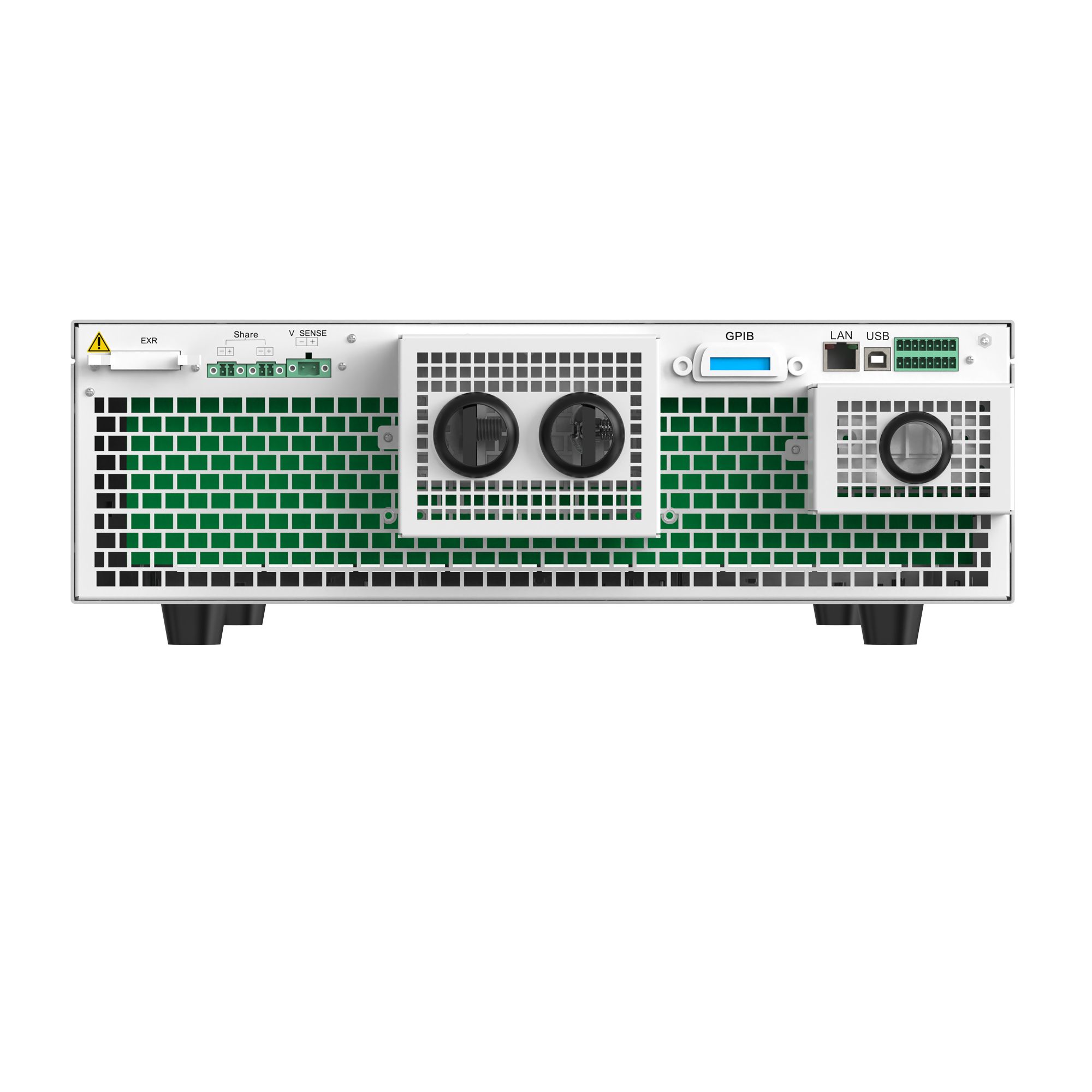

FTP9000 Series: High-Power Capabilities for Full Charger Validation
As charging infrastructure scales to higher power ratings to reduce charging times, test systems must keep pace. The FTP9000 Series Wide Range High Power Programmable DC Power Source delivers power ranging from 5kW up to 180kW, making it suitable for testing high-power DC chargers and integrated charging pile systems.
The FTP9000 Series maintains the multi-specification flexibility of the FTP line but scales it for demanding applications. When integrating a dc charging pile test system for complete charging stations, the high power density of the FTP9000 allows for testing the entire charging pile assembly under maximum load conditions. This capability is crucial for validating thermal management, efficiency, and control logic within the charger. Furthermore, the FTP9000 supports the design and testing of server power supplies, UPS systems, inverters, and renewable energy components such as solar and wind energy systems. For charging pile manufacturers producing ultra-fast chargers, the FTP9000 provides the necessary power envelope to validate system integrity before deployment.

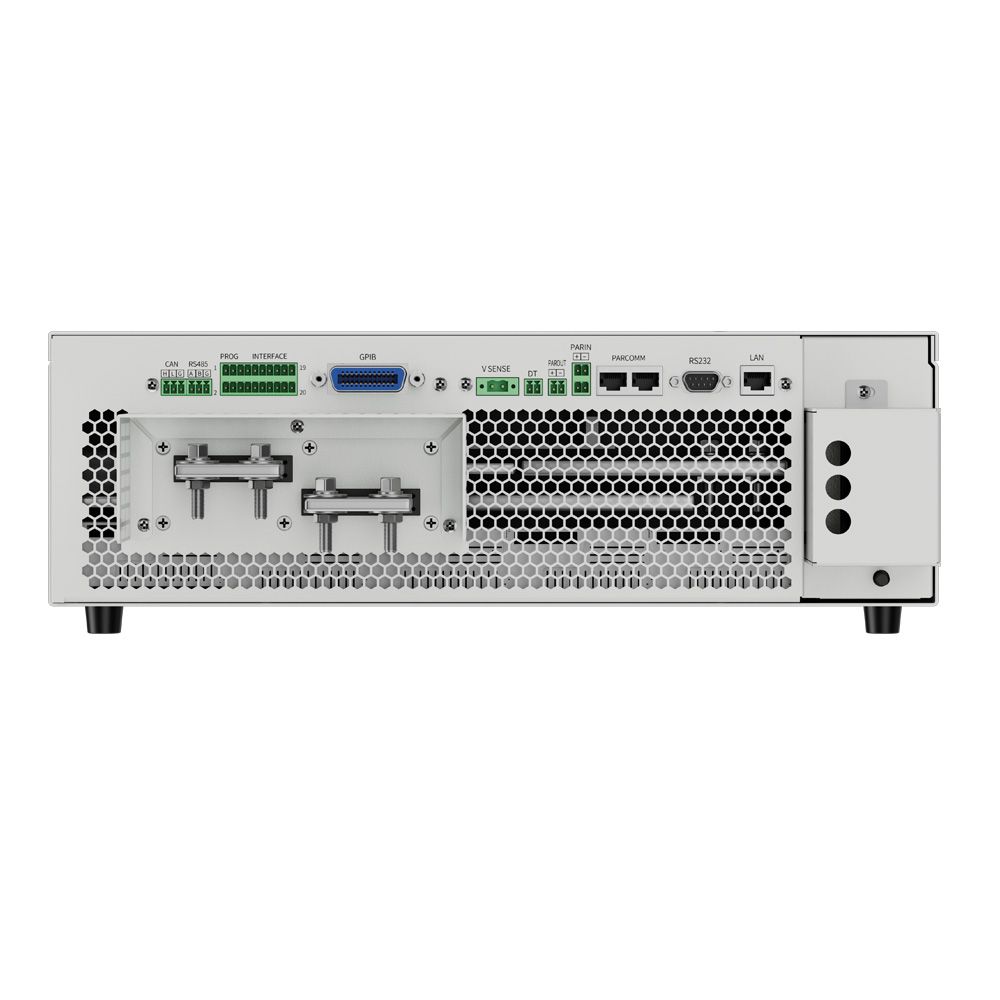

FTG Series: Combined Large Power for Extreme Testing Scenarios
For testing ultra-high-power charging systems, superconducting materials, and heavy cables, standard power supplies may not suffice. The FTG Series Combined Large Power Programmable DC Power Source is engineered specifically for these extreme requirements. It boasts a maximum current of 20,000A per unit and can be connected in parallel to achieve an astonishing 200,000A.
In a dc charging pile test system designed for heavy commercial vehicles or megawatt charging systems, the FTG Series provides unparalleled current output. This series is ideal for stress-testing high-capacity power batteries, supercapacitors, and the heavy-duty cabling used in modern ultra-fast charging infrastructure. The FTG Series also supports the testing of sensors and superconducting materials, alongside standard applications like vehicle power supply environment simulation and inverter design. By combining multiple units, engineers can scale their test systems to match the most aggressive high-current test profiles required by next-generation charging standards.
Key Considerations for Test System Integration
When selecting a DC power supply for charging pile testing, engineers must evaluate the specific test objectives:
- Component vs. System Testing: For testing individual charging modules or vehicle chargers, the FTP Series offers the necessary wide-range flexibility. For full-system validation of standard DC charging piles, the FTP9000 Series provides the required 5 to 180kW power range.
- Current Requirements: Standard charging piles operate well within the capabilities of the FTP and FTP9000 series. However, next-generation megawatt charging systems and heavy cable testing require the extreme current capabilities (up to 200,000A) of the FTG Series.
- Application Scope: If the laboratory also handles fuel cell testing, energy storage design, or UAV power supply testing, all three series offer multi-specification flexibility to maximize return on investment.
Integrating the right power source into a dc charging pile test system ensures accurate simulation of real-world electrical environments. By matching the power supply's specifications—ranging from the versatile FTP Series to the high-current FTG Series—to the specific testing requirements, manufacturers can guarantee the reliability and safety of their DC charging infrastructure.
