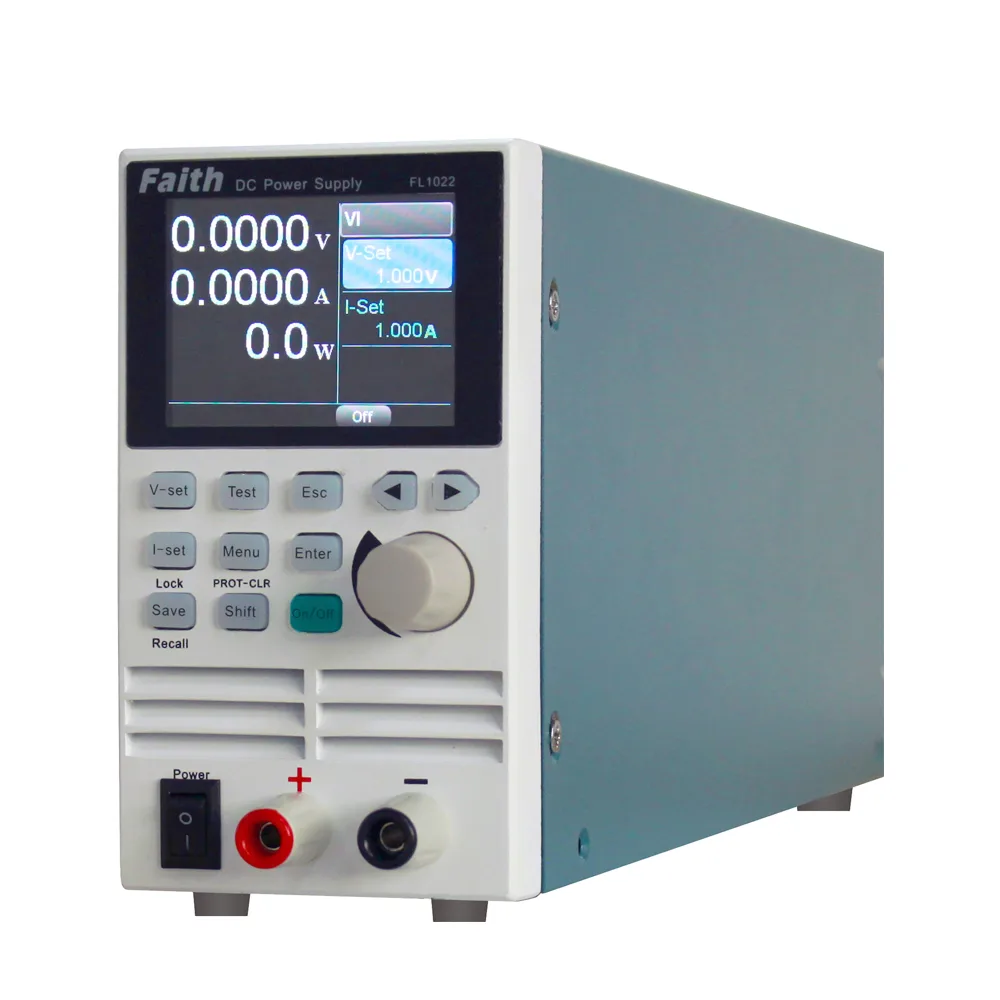

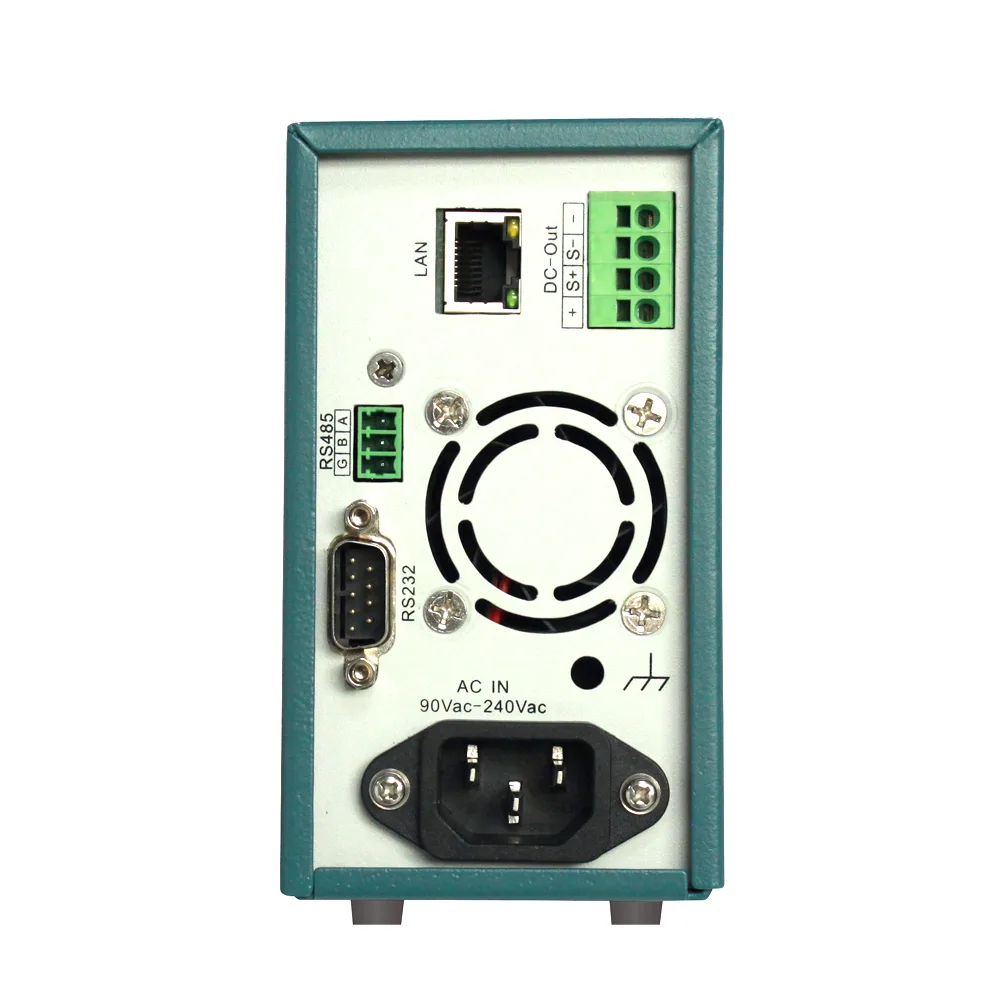

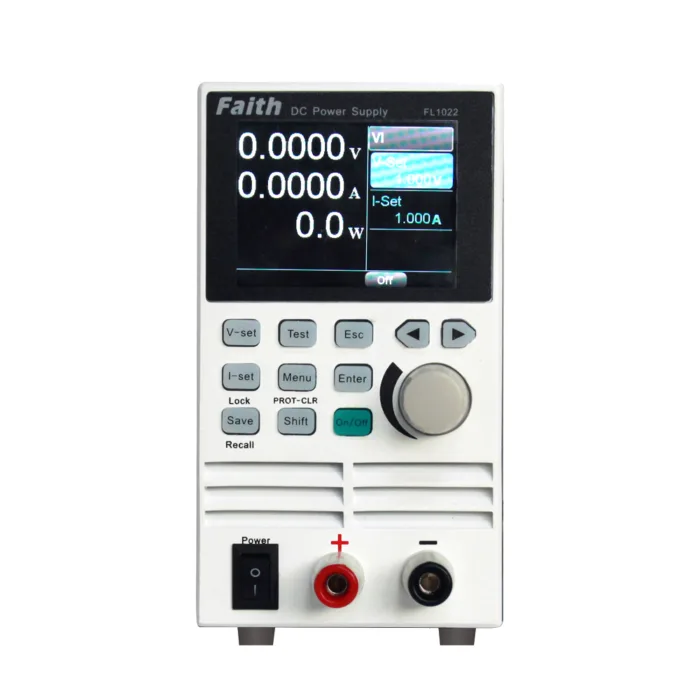

Description

CV、CC  priority

When the power output is connected to inductive or capacitive loads, it will cause a certain degree of overshoot in the output current or voltage. In mild cases, it will trigger the protection of the tested equipment; in severe cases, it will directly lead to the damage of the tested equipment. The FL series has the priority function of CV and CC output, which effectively suppresses the output overshoot and its associated effects.

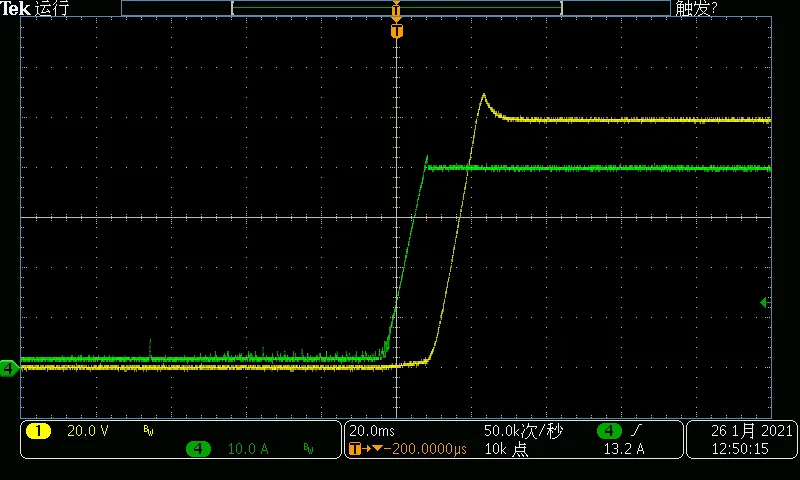

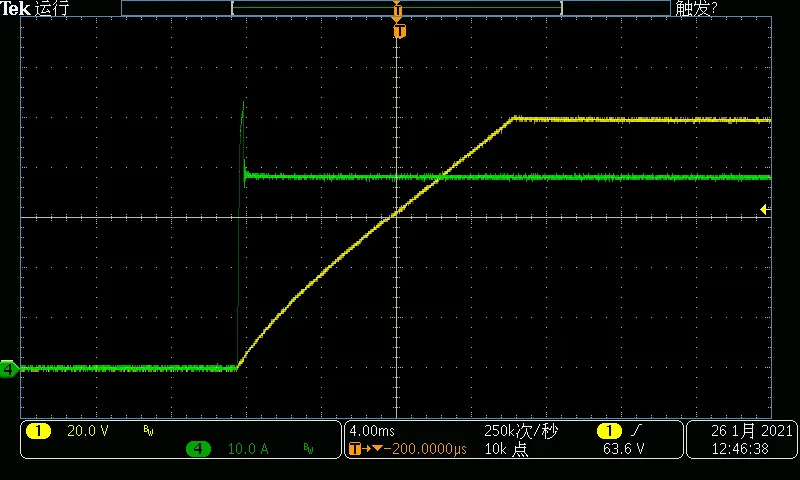

CV priority (high speed build voltage, current overshoot) CC priority (high speed build current, voltage overshoot)

Sequence Function

In the sequence output function mode, complex output variations can be simulated based on the sequence parameters edited by the user. The sequence output function, with the menu option "SEQ", enables users to customize the voltage and current waveforms themselves.

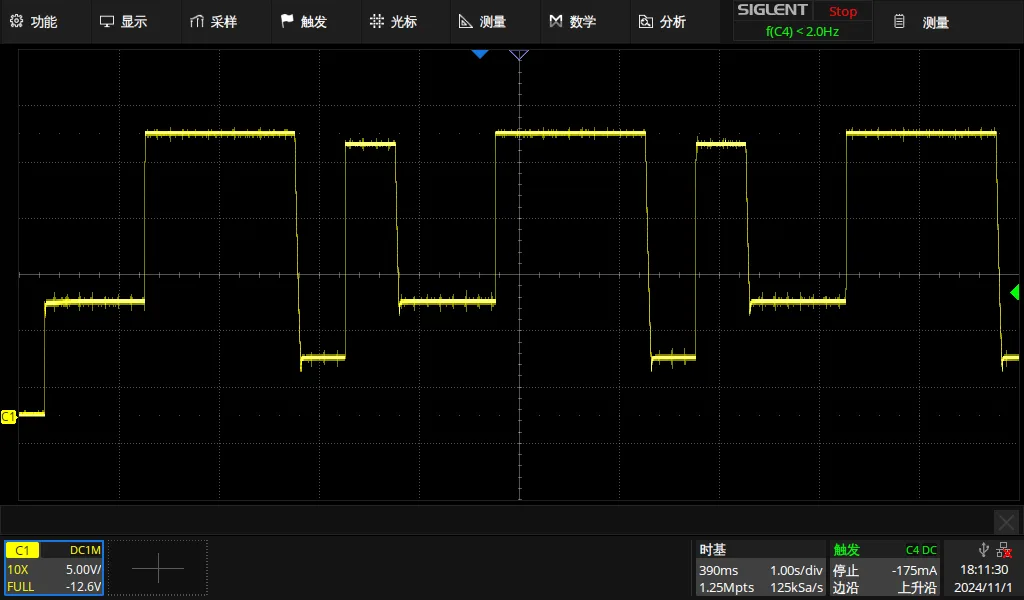

Sequence test output waveform

The FL series power supply offers 10 sequence files, with each file supporting up to 100 operation steps. Within the operation steps, you can set voltage settings, current settings, and running time. It supports "cycle count" and "linked files" attributes. "Cycle count" can control the number of times the sequence runs in a loop; setting it to 0 indicates an infinite loop. "Linked files" enables running between different files in a linked manner. Setting it to 0 indicates no linking.

Battery charging function

The FL series is equipped with battery charging function. It allows the setting of parameters such as charging voltage, charging current, charging termination voltage, charging termination current, charging termination capacity, and charging termination time, which can fully simulate the battery charging process and effectively protect the battery.

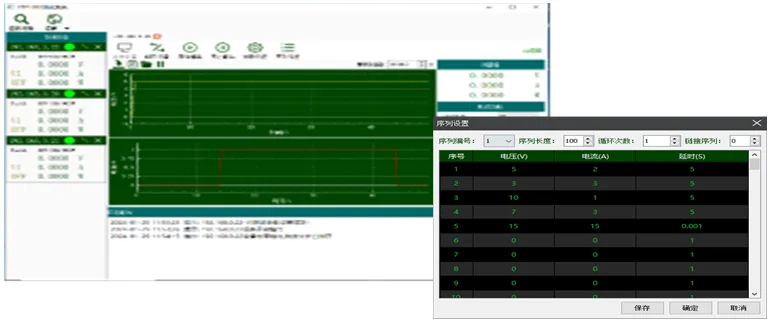

Computer graphical operation software

The FL series offers an upper computer software platform with virtual instrument capabilities. It enables remote real-time setting of test data, reading of test data, generating images, and exporting data through a computer. The functions are fully synchronized, making it convenient for testing.

Dimension

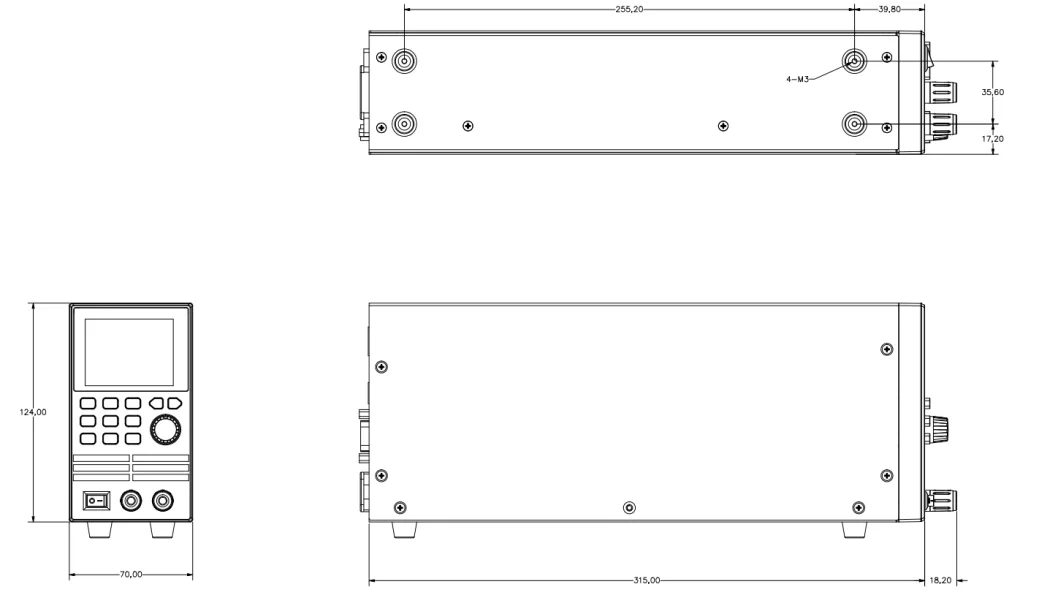

FL series Dimension（mm）

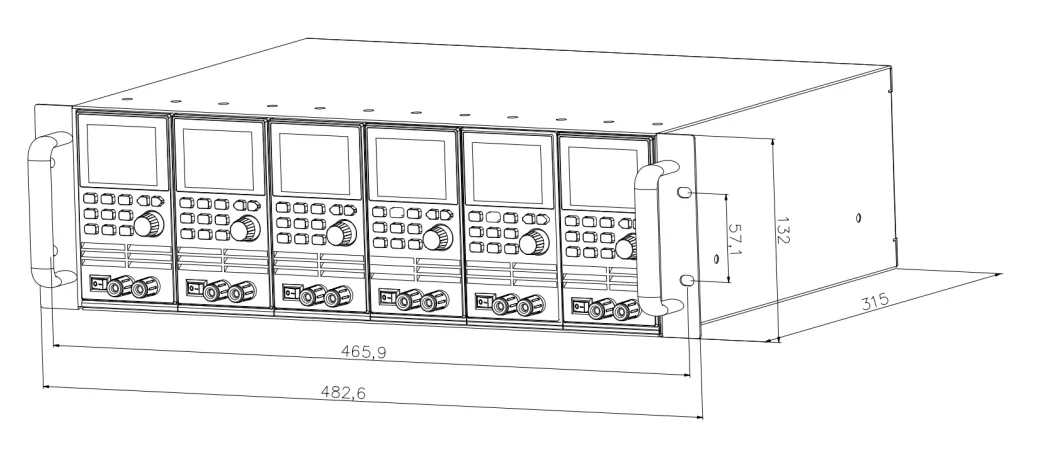

Shelf assembly Dimension（mm）

Purchase Information

|Specification table

Note:

* All specifications are subject to change without further notice;

* 1. The minimum voltage value must be ≥ 0.5% of Full Scale;

* 2. The minimum current value must be ≥ 0.5% of Full Scale;

* 3. The ripple measurement conditions are a 20 MHz measurement bandwidth, 10% to 100% of rated voltage and rated current;

* 4. The time for the rated voltage to change from 10% to 90% in the no-load state;

* 5. The time for the rated voltage to change from 10% to 90% in the full-load (resistive load) state;

* 6. The time for the rated voltage to change from 90% to 10% in the no-load state;

* 7. The time for the rated voltage to change from 90% to 10% in the full-load (resistive load) state;

* 8. Output measured at 220Vac/50Hz input, at the rated voltage and maximum power point.
