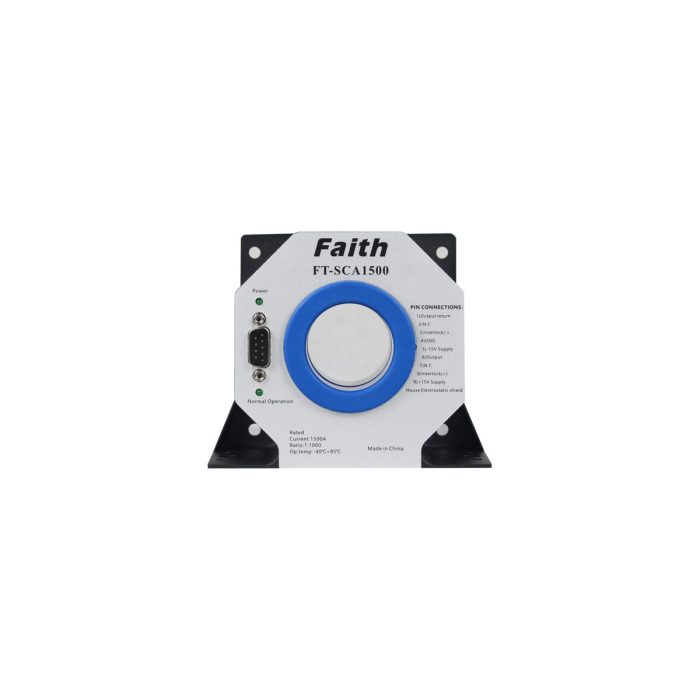

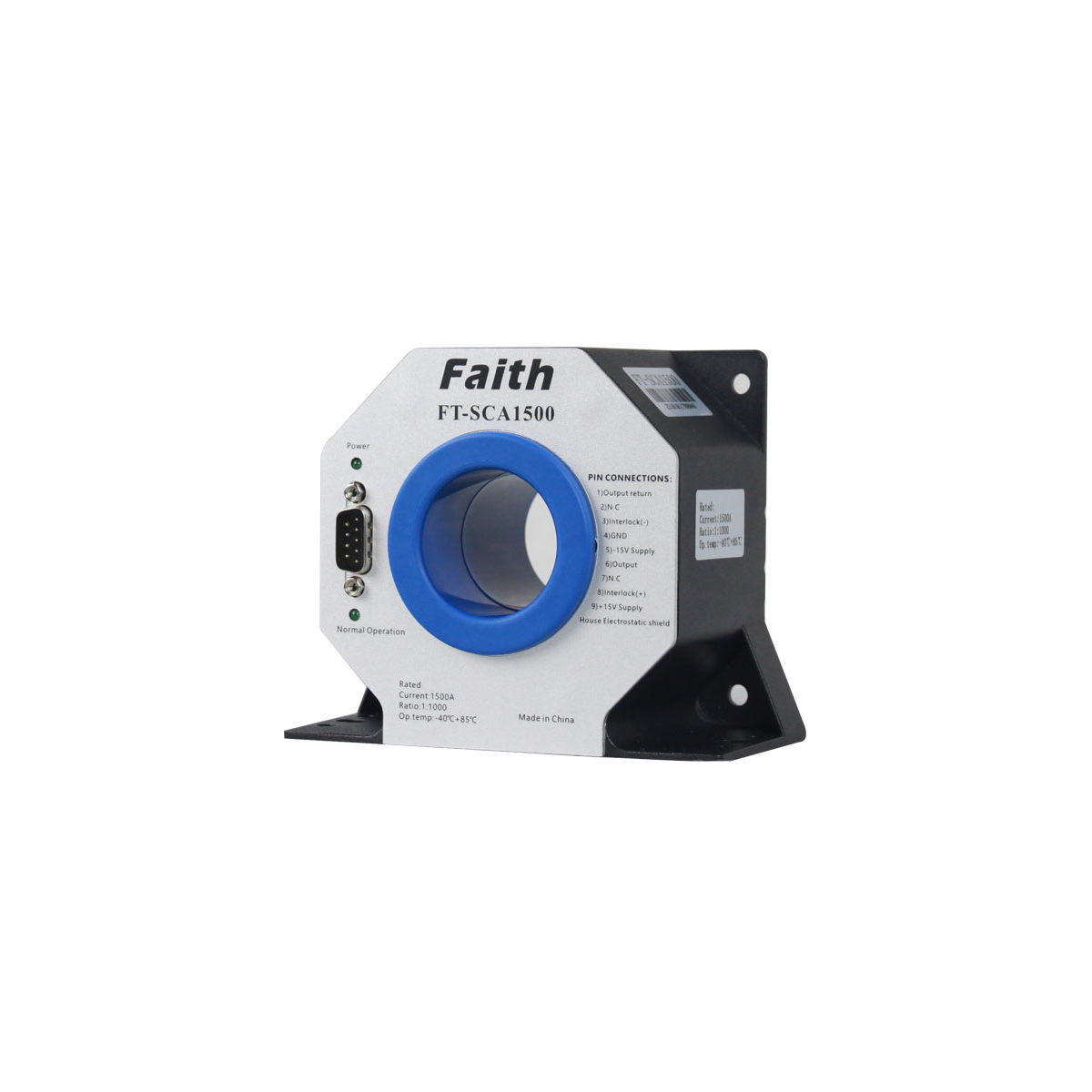

FaithTech FT_SCA Current Sensor

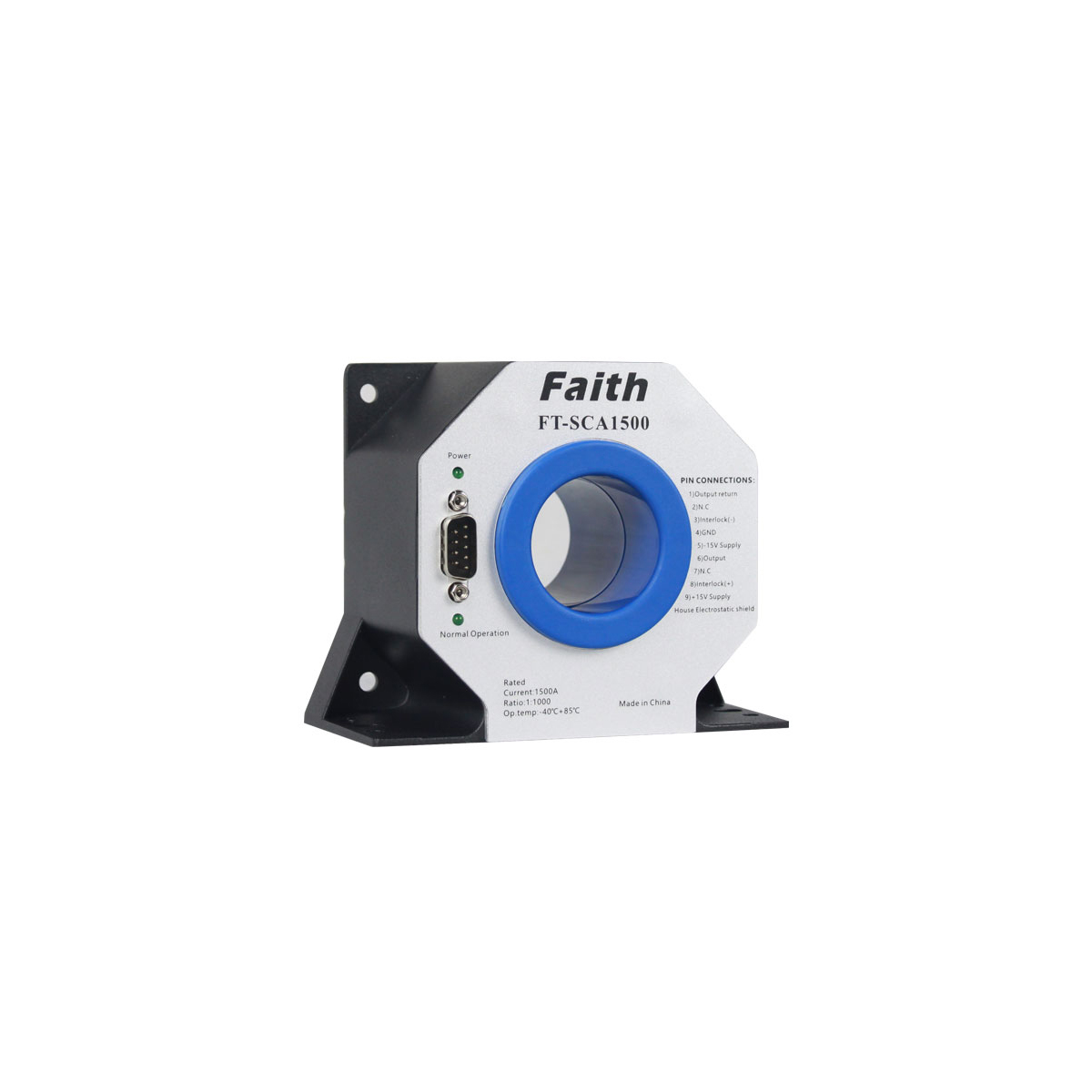

FaithTech FT_SCA Current Sensor Right
FaithTech FT_SCA Current Sensor

FaithTech FT-SCA/SCE Series High Precision Current Sensor

  • Medical equipment: scanner, MRI
  • Electric Power: converter, inverter
  • New energy: photovoltaic, wind energy
  • Automobiles: electric vehicles
  • Ship: electric driven ship
  • Measurement: verification and calibration
  • Industrial control: industrial motor drive, robot
  • Rail transit: high-speed trains, subways, trams and trolleybus
  • DC excitation system measurement

Description

FT-SCA high-precision current sensor is a current sensor that can measure DC, AC, pulse and various irregular waveforms under the condition that the primary side and secondary side are completely isolated. FT-SCA series adopts multi-point zero flux technology to control the excitation flux, DC flux and AC flux in a zero flux closed loop, and realizes the detection of high-frequency ripple by constructing a high-frequency ripple induction channel, so that the sensor has relatively high gain and measurement accuracy in the full bandwidth range.

The FT-SCA series is mainly used in the fields of metrological verification and calibration that require high accuracy, as well as power quality analysis, power analyzer, medical treatment, aerospace, rail transit and other fields that require high sensitivity, stability and reliability.

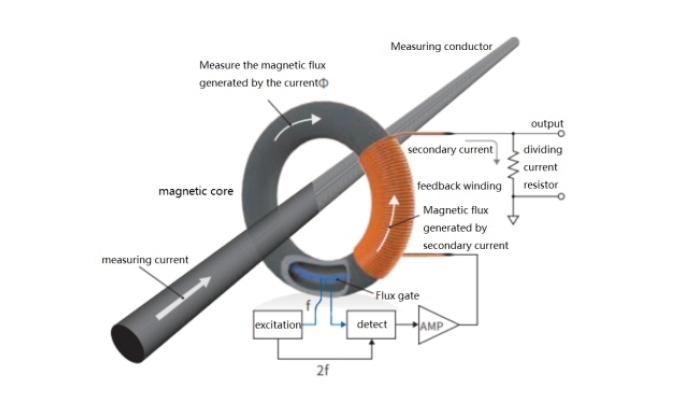

Multipoint zero magnetic flux technology

The magnetic core reaches the magnetic balance state by excitation. When the measuring current flows through the wire, breaking the magnetic balance, the flux gate will generate the excitation current, and the signal will drive the compensation coil after amplification, so that the magnetic flux in the magnetic core and the magnetic flux generated by the measuring current will cancel each other and remain in the "zero" state, that is, the so-called "zero flux" state.

How FaithTech Current Sensor works

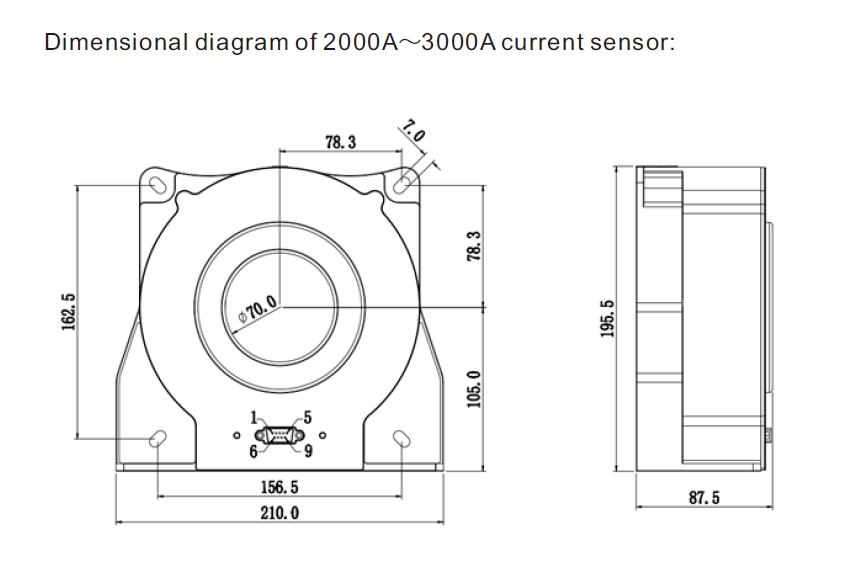

Dimension

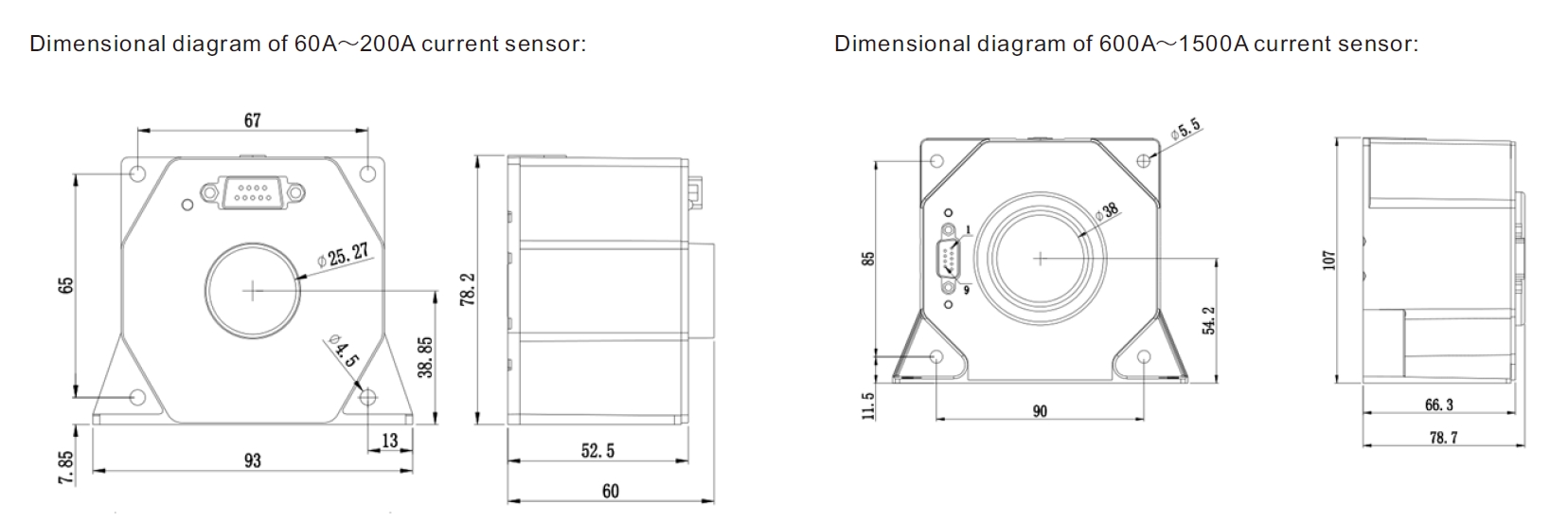

FaithTech FT_SCA Current Sensor Dimension 1











Model FT-SCA60 FT-SCA200 FT-SCA600 FT-SCA1000 FT-SCA1500 FT-SCA5000 FT-SCA10000
Electrical performance
Rated DC current of primary side（IPN_DC） ±60A dc ±200A dc ±600A dc ±1000A dc ±1500A dc ±5000A dc ±10000A dc
Rated AC current of primary side*1（IPN） 42.4A ac 141A ac 424A ac 707A ac 1060A ac 3535A ac 7072A ac
Primary side overload current*2（IPM）(≤1min) ±72A dc ±240A dc ±720A dc ±1300A dc ±1800A dc ±5500A dc ±11000A dc
Working voltage（VC） ±14.2V～±15.8V 220V ac 220V ac
Power consumption current（IPWR） ±30mA～±150mA ±30mA～±270mA ±30mA～±510mA ±30mA～±830mA ±30mA～±1630mA 210mA ±100mA～±2500mA
Current ratio (KN) (input: output) 600:1 1000:1 1500:1 1500:1 1000:1 5000:1 5000:1
Rated output current (ISN) ±0.1A ±0.2A ±0.4A ±0.67A ±1.5A ±1A ±2A
Measuring resistance（RM） 0Ω～60Ω，Nominal value 20Ω 0Ω～30Ω，Nominal value 10Ω 0Ω～5Ω，Nominal value 2.5Ω 0Ω～3Ω，Nominal value 1.5Ω 0Ω～2Ω，Nominal value 1Ω 0Ω～1.5Ω，Nominal value 1Ω 0Ω～1Ω，Nominal value 0.5Ω
Precision measurement
Accuracy *3（XG） 10ppm 50ppm 100ppm
Linearity（εL） 2ppm 20ppm
Temperature stability（TC） 0.1ppm/K 0.1ppm/K
time-stability（TT） 0.2ppm/month 0.2ppm/month
Power supply anti-interference（TV） 1ppm/V 1ppm/V
Zero offset current（IO） 1ppm@25ºC 1ppm@25ºC
Ripple current（IN） 0.5ppm(DC-10Hz) 0.5ppm(DC-10Hz)
Dynamic response time（tr） 1us(di/dt=100A/μs, up to 90%IPN) 1us(di/dt=100A/μs,上升至90%IPN)
Current change rate（di/dt）(MIN) 100A/us 100A/us 100A/us 200A/us 100A/us 100A/us 200A/us
Frequency bandwidth（-3dB） DC-500kHz DC-50kHz DC-20kHz
Zero offset current（IOT） ±5μA ±10μA
Security features
Isolation voltage/between primary side and secondary side（VD） 5kV（50Hz,1min）
Transient isolation withstand voltage/between primary side and secondary side（VW） 10kV（50us）
General characteristic
Operating temperature range（TA） -40℃～85℃
Storage temperature range（TS） -40℃～85℃
Relative humidity 20%～80%RH
Threading hole diameter（mm） φ25 φ25 φ38 φ38 φ38 φ160 φ120
Weight 470g±50g 480g±50g 1150g±80g 1150g±80g 1150g±80g 28kg±2.25kg 28kg±2.25kg



Model FT-SCE60 FT-SCE200 FT-SCE600 FT-SCE1000 FT-SCE1500
Electrical performance
Rated DC current of primary side（IPN_DC） ±60A dc ±200A dc ±600A dc ±1000A dc ±1500A dc
Rated AC current of primary side*1（IPN） 42.4A ac 141A ac 424A ac 707A ac 1060A ac
Primary side overload current*2（IPM）(≤1min) ±72A dc ±240A dc ±720A dc ±1300A dc ±1800A dc
Working voltage（VC） ±14.2V～±15.8V
Power consumption current（IPWR） ±30mA～±150mA ±30mA～±270mA ±30mA～±510mA ±30mA～±830mA ±30mA～±1630mA
Current ratio (KN) (input: output) 600:1 1000:1 1500:1 1500:1 1000:1
Rated output current (ISN) ±0.1A ±0.2A ±0.4A ±0.667A ±1.5A
Measuring resistance（RM） 0Ω～60Ω，Nominal value 10Ω 0Ω～25Ω，Nominal value 10Ω 0Ω～5Ω，Nominal value 2Ω 0Ω～3Ω，Nominal value 1.5Ω 0Ω～2Ω，Nominal value 1Ω
Precision measurement
Accuracy *3（XG） 200ppm
Linearity（εL） 20ppm
Zero offset current（IO） ±5uA@25ºC
Dynamic response time（tr） 1us(di/dt=100A/μs, up to 90%IPN)
Current change rate（di/dt）(MIN) 200A/us
Frequency bandwidth（-3dB） DC-100kHz
Zero offset current（IOT） ±10μA
Security features
Isolation voltage/between primary side and secondary side（VD） 5kV（50Hz,1min）
Transient isolation withstand voltage/between primary side and secondary side（VW） 10kV（50us）
General characteristic
Operating temperature range（TA） -40℃～85℃
Storage temperature range（TS） -40℃～85℃
Relative humidity 20%～80%RH
Threading hole diameter（mm） φ26 φ26 Φ42 φ38 φ38
Weight 370g±50g 420g±50g 1000g±80g 1100g±80g 1150g±80g

Feature

  • Adopt multi-point zero flux technology, with high precision, small zero offset and high linearity;
  • Current range: ± 60A/± 200A/± 600A/± 1000A/± 1500A/± 2000A/± 3000A;
  • High precision, current precision 10ppm;
  • With temperature compensation technology, the temperature stability is 0.1ppm/K;
  • AC/DC universal, which can measure AC, DC and pulse current;
  • Primary and secondary side isolation measurement;
  • No warm-up time;
  • Wide band measurement, with the maximum measurement bandwidth of 500kHz;
  • Low response time, minimum dynamic response time 1us

Model Options

Model Rated input Primary overload current transformation ratio Rated output of secondary side Bandwidth Accuracy Linearity Working power supply Diameter of hole
（A） （A） （A） （kHz） （ppm） （ppm） （V） （mm
FT-SCA60 ±60A ±72A 600:1 ±0.1A 500 10 2 ±15Vdc±5% φ25
FT-SCA200 ±200A ±240A 1000:1 ±0.2A 500 10 2 ±15Vdc±5% φ25
FT-SCA600 ±600A ±720A 1500:1 ±0.4A 500 10 2 ±15Vdc±5% φ38
FT-SCA1000 ±1000A ±1200A 1500:1 ±0.67A 500 10 2 ±15Vdc±5% φ38
FT-SCA1500 ±1500A ±1800A 1000:1 ±1.5A 500 10 2 ±15Vdc±5% φ38
FT-SCA2000 ±2000A ±2200A 2000:1 ±1A 100 50 20 ±15Vdc±5% φ70
FT-SCA3000 ±3000A ±3300A 3000:1 ±1A 100 50 20 ±15Vdc±5% φ70
FT-SCA5000 ±5000A ±5500A 5000:1 ±1A 50 50 20 220Vac±10% φ160
FT-SCA8000 ±8000A ±8800A 4000:1 ±2A 50 50 20 220Vac±10% φ120
FT-SCA10000 ±10000A ±11000A 5000:1 ±2A 20 100 20 220Vac±10% φ120
FT-SCE60 ±60A ±72A 600:1 ±0.1A 100 200 20 ±15Vdc±5% φ26
FT-SCE200 ±200A ±240A 2000:1 ±0.1A 100 200 20 ±15Vdc±5% φ26
FT-SCE600 ±600A ±720A 1500:1 ±0.4A 100 200 20 ±15Vdc±5% φ42
FT-SCE1000 ±1000A ±1200A 1500:1 ±0.667A 100 200 20 ±15Vdc±5% φ38
FT-SCE1500 ±1500A ±1600A 1000:1 ±1.5A 100 200 20 ±15Vdc±5% φ38
