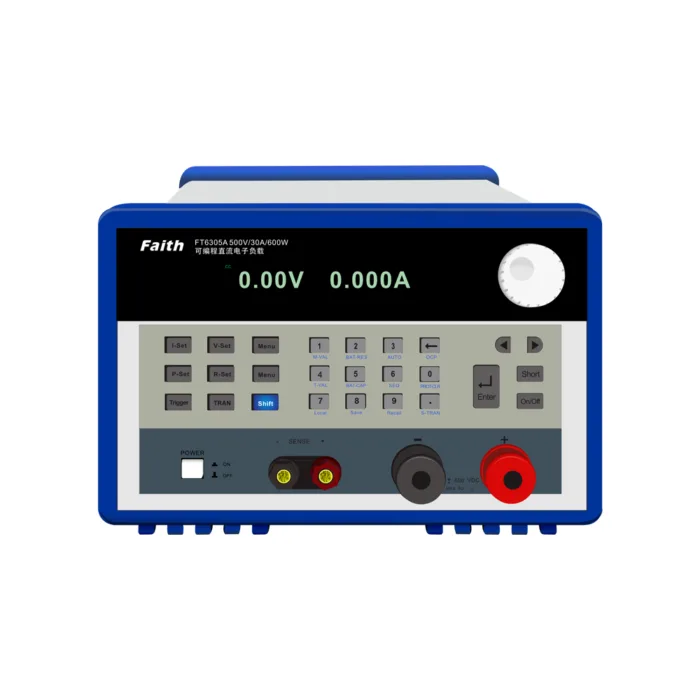

Description

Steady-state function

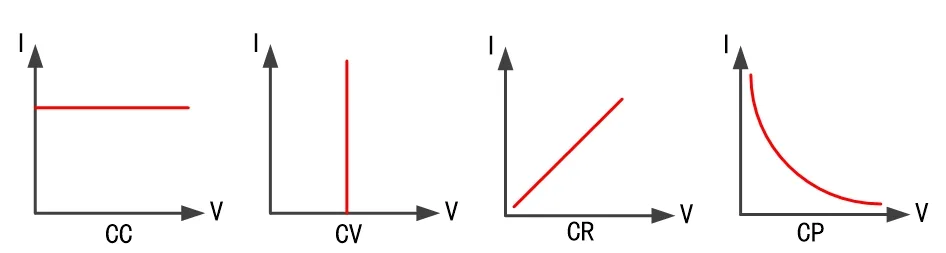

FT6300 series electronic load has four test modes of constant current, constant voltage, constant resistance and constant power to meet a wide range of test requirements. Constant current and constant resistance modes can be used to test whether the output voltage of the voltage source maintains a stable output under different load conditions. For battery chargers and adapters, constant voltage mode can change the output voltage of the charger and adapter to verify that the output current is correct.

Dynamic function

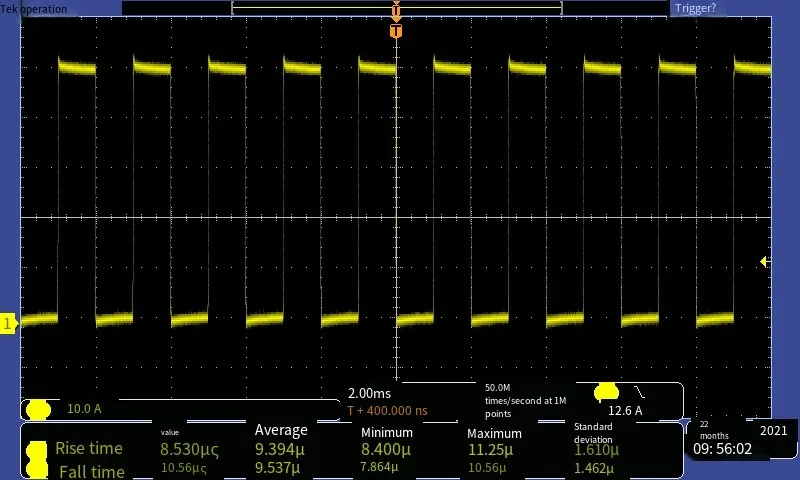

The FT6300 series of electronic loads provides programmable dynamic testing capabilities. Dynamic test function includes continuous, pulse, flip three ways, support load slope setting. The dynamic mode is used to simulate various on-load mutations and anomalies, and is suitable for testing the dynamic characteristics of the power supply, the stability of the power supply, the protection point and protection time of the battery, and the burst on-load simulation of various pulses.

Battery test function

To facilitate battery testing, the FT6300 series offers a battery test function. Battery test includes: battery internal resistance test and battery capacity test. Constant current CC mode is used to test the battery capacity, and only need to set the battery protection voltage and discharge current during the test. Load automatically records voltage, current, time, AH number, below the protection voltage, the load automatically stops testing. With software, more parameters can be tested and analyzed.

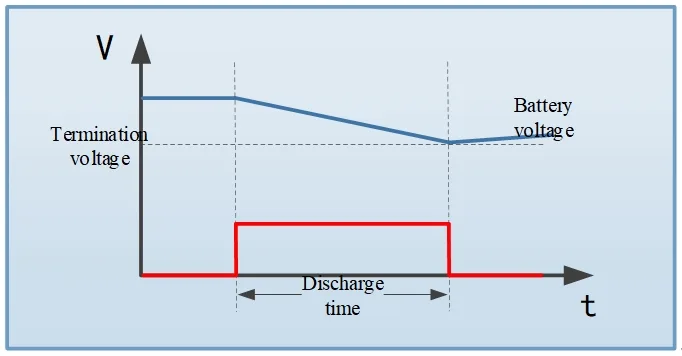

Voltage and current curve during capacity test

Automatic test

The FT6300 series features flexible automated testing. In the automatic test, CC, CV, CR, CP and other test modes are included, which can compare the test parameters with the corresponding upper and lower limits, and finally display the test results in the form of PASS or FAILED. The fully automatic operation mode can greatly improve the test efficiency.

SCPI with remote control

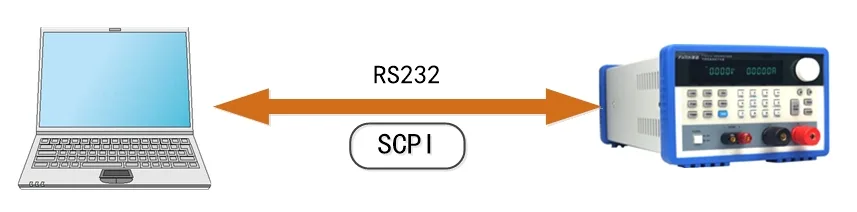

The FT6300 series supports standard SCPI commands, through which all functions of panel operations can be implemented. This provides convenience for the establishment of intelligent test platform and the secondary development of users. The FT6300 series provides easy remote control of electronic loads via the RS232 interface.

Computer graphical operation software

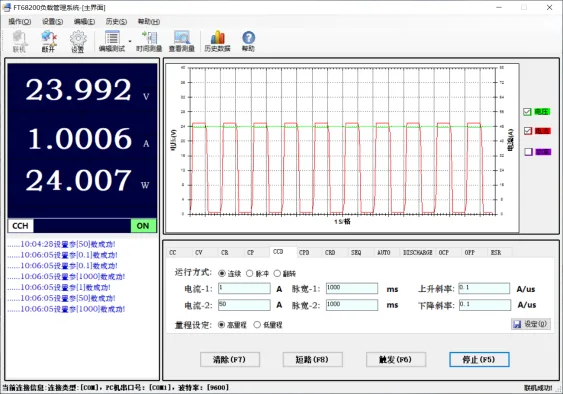

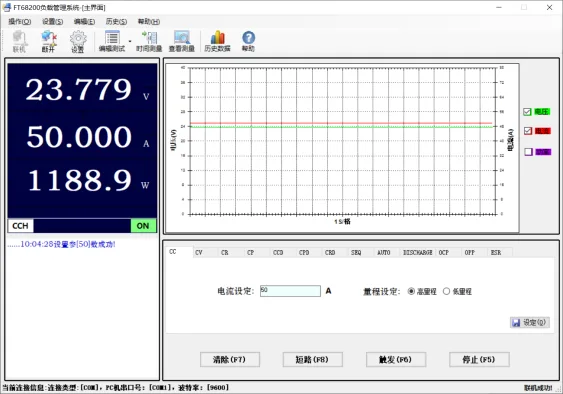

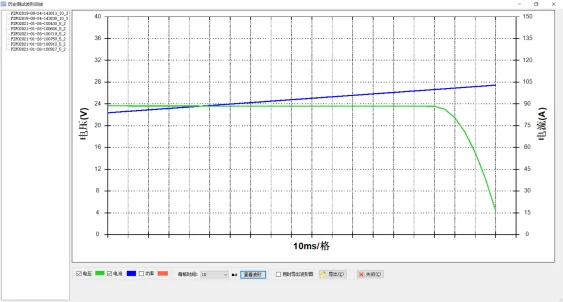

FT6300 series provides a host computer software with virtual instrument function, which can read test data in real time, generate images, export reports, print reports, etc., which is convenient for customers to use.
