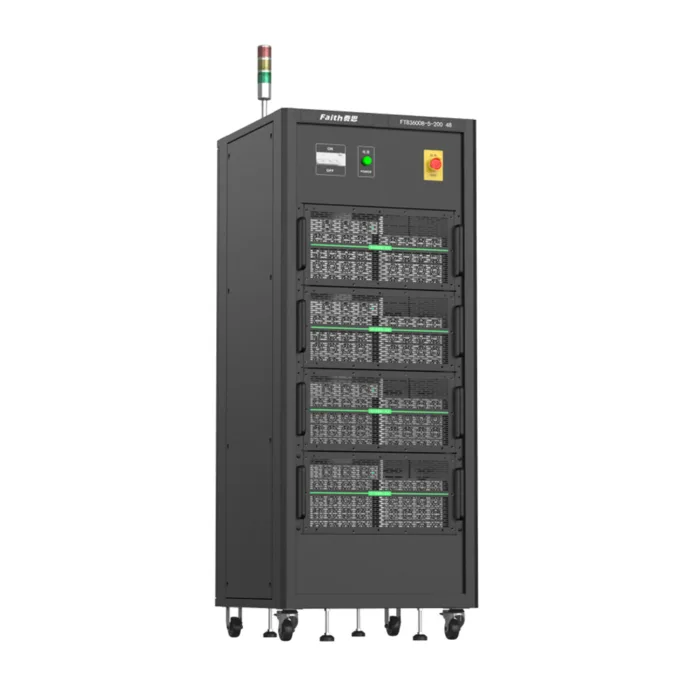

FaithTech FT8360 Series Battery charge and discharge equipment
FT8360 series battery charge and discharge equipment is a professional charge and discharge test equipment specially developed for high current/high power performance test. It is suitable for the performance test evaluation, cycle life verification, product model selection and other applications of large-capacity lithium-ion batteries and lithium-ion capacitors.
FT8360 series products adopt the latest technical solutions, with high energy conversion efficiency, high voltage and current accuracy, fast dynamic current response, multi-current range automatic current classification, high equipment power density, equipment use safety factor. Returnable high current cycle life test highlights the importance of energy conversion efficiency of equipment, which not only reduces power demand, but also reduces a lot of heat generation. It can reduce the power distribution demand for the laboratory, save the cost of running power and air conditioning, and improve the utilization rate of the experiment site.
In terms of safety, FT8360 series has multiple protection for each channel. The independent circuits are detected with redundancy to prevent over voltage of the battery cell when a single device fails, strengthening laboratory safety. In addition, the system will automatically identify and protect the inevitable human factors in the process of battery feeding and unloading.
Description
Application Field
- Battery (cell) production;
- Battery research and testing;
- Battery quality test;
- Working condition simulation test;
- Battery echelon recovery, etc.

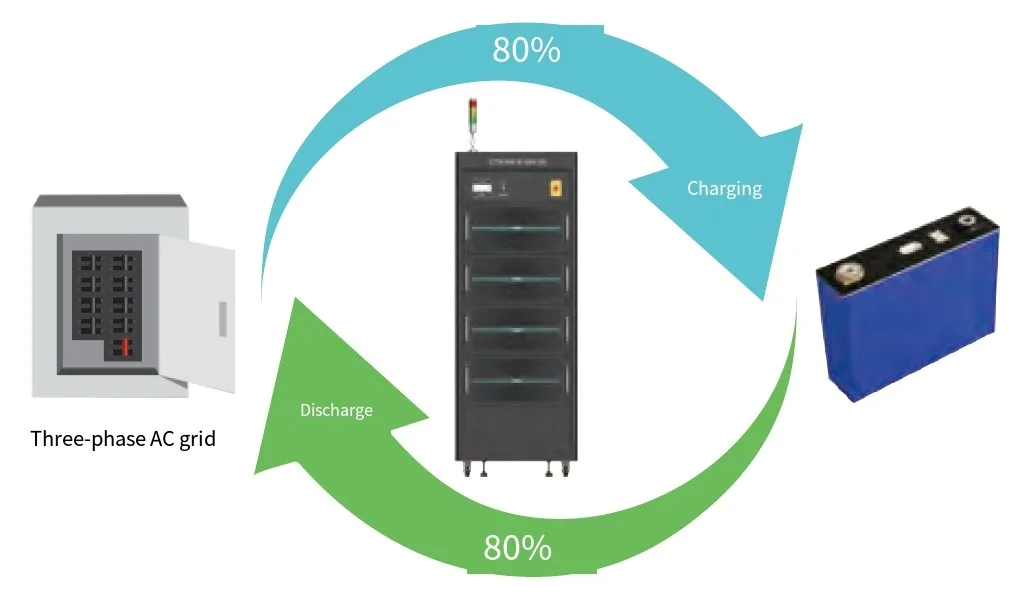

Energy Feedback
FT8360 series products have the function of feedback load, which can return the discharge energy of the tested battery to the factory Intranet for direct use, rather than dissipate it as heat. Its energy feedback conversion efficiency is as high as 80%, which can not only greatly reduce the cost of electricity for users, but also avoid the use of air conditioning and other refrigeration systems and reduce noise.
High precision measurement
The FT8360 series has high accuracy with voltage resolution as low as 0.1mV and voltage measurement accuracy of 0.03%F.S. Current measurement accuracy is 0.03%F.S. Higher measurement accuracy provides more accurate and efficient data for testing.

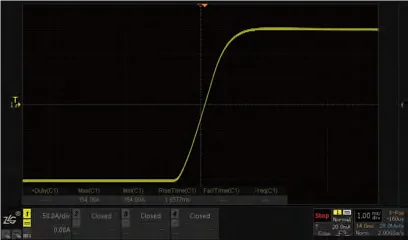

Current fast response
FT8360 series can achieve fast current response. The response time between -90% and +90% is within 3ms. The fast current response ability can simulate the actual working condition more accurately.

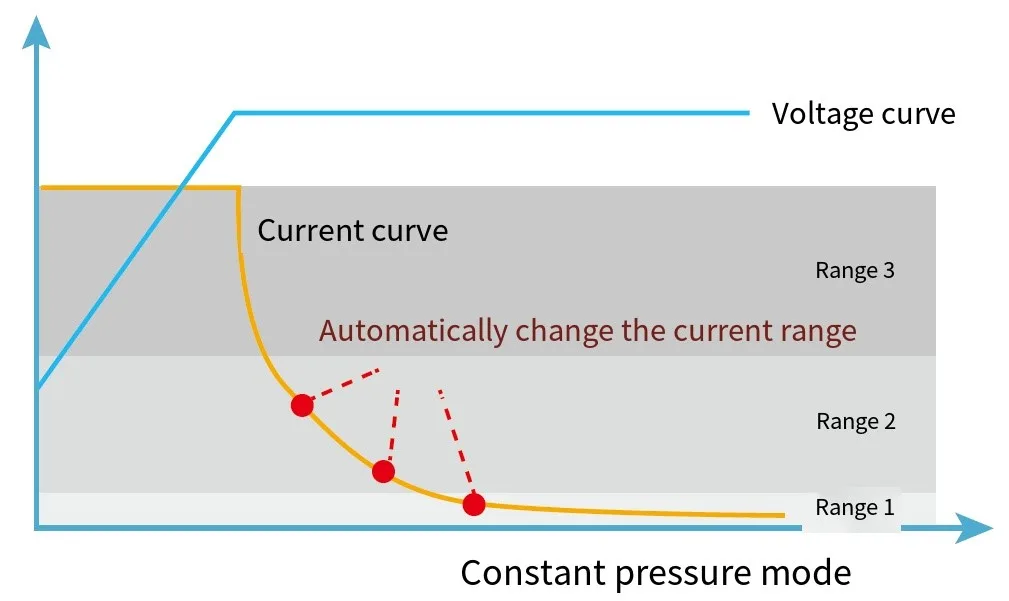

Multi-current range automatic switching
To achieve higher current measurement accuracy, FT8360 series has multiple current ranges, and each current range can be automatically switched.

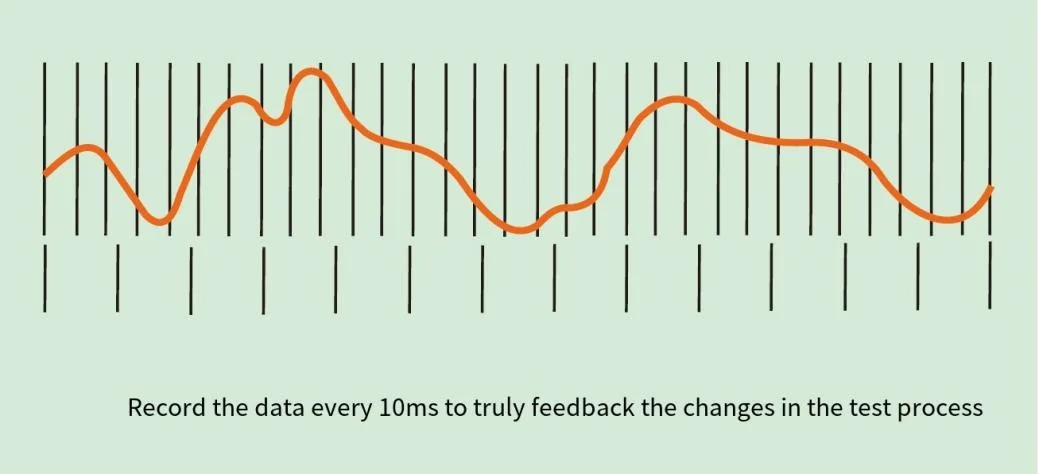

10ms Data collection interval
FT8360 series has high-speed data acquisition capability, which can realize the acquisition interval of 10ms and capture the transient changes of test data.

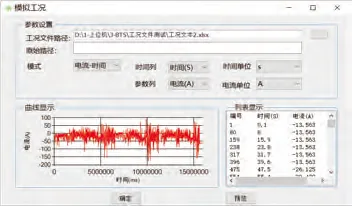

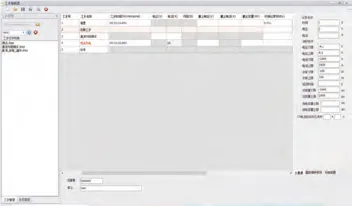

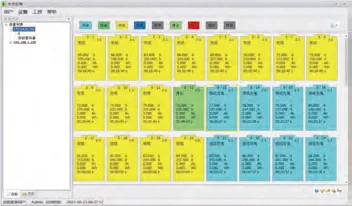

computer graphical operation software
FT8360 series provides a test software for upper computer, which can realize test step editing, centralized control, real-time reading of test data, generating images, exporting reports, printing reports, etc., which is convenient for users to use.
Specification table
| Two-way power Supply Models | FT836016-5-60 | FT836016-5-100 | FT83608-5-200 | FT83608-5-300 | FT836004-5-600 | FT836002-5-1200 |
| Number of CHANNELS | 16CH | 16CH | 8CH | 8CH | 4CH | 2CH |
| Voltage range | Charge 0V ~ 5V, discharge 1V ~ 5V | |||||
| Voltage resolution | 0.1mV (24bit) | |||||
| Voltage accuracy | Plus or minus 0.03% f.s. @ 25 ℃ plus or minus 10 ℃ | |||||
| Charge and discharge current range | ±60A | ±100A | ±200A | ±300A | ±600A | ±1200A |
| Current resolution | 0.1mA (24bit) | |||||
| Current gear | ±30A/±60A | ±30A/±50A/±100A | ±60A/±100A/±200A | ±50A/±200A/±300A | ±100A/±400A/±600A | ±200A/±800A/±1200A |
| Current accuracy | Plus or minus 0.03% f.s. @ 25 ℃ plus or minus 10 ℃ | |||||
| Power accuracy | Plus or minus 0.05% f.s. @ 25 ℃ plus or minus 10 ℃ | |||||
| Power resolution | 1mW | |||||
| Main channel fastest sampling time | 10ms | |||||
| Current response time | < 3ms (10% to ±90%F.S., battery load) | |||||
| Current switching time | < 5ms (-90%FS ~ +90%F.S., battery load) | |||||
| Charging efficiency | 81%(maximum efficiency for 2V-4.2V battery voltage), 85% (maximum efficiency for 5V battery voltage) | |||||
| Discharge efficiency | 79%(maximum efficiency for 2V-4.2V battery voltage), 82% (maximum efficiency for 5V battery voltage) | |||||
| Hardware protection | Battery backconnection protection, string protection, short circuit protection, poor contact detection protection function | |||||
| Software protection | Set safety protection conditions, including: voltage upper limit and lower limit, current upper limit and lower limit, capacity upper limit, delay time, step time, temperature, pressure, temperature tank water cooling conditions, etc. With off-line test function, power off data protection (save the current step data), call continuation protection, voltage trend abnormal protection, voltage fluctuation abnormal protection | |||||
| Charging mode | Constant current, constant voltage, constant current, constant voltage, constant power, limit follow | |||||
| Cut-off conditions | Voltage, current, work step time, capacity, temperature, pressure, custom variables | |||||
| Discharge mode | Constant current, constant power, constant resistance, constant current and constant voltage, limit follow | |||||
| Cut-off condition | Voltage, current, work step time, capacity, temperature, pressure, custom variables | |||||
| Other modes | Analog working condition, DC internal resistance test, pulse, temperature box configuration, Shelving, cycling, pause | |||||
| Cycle nesting | Has nested loops and supports a minimum of 5 layers of nesting | |||||
| Auxiliary voltage protection channel | Accuracy ±1mV(25℃+10℃), 10ms sampling rate, -8V ~ 8V, leakage current < 0.03uA, input impedance > 200MΩ, each main channel is configured with one | |||||
| Auxiliary pressure protection channel | Accuracy < 0.2%F.S.(25℃±10℃),0 ~ 10T/0 ~ 3mV/V, each main channel is configured with a maximum of one | |||||
| Auxiliary temperature protection channel (NTC or thermocouple) |
(NTC type) accuracy ±0.5℃(25℃+20℃), -40℃ ~ 125℃, 500ms sampling rate, each main channel is configured with a maximum of 4 NTC temperature detection | |||||
| (Thermocouple type) accuracy ±1 ° C (25 ° C +20 ° C), -70 ° C ~ 250 ° C, 500ms sampling rate, each main channel is configured with a maximum of 3 K or T thermocouples | ||||||
| Mechanical dimensions (W * H * D) | 630mm*278mm*520mm | |||||
| Mechanical weight | < 65kg | |||||
Feature
- Modular design, each module for an independent channel;
- Each channel can detect different types of batteries, and completely independently work in different modes, without affecting each other;
- High measurement accuracy, voltage, current accuracy of 0.03%F.S.;
- With multiple current range, can automatically switch the range;
- With fast current response, response time ≤3ms;
- The discharge energy can be recovered, the efficiency is up to 80%;
- High-speed data recording, interval time 10ms;
- With multi-channel parallel function, parallel current up to 2400A;
- The channel has complete software and hardware multilevel protection.
- Multi-function recorder and thermostatic/wet box can be integrated;
- Professional testing software to support data reporting and data analysis.
