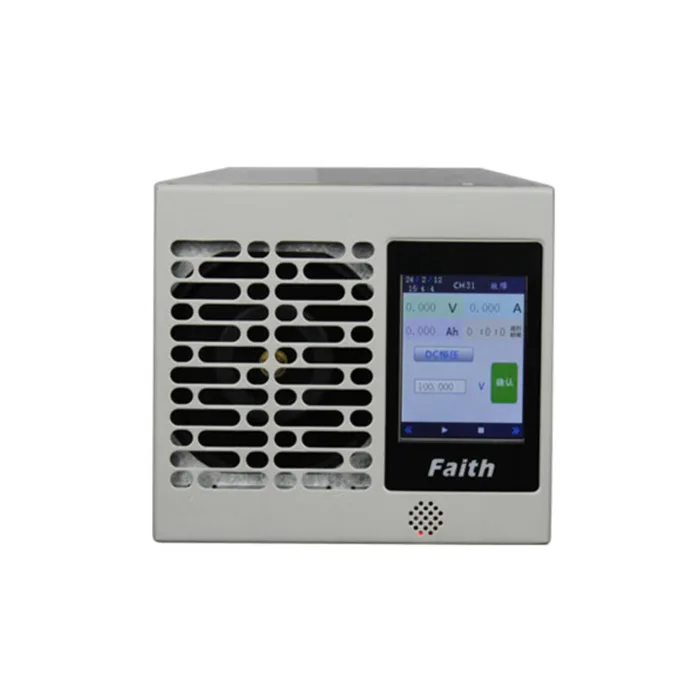

FaithTech FTDM Series modular bidirectional test power source
modular/ bidirectional / 6kW
FTDM series modular bidirectional test power supply adopts the latest optimized modular design and advanced control algorithm to realize multi-machine parallel, and the power level of parallel system covers 6kW ~ 1MW. With LCD local monitoring and BMS system remote scheduling function, excellent load adaptability and power grid adaptability. Independent air duct design makes it effectively cope with a variety of complex application environment, the system is safer and more reliable, economic and environmental adaptability. To achieve intelligent forward and reverse operation, seamless switching, can meet the application scenarios of bidirectional energy transformation. At the same time, the product comes with off-grid switching function, the switching time does not exceed 10ms.
FTDM series is widely used in new energy vehicle motor, electronic control test, power battery pack charge and discharge test, power electronic test and other fields.
Description
Application Filed
- Charging pile test and aging
- Energy storage converter (PCS), microgrid equipment production and development
- Motor system, electronic control system test
- Power battery, energy storage equipment testing

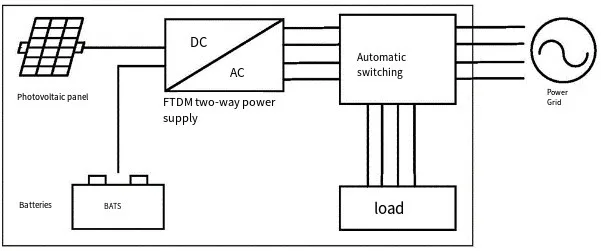

off-grid automatic switching
FTDM series integrates off-grid and grid-connected switching circuit, which can realize the function of off-grid automatic switching.
Seamless switching between DC power supply and feedback load
Realizes the source and load current mode conversion, so that the output current and the absorbed current can be quickly and continuously switched seamlessly, effectively avoiding voltage or current overrush, and is widely used in battery, battery packaging, battery protection board and other energy storage equipment testing.
The staggered parallel technology is adopted
FTDM series adopts the interleaving and parallel technology, which can improve the change frequency of the current and voltage at the input and output terminals, and reduce the current and voltage ripple.

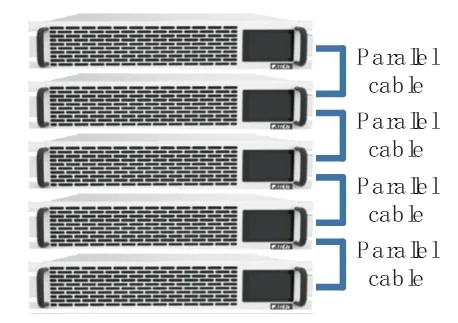

multi-machine parallel function
FTDM series adopts advanced control algorithm to realize multi-machine parallel, and the power level of parallel system can cover 1MW, which greatly expands the application output range of power supply. Parallel function in addition to the automatic load between the power supply, to maintain the output value is consistent, but also to ensure the output slope curve or waveform is consistent. In the parallel state of the host, the power supply screen displays the total voltage, current and power values. Each slave automatically equalizes current and sums automatically.
Dimension drawing

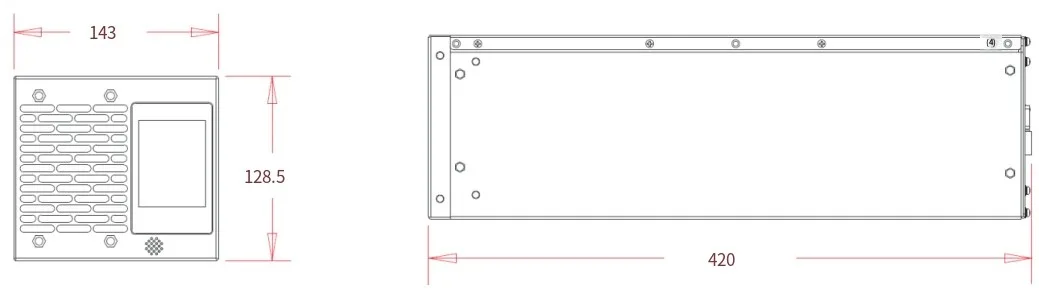

6kW dimension drawing

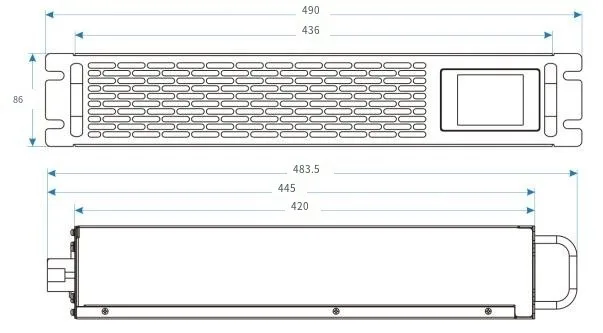

15kW dimension drawing

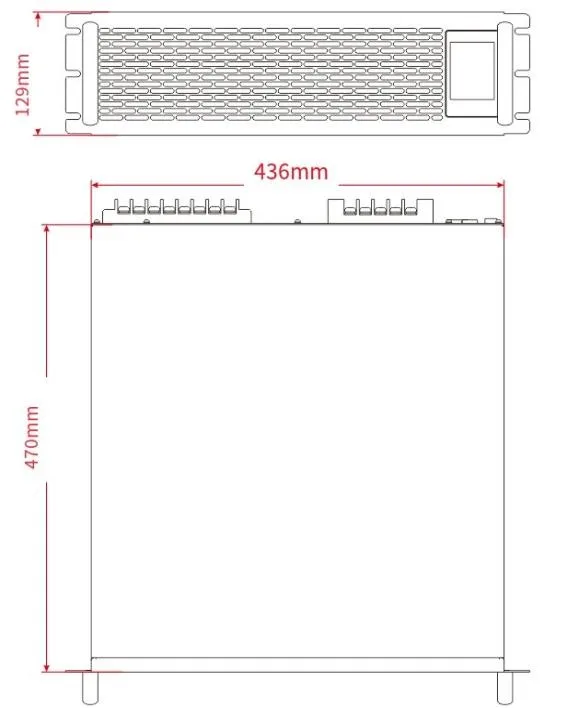

30kW, 60kW dimension drawing
| Specification Table -1 | |||||
| Model number | FTDM006-100-100 | FTDM006-450-60 | FTDM018-100-300 | FTDM018-450-180 | FTDM015-950-50 |
| Ac side parameters | |||||
| Voltage system | Single-phase three-wire system | Single-phase three-wire system | Three-phase five-wire system | Three-phase five-wire system | Three-phase five-wire system |
| Rated voltage | 220Vac±15% | 220Vac±15% | 380Vac±15% | 380Vac±15% | 380Vac±15% |
| Rated frequency and range | 45 ~ 65Hz (adaptive 50/60Hz grid) | ||||
| Power factor | 0.99 | ||||
| Harmonic content THDi | 5% or less | 3% or less | |||
| Dc side parameters | |||||
| Voltage range | 2.5 Vdc - 100 Vdc | 10Vdc-450Vdc | 2.5 Vdc - 100 Vdc | 10Vdc-450Vdc | 50 to 950Vdc |
| Current range | ±100A | ±60A | ±300A | ±180A | ±50A |
| Voltage accuracy | 0.1% F.S. | ||||
| Current accuracy | 0.1% F.S. | ||||
| Basic characteristics | |||||
| Ac/DC starting function | With | ||||
| Forward and backward switching time | ≤10ms | ||||
| Peak efficiency | 92% | 93.50% | |||
| Communication interface | CAN, RS485, Ethernet | ||||
| Overall dimensions (W*H*D) | 143 * 128.5 * 420 mm | 436*129*420mm | 436*86*420mm | ||
| Weight (kg) | 8kg | 25kg | 16kg | ||
| Environmental conditions | |||||
| Operating temperature range | - 20 ℃ ~ + 45 ℃ | ||||
| Storage temperature | -40 °C to +70°C | ||||
| Operating humidity range | 30% to 90%rh (no condensation) | ||||
| Storage humidity | 20% to 95%rh (no condensation) | ||||
| Cooling method | Forced air cooling | ||||
| Altitude | 3000m | ||||
| Level of protection | IP20 | ||||
| Noise | ≤70dB | ||||
| Safety characteristics | |||||
| Safety specification standards | Refer to 18487.1 | ||||
| Withstand voltage: Input & Output -PE | 3535Vdc | ||||
| Withstand voltage: Input & Output -CAN | 2828Vdc | ||||
| Surge: Input & Output -PE | 6kV | ||||
| EMC characteristics | Reference 33008.1 | ||||
| Radiation | CLASS A | ||||
| ESD | Harsh Rating 3 | ||||
| EFT | Draconian Rating 3 | ||||
| Rf immunity | Harshness Rating 3 | ||||
| Specification Table -2 | ||
| Model Number | FTDM030-950-100 | FTDM060-1000-88 |
| Ac side parameters | ||
| Voltage system | Three-phase five-wire system | |
| Rated voltage | 380Vac±15% | |
| Rated frequency and range | 50/60Hz | |
| Power factor | 0.99 | |
| Current range | ±45A | ±92A |
| Harmonic content THDi | 3% or less | |
| Dc side parameters | ||
| Voltage range | 50Vdc-950Vdc | 680Vdc-1000Vdc |
| Current range | ±100A | ±88A |
| Voltage accuracy | 0.1% + 0.1 F.S. | |
| Current accuracy | 0.1% + 0.1 F.S. | |
| Basic characteristic | ||
| Ac/DC starting function | With | |
| Forward and backward switching time | ≤10ms | |
| Peak efficiency | 95% | 97% |
| Communication interface | CAN, RS485, Ethernet | |
| Overall dimensions (W*H*D) | 443*129*470mm | |
| Weight (kg) | 25kg | |
| Environmental conditions | ||
| Operating temperature range | - 20 ℃ ~ + 45 ℃ | |
| Storage temperature | -40 °C to +70°C | |
| Operating humidity range | 30% to 90%rh (no condensation) | |
| Storage humidity | 20% to 95%rh (no condensation) | |
| Cooling method | Forced air cooling | |
| Altitude | 3000m | |
| Class of protection | IP20 | |
| Noise | ≤70dB | |
| Safety characteristics | ||
| Safety specification standards | Refer to 18487.1 | |
| Withstand voltage: Input & Output -PE | 3535Vdc | |
| Withstand voltage: Input & Output -CAN | 2828Vdc | |
| Surge: Input & Output -PE | 6kV | |
| EMC characteristics | Reference 33008.1 | |
| Radiate | CLASS A | |
| ESD | Harsh Rating 3 | |
| EFT | Draconian Rating 3 | |
| Rf immunity | Harshness Rating 3 | |
| MTBF | 100000hrs | |
Feature
- Ultra-high power density, up to 3U/60kW;
- Intelligent forward and reverse operation, seamless switching between DC power supply and feedback load;
- Integrated off-grid and grid-connected switching function;
- Soft switch design, low loss and high efficiency;
- Power factor > 0.99;
- High dynamic response, full load switching time as low as 10ms;
- With output programmable function, can simulate a variety of power and load characteristic curve;
- Modular design, easy to maintain, support parallel expansion;
- Wide operating temperature range -20℃ ~ 45℃;
- The output voltage range is wide, the precision is high, the dynamic response is fast;
- DSP design, realize full digital control;
- Touch display operation control, simple and intuitive.
- Interleaved parallel technology is adopted to reduce ripple current;
- Multi-dimensional intelligent fan regulation technology to reduce power consumption and noise.
