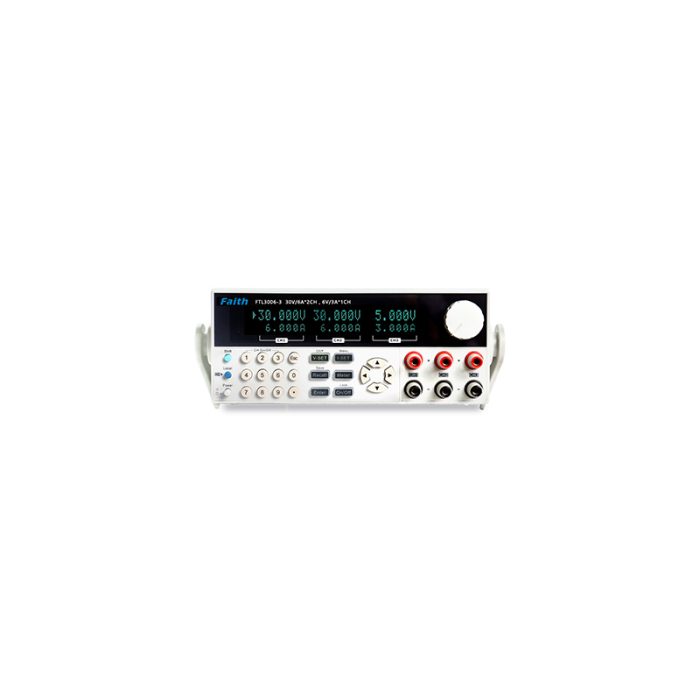

FaithTech FTL3000 MultiChannel Bench DC Power Supply

FaithTech FTL 3000 Series bench linear triple channel DC power supply

up to 540 W

FTL 3000 series multichannel programmable Bench linear DC power supply provides high resolution, high accuracy and high stability. It also provides over voltage and over heat protection. It provides series and parallel operation modes with resolution up to 1mV/1mA.

Description

FTL 3000 series multichannel programmable Bench linear DC power supply provides high resolution, high accuracy and high stability. It also provides over voltage and over heat protection. It provides series and parallel operation modes with resolution up to 1mV/1mA.



Size :

FTL3003-3/FTL3006-3/FTL6003-3

Bare machine size: 255(W)*110(H)*380(D)mm

Net weight: 8.5 kg



FTL3003-5X/3005-5X/6003-5X/3010-4X

Bare machine size: 480(W)*142(H)*370(D)mm

Net weight: 24.3 kg





Prameters table-2 :

Specifications FTL3003-5X FTL3005-5X FTL6003-5X FTL 3010-4X
Rated output voltage 0~30V*5CH 0~30V*5CH 0~60V*5CH 0~30V*4CH
Rated output current 0~3A*5CH 0~5A*5CH 0~3A*5CH 0~10A*4CH
Variable pressure way Linear power supply
Rate of load regulation Voltage ≤0.02%+5mV
Current ≤0.02%+5mA ≤0.02%+10mA
Power supply

regulation rate

 Voltage ≤0.02%+5mV
Current ≤0.02%+5mA ≤0.02%+10mA
Setting value

resolution

 Voltage 1mV
Current 0.1mA 1mA
Accuracy of setting

（25℃±5℃）

 Voltage ≤0.05%+5 bytes
Current ≤0.05%+2mA
Read back resolution Voltage 1mV
Current 0.1mA 1mA
Read back accuracy

（25℃±5℃）

 Voltage ≤0.05%+5 bytes
Current ≤0.05%+2mA
Temperature

coefficient

 operating environment 0 ～ 40 ℃ ≤ 80%RH
Storage environment -15 ～ 70 ℃ ≤ 80% RH
Interface Standard RS232
SIZE（W*H*D) mm 480*142*370
NW Kg 24.3





Feature

■ 2U half-rack instrument delivers up to 540 W of power with low ripple and noise, or 180 W per channel;

■ Linear type high resolution, high precision (1mV/1mA), high stability DC power supply;

■ Capability to do series or parallel, or tracking among the channels;

■ Monitor the voltage and current output in real time for all channels;

■ All channels are individually controllable;

■ Save and recall up to 40 groups of V/I setups;

■ Voltage remote sense compensation;

■ Output timer (0.1 ~ 3600 seconds);

■ Overvoltage, overtemperature protections;

■ Standard RS232, USB, support SCPI commands;

■ Intelligent fan control, reduces noise.

Model Options

Model FTL3003-3 FTL3006-3 FTL6003-3 FTL3003-3X FTL3006-3X FTL6003-3X
Rated Output Voltage 0...30V*2/0...6V*1 0...30V*2/0...6V*1 0...60V*2/0...6V*1 0...30 V* 3 0...30 V* 3 0...60 V* 3
Current 0...3 A* 3 0...6A*2/0...3A*1 0...3 A* 3 0...3 A* 3 0...6 A* 3 0...3 A* 3
Load Regulation Voltage ≤0.01%+3mV
Current ≤0.01%+3mA
Line Regulation Voltage ≤0.01%+3mV
Current ≤0.01%+3mA
Set Resolution Voltage 1mV
Current 1mA
Readback Resolution Voltage 1mV
Current 1mA
Set Accuracy Voltage ≤0.03%+10mV
Current ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA
Readback Accuracy Voltage ≤0.03%+10mV
Current ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA ≤0.1%+5mA ≤0.1%+8mA ≤0.1%+5mA
Ripple Noise Voltage ≤2mVrms
Current ≤5mArms
Serial/Parallel Set Accuracy Voltage ≤0.02%+5mV ≤0.02%+10mV ≤0.02%+5mV ≤0.02%+10mV ≤0.02%+10mV ≤0.02%+5mV
Current ≤0.1%+30mA
Memory Save/Call 40 Goups of Setups
Function Timing power off
Timer Range 0.1 s~ 3600 s
Resolution 0.1 s
Work Temp. 0 ~ 40℃
Dimension （W* H* D) mm 255*110*380 255*110*380 255*110*380 255*110*480 255*110*480 255*110*480
Carton(W*H*D) mm 325*210*475 325*210*475 325*210*475 325*210*575 325*210*575 325*210*575
N.W. kg 8.5 8.5 8.5 11 11 11
G.W. kg 10 10 10 13 13 13
