Description

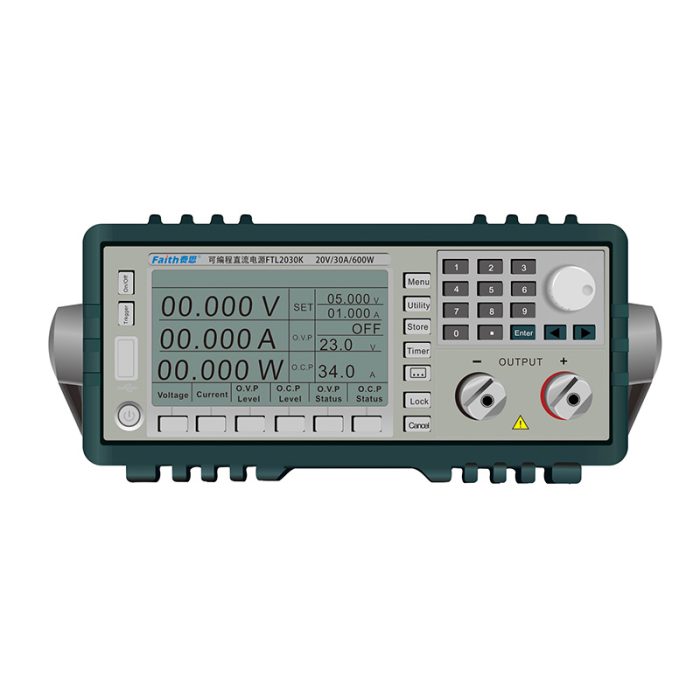

FTL series is a high performance, multi-function, medium and small power programmable DC linear power supply. The product is stable and mature, and has comprehensive protection functions such as overload, polarity reverse connection, overvoltage, overcurrent and overtemperature, which can keep the power supply and load safe under unstable environment. FTL HAS < 0.01% adjustment rate, < 1mVrms ripple and noise and good transient performance, suitable for applications like current surges. The FTL series is suitable for both high index laboratory use and high performance test system use.

Self-adaptive CV or CC state

The FTL series power supply is self-adaptive to constant voltage or constant current output state according to the load. The power supply automatically switches the working state between CV and CC.

Fast recall

The FTL series power supply supports a fast recall function, which can call the corresponding power output parameters and state with one key, hence greatly improves the test speed, as well as prevents misoperation. It is very helpful for testing, quality control, and production.

Sequence

FTL series power supply supports multi-step sequence function, the power supply will change the working state according to time or trigger, which is used to test the function and stability of load products.

Remote sense

When the load consumes a large current, a voltage drop will be generated on the connection line from the power supply to the load terminal, and remote sensing can automatically compensate for the voltage drop of the load line.

Battery charging function

FTL series power supply allows for battery charging based on specified parameters. Users can define the trickle charge threshold voltage, float charge voltage, trickle charge current, standard charge current, termination current threshold, charging time and other parameters, hence fully simulate the battery charging process and effectively protect the battery .
