Description

FTM8008 series high-precision AC/DC measuring instrument is a new generation of high-precision AC/DC measuring instrument produced by Faithtech. This product adopts a completely new software and hardware design, capable of simultaneously measuring single-phase AC/DC voltage, current, frequency, active power, etc. It can be widely applied in AC/DC measurement in fields such as metrology research institutes, power, metrology, military industry, manufacturing, scientific research, etc. It is also used for single-phase AC/DC voltmeters, ammeters, and power meters in government inspection institutions and other measurement fields.

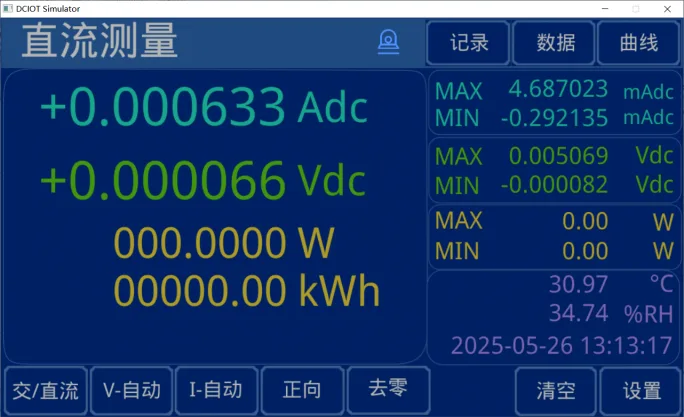

Main interface display

FTM8008 offers comprehensive electrical parameter measurement capabilities, covering voltage, current, power and power consumption. Its core advantage lies in the real-time display with up to 7-digit resolution. The combination of excellent accuracy and refresh rate provides a precise data source for customer R&D verification, product testing and energy consumption assessment.

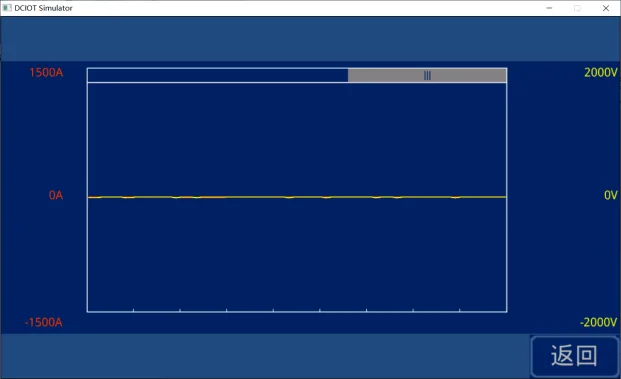

Curve display

FTM8008 can simultaneously draw the measurement curve in real time during the measurement process, making the changes in data clearly visible. It intelligently senses the signal amplitude and automatically switches to the optimal range to ensure precise measurement throughout the process. It eliminates the need for manual gear shifting, making the testing both fast and accurate.

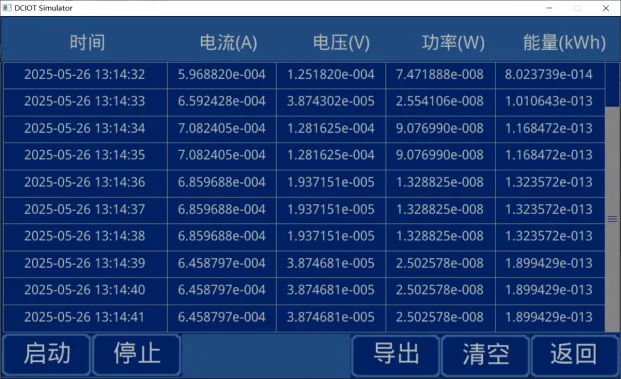

Data recording and export

FTM8008 has data recording capability. Users can precisely control the start and end times of the recording to ensure the capture of the target data segment. The recorded data can be conveniently exported via USB as standardized tabular files (such as CSV), and is perfectly compatible with various data analysis software and office tools.

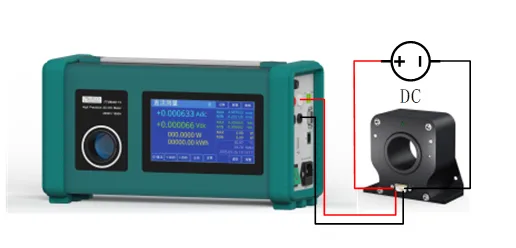

External current sensor function

FTM8008 can be easily connected to various current sensors, and the measurement range can be expanded as needed. Moreover, in the settings, the sensor ratio can be precisely configured to ensure accurate and reliable readings, perfectly adapting to your exclusive testing plan.

Specification

All specifications are subject to change without further notice.

Note:

1. The accuracy of all the above parameters is guaranteed within a temperature range of 23℃ ± 5℃.
2. The measurement of AC parameters is the true RMS value within the frequency range of 10Hz to 400Hz.
