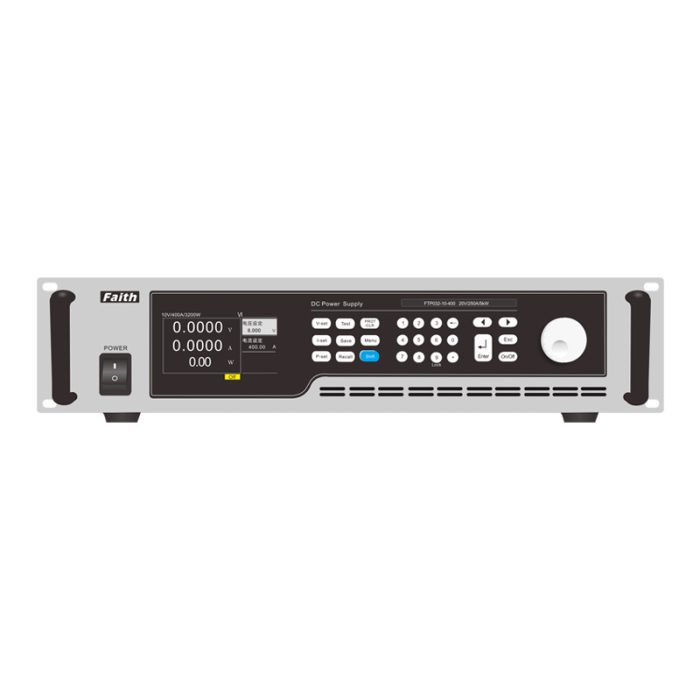

FaithTech FTP series programmable DC power supply (10V/2KW/3.2KW/6.5KW)

0 ~ 1500 v

FTP series wide range Benchtop computer-controlled DC regulated power supply is a high performance DC power supply developed by Faith Technology. It has the advantages of wide range output, large current, low ripple noise, fast transient response, high resolution, high precision, voltage and current slope can be set, etc.

Description

FTP series wide range programmable DC power supply is a high performance DC power supply developed by Faith tech. It has the advantages of wide output range, high current, low ripple noise, fast transient response, high resolution, high precision, and the voltage current slope can be set.

FTP series product line is rich, including 48 different models, 5 power levels, voltage range from 10V to 1500V, it is the best choice for ATE system integration, laboratory testing, vehicle equipment testing, superconducting testing, motor testing, battery charging simulation, voltage and current sensor calibration, laser testing and power supply, electronic product life cycle testing and other applications.



Application field

  • Multi-specification flexible application of power electronics laboratory;
  • Fuel cell, power battery, lead battery, super capacitor test;
  • Simulation of power supply environment of vehicle, airborne and shipboard electronic equipment;
  • Dc charger, charging pile design and test system integration;
  • Server power supply, UPS, inverter design and test;
  • Solar energy, wind energy, energy storage design and testing;
  • Uav, laser, sensor field power supply and design test.



High-precision measurement function :

FTP series built-in 16bits high precision A/D converter, voltage 0.05%F.S., current 0.1%+0.1%F.S. The measurement accuracy of FTP. The measurement values of voltage, current and power can be displayed on the display screen of the front panel of the power supply at the same time. In addition, FTP provides additional voltage and current monitoring output function, the user can monitor the output waveform of voltage and current through the oscilloscope by monitoring the output terminal.



Constant power, wide range output :

The FTP series has an output range of over 2.4 times wide range. It can automatically adjust the output voltage and current within the set range to achieve constant power output. CP function for solar photovoltaic simulation test, load stability test and protection safety test to provide help.

Faithtech FTP series power supply constant power

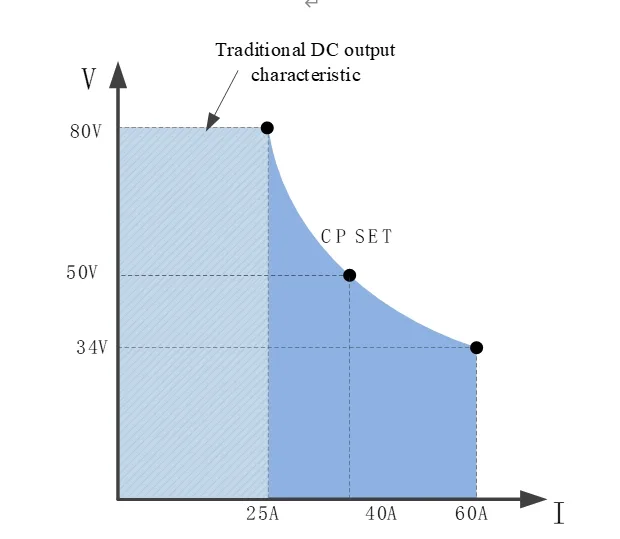

FTP series provides wider operation in constant power range



Sequence function

The sequence function allows users to edit their own voltage and current waveforms. The FTP series offers 10 sequence files, each supporting up to 100 run steps. In the run steps, you can set the output voltage, output current, and delay. Sequence function support, support cycle, link and other attributes, to facilitate the realization of complex waveform output.

Faithtech FTP series sequence function





CV, CC is preferred

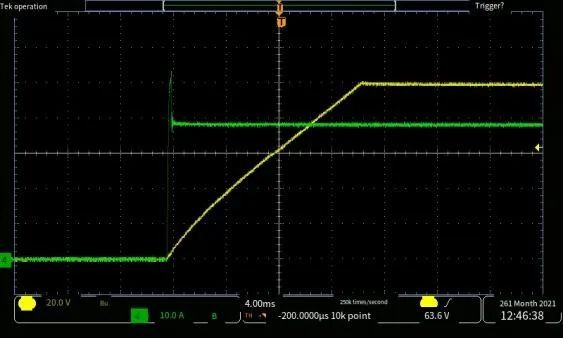

When the power output is connected to the inductive or capacitive load, the output current or voltage will overshoot to a certain extent, which will trigger the protection of the device under test, or even damage the device under test. FTP series with CV, CC output priority function to effectively inhibit the output overshoot and the impact.

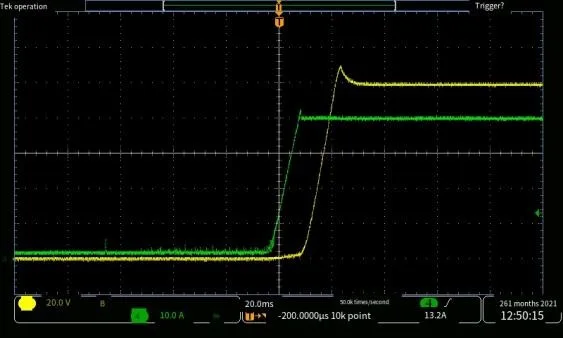

CV priority (high speed build voltage, current overshoot)                                           CC priority (high speed build current, voltage overshoot)



Analog programming capabilities

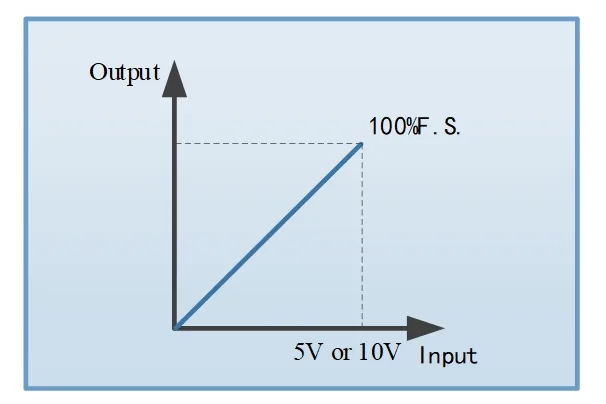

FTP series has two analog input ports, voltage programming and current programming, which can respectively control the output voltage and output current. The analog programming signal can choose 0 ~ 5V or 0 ~ 10V DC voltage signal. The programming signal corresponds to the output voltage and output current of 0 ~ 100%F.S.

Faithtech FTP series Analog programming



multi-machine parallel function

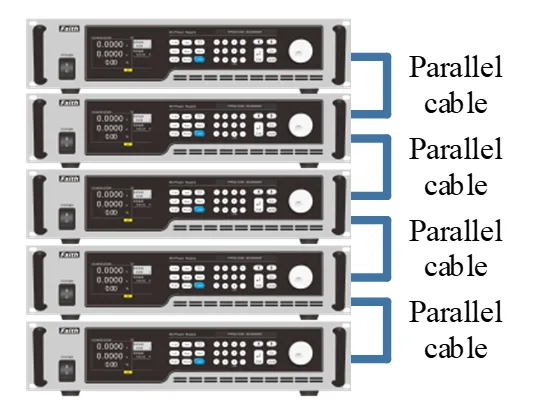

The FTP power supply supports up to 10 power supplies in parallel, which greatly expands the application output range of the power supply. Parallel function in addition to the automatic load between the power supply, to maintain the output value is consistent, but also to ensure the output slope curve or waveform is consistent. In the parallel state of the host, the power supply screen displays the total voltage, current and power values. Each slave automatically equalizes current and sums automatically.

Faithtech FTP series parallel function





battery internal resistance simulation function

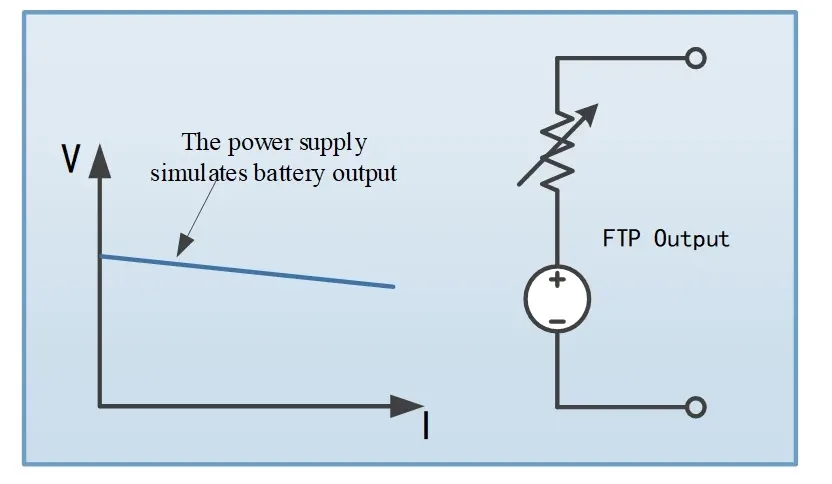

FTP series power supply with battery internal resistance analog output function, when the output current of the power supply increases, the output voltage can be adjusted according to the user's preset internal resistance value.

battery internal resistance simulation function





Automotive power supply waveform simulation (optional)

Due to the complex electrical environment of the automobile power supply system, the power supply voltage often fluctuates greatly, for example, the motor, solenoid valve and other components start and close. The automotive electronic waveform test function of FTP-C series power supply can realize the simulation function of ISO16750-2 (environmental conditions and tests of electrical and electronic equipment of road vehicles Part 2: Electrical load) and Volkswagen VW80000 electrical and electronic equipment test waveform.



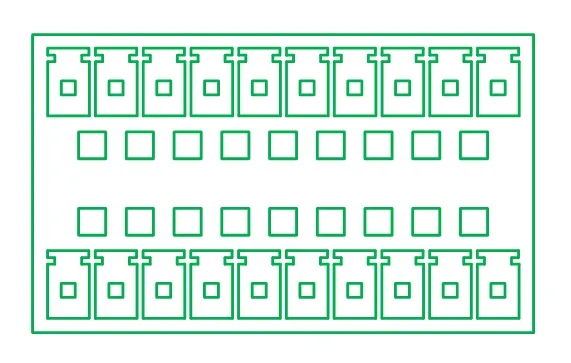

Composite signal port (optional)

FTP series optional composite signal port, which has the following functions:

  • Voltage, current output monitoring;
  • Voltage, current programming control;
  • Working mode indication;
  • Scram control input;
  • READY power supply working status indication;
  • DC_ON output voltage monitoring, etc.



 Multi-interface and multi-protocol

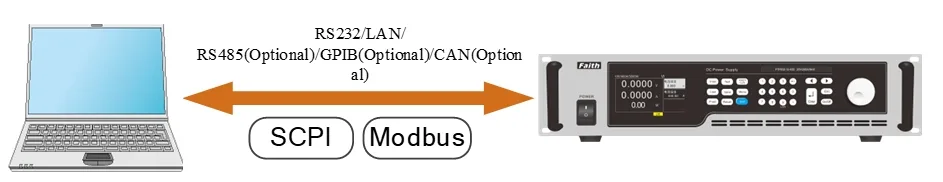

The FTP series is equipped with multiple communication interfaces, and supports SCPI and Modbus two communication protocols. The user can configure it in the menu according to the needs, which makes the system integration more flexible.

multi-interface

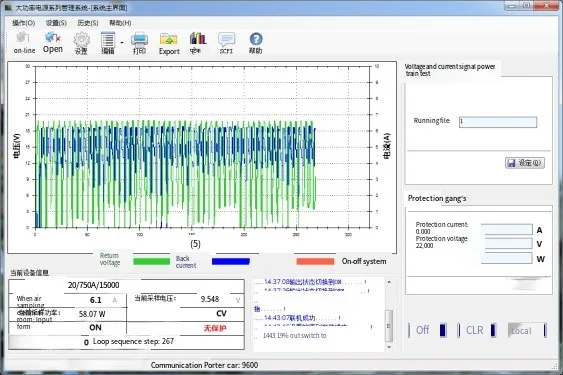

Computer graphical operation software

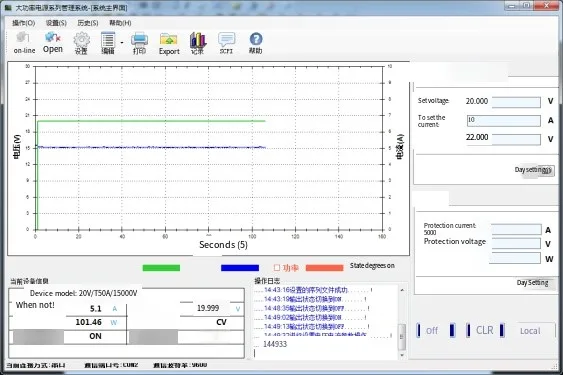

FTP series provides a host computer software with virtual instrument function, which can read test data in real time, generate images, export reports, print reports, etc., which is convenient for customers to use.

Feature

■ Output voltages: 0 V...40 V up to 0 V... 1500 V;

■ Output current: 0 A...3.5 A up to 0 A... 240 A;

■ Output power: 2 / 3.2 / 6.5 kW;

■ CV, CC, CP operation modes;

■ Easy Master-Slave parallel or serial;

■ Precision V & I measurement;

■ High speed programming;

■ 1ms typical transient response;

■ Programmable sequence;

■ Voltage & current slew rate control;

■ CV / CC priority;

■ Foldback protection;

■ Wide operating region for output;

■ Automotive waveform test feature, compatible with ISO16750-2, VW80000 standards  *1

■ Remote sense compensation;

■ Optional analog programming & monitoring interface;

■ ±OVP, ±OCP, ±OPP, OTP, ±LVP;

■ Voltage limit, current limit;

■ Standard LAN, USB (serial), optional GPIB interface;

■ SCPI and ModBus RTU protocol;

■ TFT color LCD display.

Model Options

VOLTAGE Model Current Power Voltage Model Current power
10V FTP016-10-200 200A 1.6 kW 20V FTP020-20-250 250A 2kW
FTP032-10-400 400A 3.2 kW FTP032-20-250 250A 3.2 kW
FTP048-10-600 600A 4.8 kW FTP048-20-375 375A 4.8 kW
FTP065-10-800 800A 6.5 kW FTP065-20-500 500A 6.5 kW
Voltage Model Current Power Voltage Model Current Power
30V FTP016-30-85 85A 1.6 kW 40V FTP020-40-120 120A 2kW
FTP032-30-170 170A 3.2 kW FTP032-40-120 120A 3.2 kW
FTP048-30-255 255A 4.8 kW FTP065-40-240 240A 6.5 kW
FTP065-30-340 340A 6.5 kW - - -
Voltage Model Current power Voltage Model Current Power
50V FTP020-50-110 110A 2kW 80V FTP020-80-60 60A 2kW
FTP032-50-110 110A 3.2 kW FTP032-80-60 60A 3.2 kW
FTP065-50-220 220A 6.5 kW FTP065-80-120 120A 6.5 kW
Voltage Model Current Power Voltage Model Current power
120V FTP020-120-40 40A 2kW 160V FTP020-160-30 30A 2kW
FTP032-120-40 40A 3.2 kW FTP032-160-30 30A 3.2 kW
FTP065-120-80 80A 6.5 kW FTP065-160-60 60A 6.5 kW
Voltage Model Current Power Voltage Model Current Power
200V FTP020-200-30 30A 2kW 300V FTP020-300-16 16A 2kW
FTP032-200-60 60A 3.2kW FTP032-300-16 16A 3.2kW
FTP048-200-90 90A 4.8kW FTP065-300-32 32A 6.5kW
Voltage Model Current Power Voltage Model Current Power
400V FTP020-400-12 12A 2kW 500V FTP020-500-10 10A 2kW
FTP032-400-12 12A 3.2kW FTP032-500-20 20A 3.2kW
FTP065-400-24 24A 6.5kW FTP048-500-30 30A 4.8kW
- - - FTP065-500-40 40A 6.5kW
Voltage Model Current Power Voltage Model Current Power
600V FTP020-600-8 8A 2kW 800V FTP020-800-8 8A 2kW
FTP032-600-8 8A 3.2kW FTP032-800-8 8A 3.2kW
FTP065-600-16 16A 6.5kW FTP065-800-16 16A 6.5kW
Voltage Model Current Power Voltage Model Current Power
1000V FTP020-1000-5 5A 2kW 1200V FTP020-1200-5 5A 2kW
FTP032-1000-5 5A 3.2kW FTP032-1200-5 5A 3.2kW
- - - FTP065-1200-10 10A 6.5kW
- - - 1500V FTP020-1500-3.5 3.5A 2kW
FTP065-1000-10 10A 6.5kW FTP032-1500-3.5 3.5A 3.2kW
- - - FTP065-1500-7 7A 6.5kW
