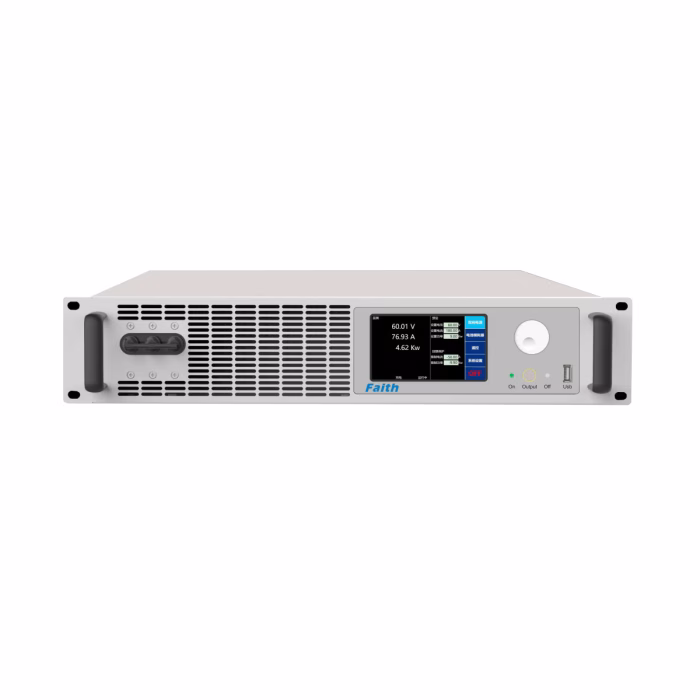

FTPF series programmable AC power supply, using ARM+FPGA digital control, instantaneous waveform control and high frequency pulse width modulation (SPWM) technology, response speed up to 1mS, high output accuracy, low waveform distortion; With three-phase voltage independent adjustable, can edit harmonics, start phase adjustable, phase online variable, nonlinear load adaptability, with ON/OFF test function; Modular design concept, small volume and weight, convenient operation, cost-effective. Touch screen voltage, frequency, time setting; Provide embedded intelligent PC monitoring system, with RS232, RS485, TCP/IP network cable communication interface.

Description

FTPF series adopts digital control technology, modular power supply design, high power density, small size, greatly reduce the failure rate. Its advanced direct digital frequency synthesizer (DDS) waveform generation technology, so that the output frequency stability is high, good continuity, can output frequency range up to 1Hz-550Hz.

FTPF series has three-phase voltage, independent frequency adjustable, can edit harmonics, start phase adjustable, phase online variable nonlinear load adaptability. In addition, FTPF series provides precision measurement function, can measure root mean square voltage Vrms, root mean square current Irms, active power W, frequency Hz, power factor PF, peak current Ipeak equivalent.

FTPF series with RS232, RS485, CAN, LAN and other communication interfaces, to provide rich test functions and simple human-computer interface, in automotive electronics, energy storage, automated testing and other high-power test scenarios have a wide range of applications



Application fields

  • Home appliance field: Home appliance product test, durability experiment;
  • Communication field: communication power supply, communication electronic products testing, aging;
  • Aerospace field: Testing and power supply of aerospace and avionics products;
  • LED field: LED driver, aging test;
  • Research field: testing and electrical experiments of scientific research institutions, colleges and universities, certification units and other institutions;
  • Laboratories, production lines, charging rooms, aging rooms and other places requiring long-term stable AC power supply;
  • Automated test field: AC power output and power supply of products to be tested in automated test system.



Specification Table -1

Specifications Table -1
Product Model FTPF1103 FTPF1105 FTPF1110 FTPF3110 FTPF3115 FTPF3130 FTPF1310
Capacity 3KVA 5KVA 10KVA 10KVA 15KVA 30KVA 10KVA
Production mode SPWM
INPUT Input
Number of phases Phi 2 w + 1 G Phi 4 w + 3 G Phi 2 w + 1 G
Voltage 220V±20% 380V±20% 220V±20%
Frequency 47Hz - 63Hz
Power factor PFC 0.99 Max
Current harmonics THDI 3% or less
Output
Number of phases Phi 2 w + 1 G Phi 4 w + 3 G
Phase φ Aφ : 0-360°; B φ: 0-360°; Cφ : 0-360°; 0.5°Step three-phase phase Angle independent adjustable, dynamic phase adjustable, low power grid crossing
Start Angle A: 0-360°; B: 0-360°; C: 0-360°; 0.5°Step The three-phase start Angle is independently adjustable
Harmonic Edit 2-50 Times
Phase Voltage A: 0-350VAC; B: 0-350VAC; C: 0-350VAC; 0.1v Step three-phase voltage independently adjustable
Phase Current 18A 30A 60A 60A 90A 180A 20A
Frequency 1Hz-550Hz
Efficiency 93%(typical value)
The power supply stabilizer is linear Regulation 0.01%
Load Regulation 4 0.20%
Waveform distortion T.H.D 0.5%@ pure resistive load, 0.9%@ nonlinear load
Transient recovery time <1ms (voltage 10%-90%)
Frequency stability 0.01%
Voltage Resolution. 0.1 V
Frequency Resolution 0.01 Hz
Current Resolution. 0.01 A
Accuracy of measurement Voltage 0.2% + 5 DGT f.s
Current 0.2% + 5 DGT f.s
Power Wattage 0.2% + 5 DGT f.s
Frequency 0.01% + 5 DGT f.s
Set accuracy Voltage 0.1% F.S.
Frequency Current 0.01% F.S.
Volt programming mode. Work step mode, gradient mode, mutation mode
Freq programming mode Work step mode, gradient mode, mutation mode
Phase programming mode. Work step mode, gradient mode, mutation mode
Communication Interface RS232, RS485, LAN
Traffic limiting setting 0-Max Current
I/O Isolation Input is resistant to output 2500V
Auxiliary test function Voltage mutation, frequency mutation, phase mutation, 5V TTL 1mS Pulse
OUTPUT ON/OFF 5V TTL
Protection Overcurrent OCP Overvoltage OVP Overtemperature OTP overload OLP Short-circuits SCP
Cooling Mode Air cooling
Operating Environment -10℃ ~ 50℃/10% ~ 90%RH



Specification Table -2

Specification Table -2
  FTPF3315 FTPF3330 FTPF3360 FTPF33100 FTPF33150 FTPF33200 FTPF33250
Capacity 15KVA 30KVA 60KVA 100KVA 150KVA 200KVA 250KVA
Production mode SPWM
Input
Number of phases Phi 4 w + 3 G
Voltage 380V±20%
Frequency 47Hz - 63Hz
Power factor PFC 0.99 Max
Current harmonic THDI 3% or less
Output
Number of phases Phi 4 w + 3 G
Phase φ Aφ : 0-360°; B φ: 0-360°; Cφ : 0-360°; 0.5°Step three-phase phase Angle independent adjustable, dynamic phase adjustable, low power grid crossing
Start Angle A: 0-360°; B: 0-360°; C: 0-360°; 0.5°Step The three-phase start Angle is independently adjustable
Harmonic Edit 2-50 Times
Phase Voltage A: 0-350VAC; B: 0-350VAC; C: 0-350VAC; 0.1v Step three-phase voltage independently adjustable
Phase Current 30A 60A 90A 151A 227A 303A 378A
Frequency 1Hz-550Hz 40Hz-120Hz
The power supply voltage regulator is linear Regulation 0.01%
Load Regulation 4 0.20%
Efficiency 93%(typical value)
Energy Feedback 100% Energy Feedback
Waveform distortion T.H.D 0.5%@ pure resistive load, 0.9%@ nonlinear load
Transient recovery time <1ms (voltage 10%-90%)
Frequency stability 0.01%
Voltage Resolution. Voltage Resolution 0.1 V
Frequency Resolution 0.01 Hz
Current Resolution. 0.01 A
Accuracy of measurement Voltage 0.2% + 5 DGT f.s
Current 0.2% + 5 DGT f.s
Power Wattage 0.2% + 5 DGT f.s
Frequency 0.01% + 5 DGT f.s
Set accuracy Voltage 0.1% F.S.
Frequency Current 0.01% F.S.
Volt programming mode. Work step mode, gradient mode, mutation mode
Freq programming mode Work step mode, gradient mode, mutation mode
Phase programming mode. Work step mode, gradient mode, mutation mode
Communication Interface RS232, RS485, TCP/IP
Current limiting Settings I-LIM Set 0-Max Current
I/O Isolation Input to output 2500V withstand voltage
Auxiliary test function Voltage mutation, frequency mutation, phase mutation, 5V TTL 1ms Pulse
OUTPUT ON/OFF 5V TTL
Protection Overcurrent OCP Overvoltage OVP Overtemperature OTP overload OLP Short-circuits SCP
Cooling Mode Air cooling
Operating Environment -10℃ ~ 50℃/10% ~ 90%RH



Specification Table -3

Specification Table -3
Product Model FTPF33300 FTPF33450 FTPF33600 FTPF33900
Capacity 300KVA 450KVA 600KVA 900KVA
Production mode SPWM
INPUT Input
Number of phases Phase Phi 4 w + 3 G
Voltage Voltage 380V±20%
Frequency 47Hz - 63Hz
Power factor PFC 0.99 Max
Current harmonic THDI 3% or less
OUTPUT Output
Number of phases Phase Phi 4 w + 3 G
Phase φ Aφ : 0-360°; B φ: 0-360°; Cφ : 0-360°; 0.5°Step three-phase phase Angle independent adjustable, dynamic phase adjustable, low power grid crossing
Start Angle Start Angle A: 0-360°; B: 0-360°; C: 0-360°; 0.5°Step The three-phase start Angle is independently adjustable
Harmonic Edit Harmonic Edit 2-50 Times
Phase Voltage A: 0-350VAC; B: 0-350VAC; C: 0-350VAC; 0.1v Step three-phase voltage independently adjustable
Phase Current 453A 680A 906A 1356A
Frequency 40Hz-120Hz
The power supply voltage regulator is linear Regulation 0.01%
Load Regulation 4 0.20%
Efficiency 93%(typical value)
Energy Feedback 100% Energy Feedback
Waveform distortion T.H.D 0.5%@ pure resistive load, 0.9%@ nonlinear load
Transient recovery time <1ms (voltage 10%-90%)
Frequency Regulation 0.01%
Voltage Resolution. 0.1 V
Frequency Resolution 0.01 Hz
Current Resolution. 0.01 A
Accuracy of measurement Voltage Voltage 0.2% + 5 DGT f.s
The Current current 0.2% + 5 DGT f.s
Power Wattage 0.2% + 5 DGT f.s
Frequency 0.01% + 5 DGT f.s
Set accuracy Voltage 0.1% F.S.
Frequency Current 0.01% F.S.
Volt programming mode. Work step mode, gradient mode, mutation mode
Freq programming mode Work step mode, gradient mode, mutation mode
Phase programming mode. Work step mode, gradient mode, mutation mode
Communication Interface RS232, RS485, TCP/IP
Current limiting Settings 0-Max Current
I/O Isolation Input is resistant to output 2500V
Auxiliary test function Voltage mutation, frequency mutation, phase mutation, 5V TTL 1ms Pulse
OUTPUT ON/OFF 5V TTL
Protection Overcurrent OCP Overvoltage OVP Overtemperature OTP overload OLP Short-circuits SCP
Cooling Mode Air cooling
Operating Environment -10℃ ~ 50℃/10% ~ 90%RH





Feature

  • Adopts modular power supply design, high power density, small size, light weight, is one tenth of the volume of traditional (transformer) power supply;
  • The output frequency range is up to 1Hz-550Hz;
  • With high precision measurement, can measure root mean square voltage Vrms, root mean square current Irms, active power W, frequency Hz, power factor PF, peak current Ipeak equivalent.
  • Using DDS digital waveform synthesis design, output high-precision voltage of very low waveform distortion;
  • Contains 50 harmonic editing function;
  • With phase Angle, starting Angle editing function;
  • 5V TTL level detection for voltage sudden change, phase sudden change and frequency sudden change, convenient for users to monitor sudden change conditions;
  • Touch screen + knob operation, convenient parameter setting;
  • Provide PC upper computer operating software, editing waveform, online voltage mutation, frequency mutation, phase mutation function;
  • With RS232, RS485, CAN2.0B, LAN communication interface.

Model Options

Model Model number Inputs Output Phase voltage Phase current Power Size
Single-phase in and single-phase out FTPF1103 Phi 2 w + 1 G Phi 2 w + 1 G 0-350V 18A 3KVA 2U
FTPF1105 Phi 2 w + 1 G Phi 2 w + 1 G 0-350V 30A 5KVA 2U
FTPF1110 Phi 2 w + 1 G Phi 2 w + 1 G 0-350V 60A 10KVA 4U
Three phase in and one phase out FTPF3110 Phi 4 w + 3 G Phi 2 w + 1 G 0-350V 60A 10KVA 2U
FTPF3115 Phi 4 w + 3 G Phi 2 w + 1 G 0-350V 90A 15KVA 4U
FTPF3130 Phi 4 w + 3 G Phi 2 w + 1 G 0-350V 180A 30KVA 4U
Single phase in three phase out FTPF1310 Phi 2 w + 1 G Phi 4 w + 3 G 0-350V 20A 10KVA 4U
Three in, three out FTPF3315 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 30A 15KVA 6U
FTPF3330 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 60A 30KVA 6U
FTPF3360 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 90A 60KVA 900(W)*1750(H)*900(D)
FTPF33100 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 151A 100KVA 800(W)*2000(H)*1050(D)
FTPF33150 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 227A 150KVA 1100(W)*1650(H)*850(D)
FTPF33200 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 303A 200KVA 1300(W)*2000(H)*1250(D)
FTPF33250 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 378A 250KVA 1400(W)*2000(H)*1350(D)
FTPF33300 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 453A 300KVA 1400(W)*2000(H)*1350(D)
FTPF33450 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 680A 450KVA 800(W)*2000(H)*1050(D)*3
FTPF33600 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 906A 600KVA 1300(W)*2000(H)*1250(D)*3
FTPF33900 Phi 4 w + 3 G Phi 4 w + 3 G 0-350V 1356A 900KVA 1300(W)*2000(H)*1250(D)*3
