Description

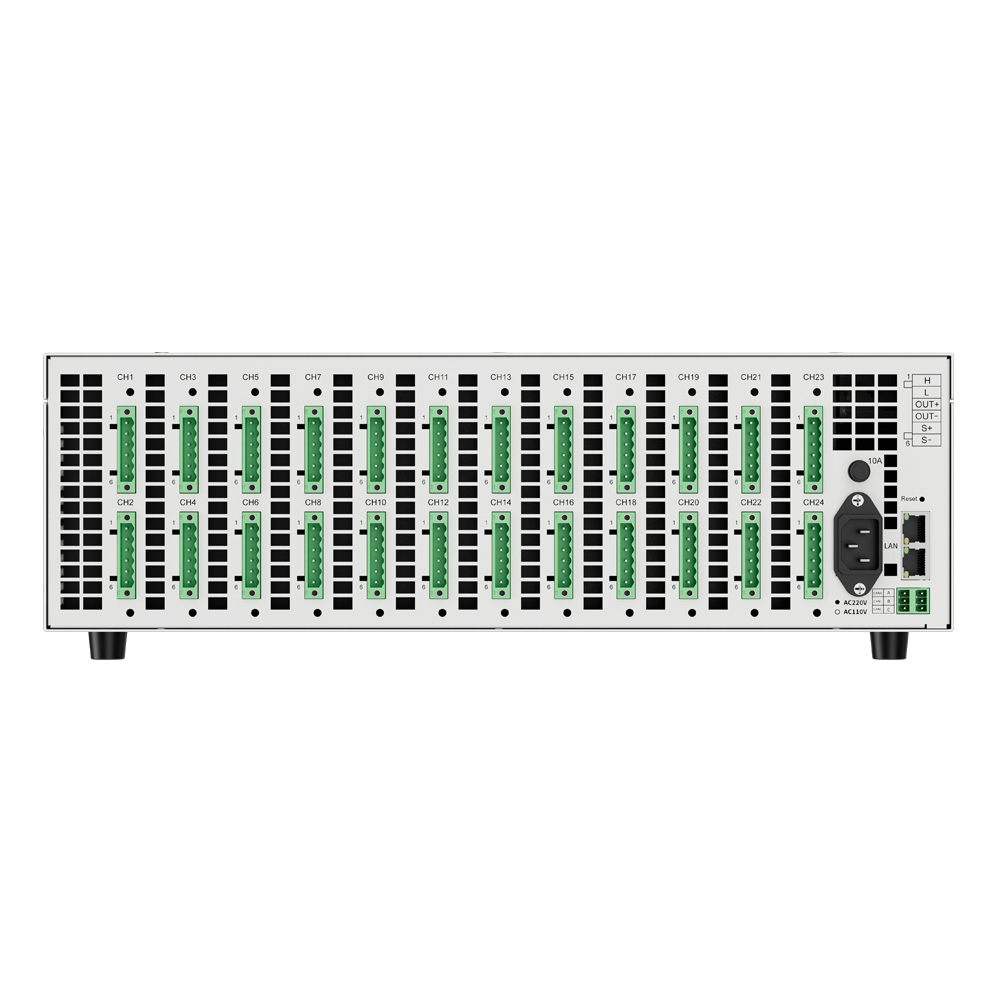

FT8350 series is a high-precision, multi-channel, dual quadrant programmable battery simulator. Voltage precision up to 0.01% F.S., support μA level current measurement: there are up to 24 channels in a device, and the channels are isolated from each other, which is convenient for serial use of multiple channels. The simulator supports power supply mode,static power consumption test function, charging mode, discharge mode, battery simulation, sequence test, pulse function and multiple fault simulation (only A series), which can not only meet the requirements of BMS test, but also meet the ATE test of consumer electronic products. The built-in upper computer software is easy to operate, flexible and easy to use. Support single channel programming operation, multi-channel editing operation and multi process programming operation.

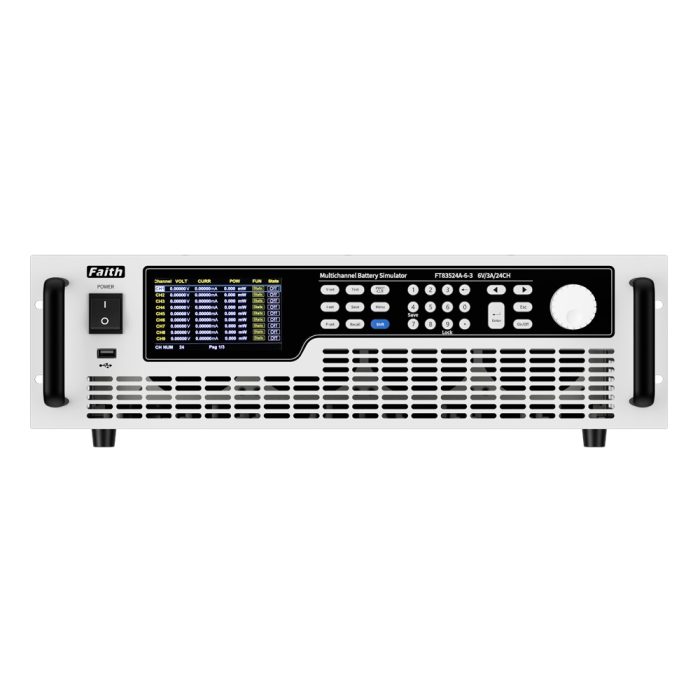

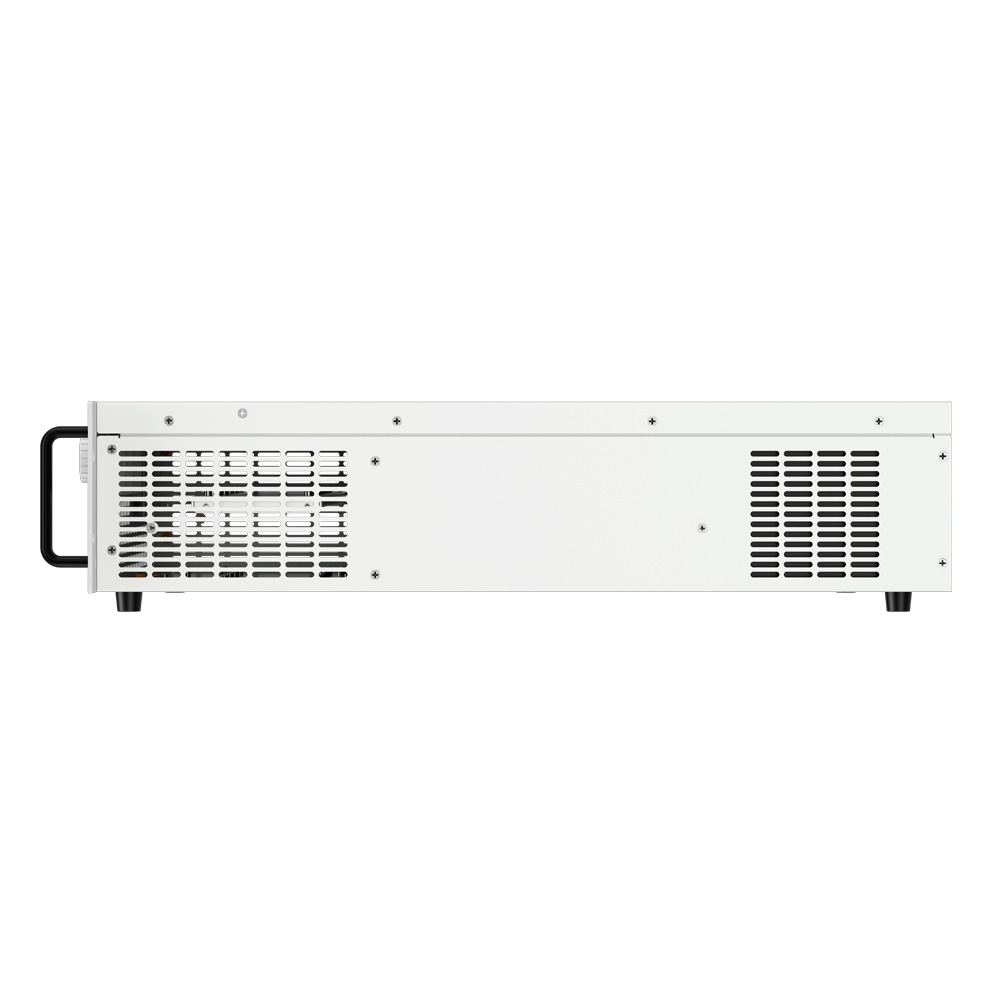

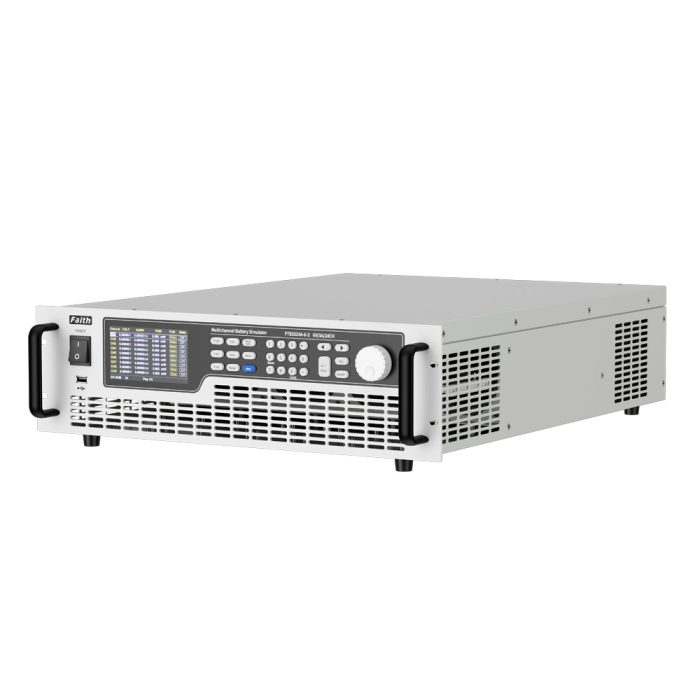

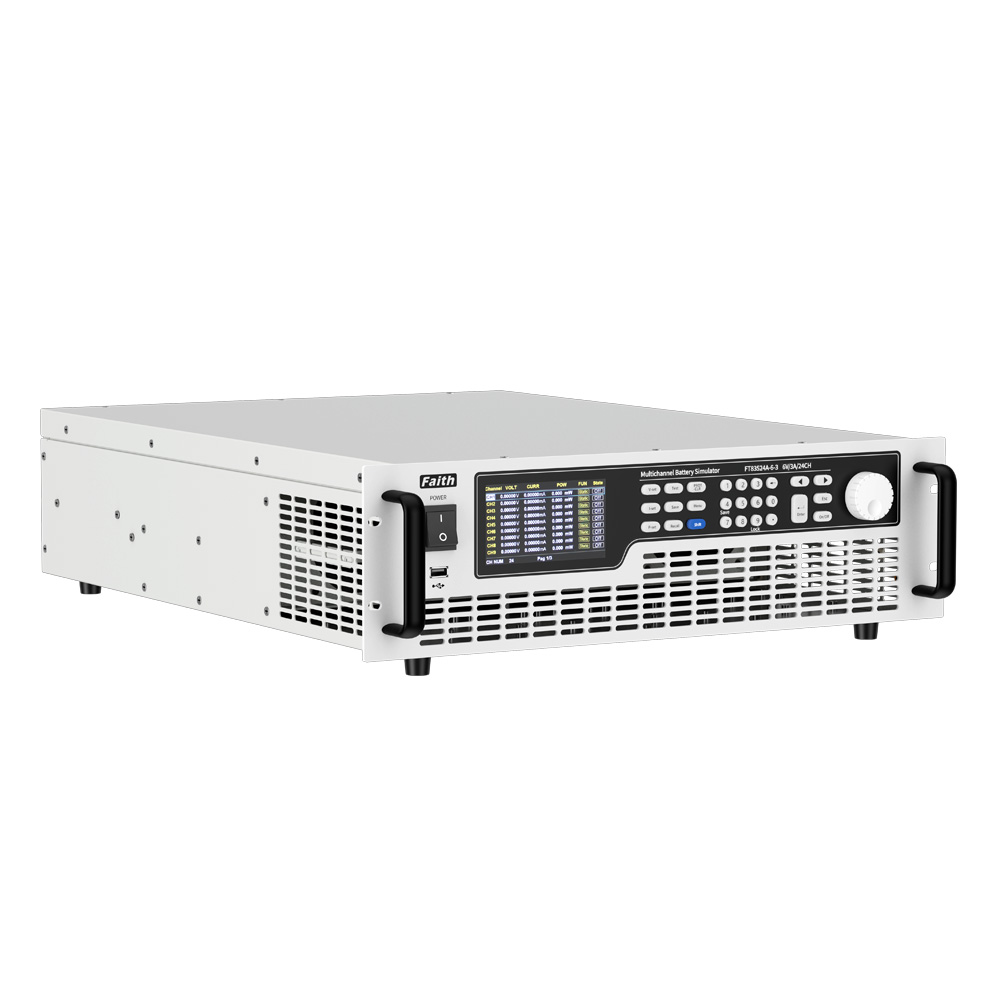

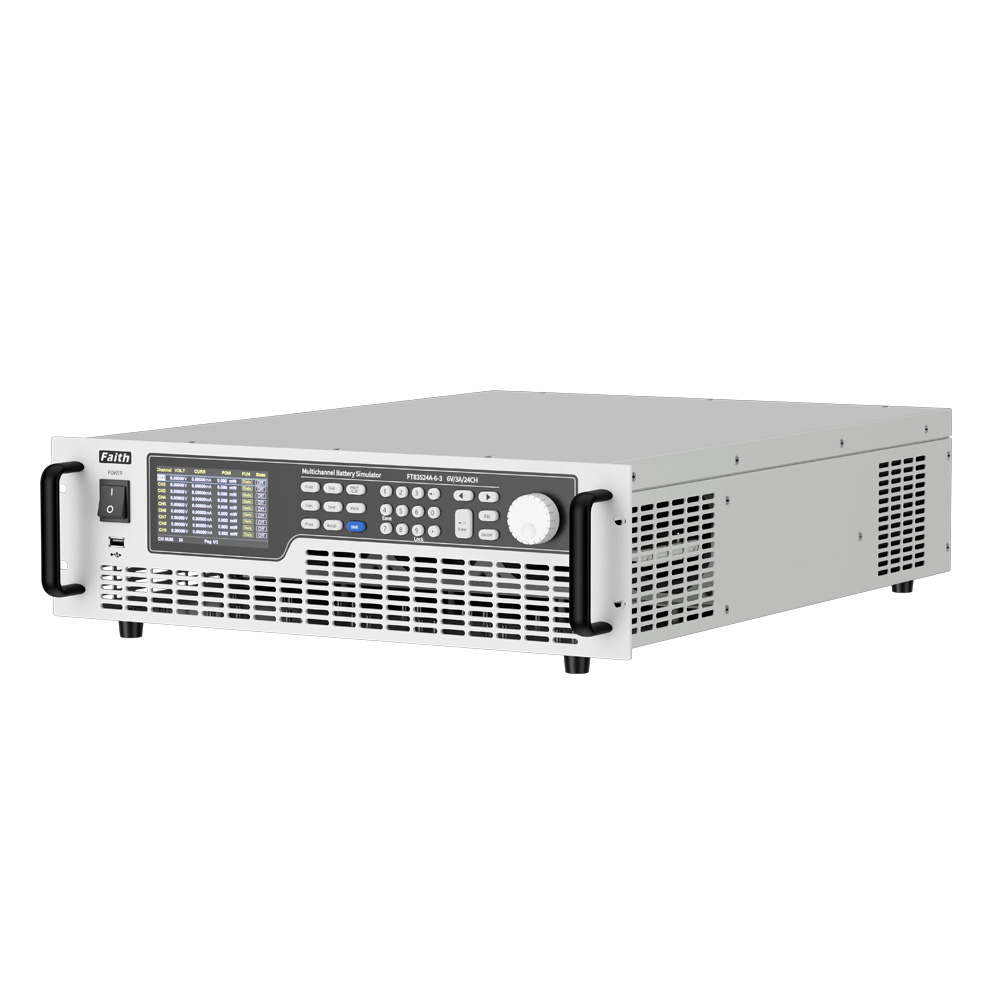

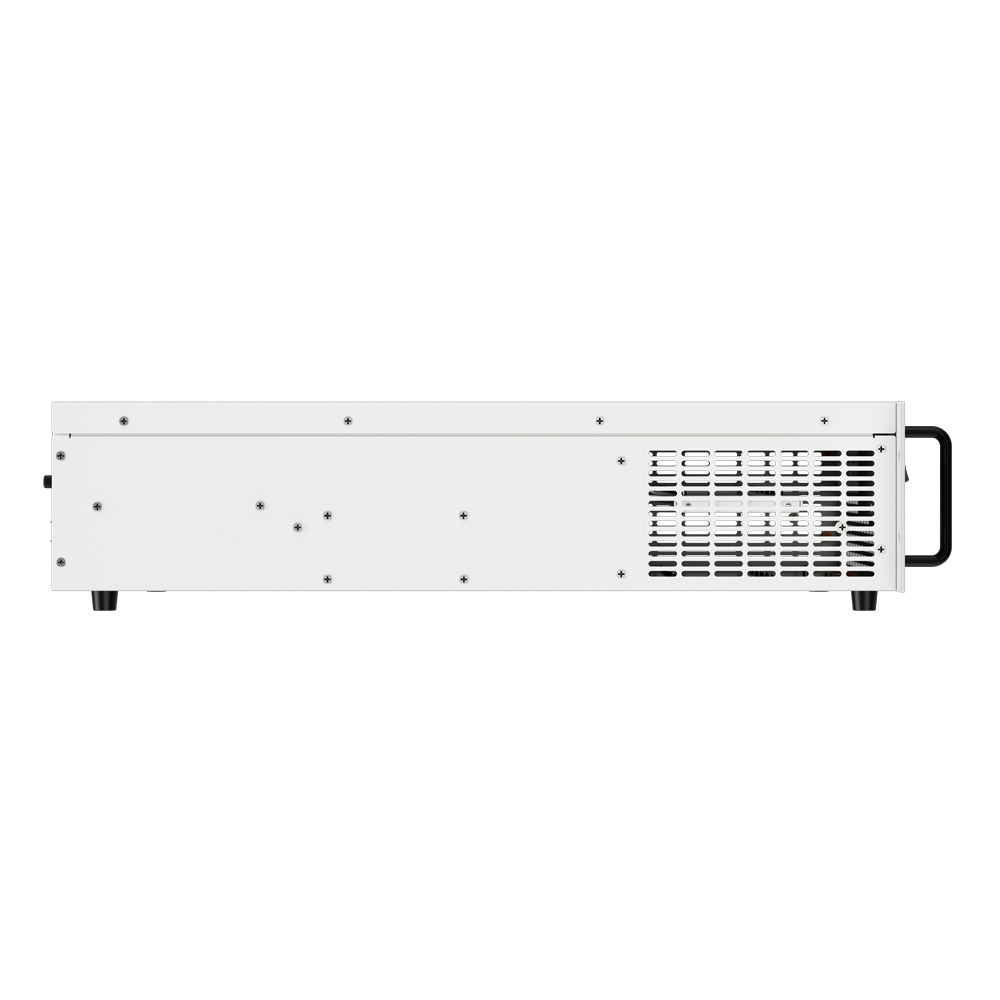

The FT8350 series adopts a standard 19 inch chassis with a height of 3U, and provides LAN, RS485 and CAN communication interfaces, which is convenient for integrating into R&D and automated test platform, or can be used alone.

Application field

• BMS (Battery Management System) testing;
• CMS (Ultra Capacity Management System) testing;
• Consumer electronics testing such as headphones, mobile phones, tablets,   e-cigarettes, etc;
• Production testing of electric tool products;
• Power supply testing for other types of electronic products.

Ultra high accuracy

FT8350 series has high precision and voltage precision is 0.01% F.S. Voltage resolution is as low as 0.1mV, current resolution is as low as 0.1 μ A. For the test of device power consumption in standby mode, the FT8350 has 0.1 μA current resolution measurement, can easily measure the standby current of uA level.

Fault simulation function（A series）

FT8350 comes standard with fault simulation function per channel. A device has up to 24 independent output simulator channels, each of which can simulate fault functions such as positive/negative short circuit, positive/negative broken circuit, polarity reversal etc. By directly controlling through the upper computer software, the external matrix switch components that simulate battery failures are eliminated, saving space and valuable investment for users.

Various battery test functions

FT8350 series products have various battery simulation functions such as power mode, battery simulation, battery charging test, discharge test, fault simulation etc. Realize one device for multiple purposes, simplify test equipment and optimize test process. The user can also set the curve of cell parameters (SOC, voltage, capacity, internal resistance and other parameters fitting) to simulate the battery output for testing the products to be inspected.

Support active and passive equalization

FT8350 series adopts current bidirectional design, each channel supports current output and suction, and the balanced current is up to 5A. The user can customize the battery charging and discharging model and conduct real-time control through a dedicated upper computer, which fully meets the requirements of BMS active/passive equalization test.

Static power consumption test

The FT8350 offers high precision voltage and current measurement. Two current ranges, current accuracy up to 1μA. By supplying power to the product under test through FT8350, the static power consumption of the product under test in standby state can be visually tested and unqualified products can be screened out.
