Battery & BMS Test Solutions

Battery Simulator, BMS Testing & Battery Safety Solutions

Select precision battery cell simulators, complete BMS validation systems, or integrated forced charge/discharge testing for lithium battery safety.

Choose by Application

FaithTech battery simulator and BMS testing solution

Cell & Pack EmulatorsFT8330-FT8350 / FT9350

BMS ValidationCell, voltage, current, sensors and insulation

Safety SystemFTS8500 forced charge / discharge

Up to 39Independent channels

36 CHNTC simulation

0.01%F.S.Accuracy

BMSSystem Testing

Choose Your Test Path

Three ways to build the right battery test setup

The page separates product selection, complete BMS validation, and real-battery safety testing so buyers can quickly find the right starting point.

Path 1

Battery Cell Simulators

Cell simulation, ATE, standby current, balancing and fault simulation for BMS and battery-powered device testing. Recommended series: FT8330, FT8331, FT8340, FT8350.

FT8330-FT8350FT9350

Path 2

Complete BMS Testing Solution

System-level validation covering cell simulation, total voltage, total current, sensor signals, temperature, insulation and I/O. Supports GB/T 34131-2023 and GB/T 38661-2020.

GB/T 34131-2023GB/T 38661-2020

Complete BMS Testing Solution product image

Path 3

FTS8500 Battery Safety Test System

Forced charge/discharge, compliance testing, protection, real-time curves and report export for lithium batteries. Supports UN 38.3, IEC 62133 and GB 31241.

UN 38.3IEC 62133GB 31241

FTS8500 Battery Safety Test System product image

Recommended by Application

Start from the product you need to test

Use these application groups as campaign-specific landing sections or quick jump points for engineers comparing setups.

Electric Vehicles & EV Components

Validate BMS logic, pack current, balancing, fault behavior and safety conditions before vehicle-level testing.

Recommended Solutions

FT8330FT8340FT8350BMS SolutionFTS8500

View Recommended Setup

Humanoid Robots & Service Robots

Test compact high-density battery packs, standby current, pulse loads, balancing and protection logic.

Recommended Solutions

FT8331FT8340FT8350BMS Solution

View Recommended Setup

UPS & Data Center Backup Power

Validate backup battery systems for AI data centers, UPS cabinets and long-runtime power protection systems.

Recommended Solutions

FT8330FT8350BMS SolutionFTS8500

View Recommended Setup

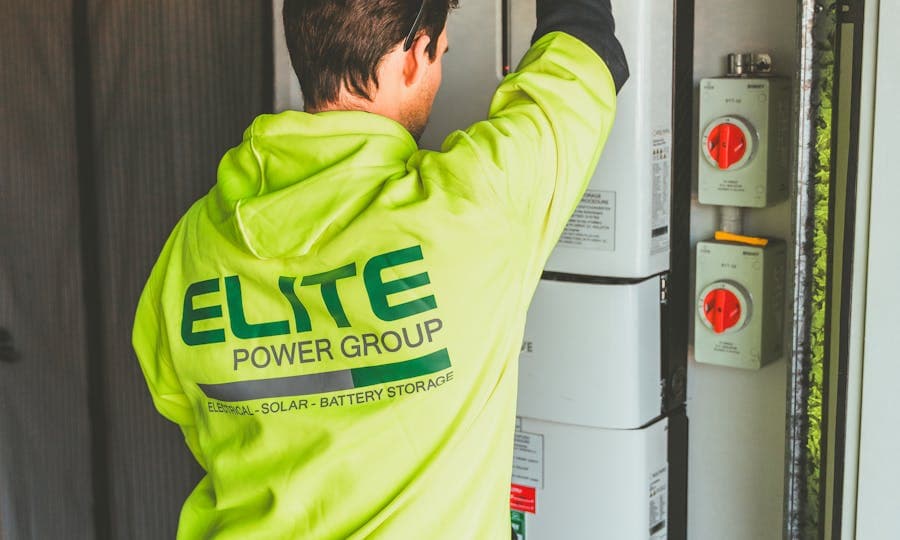

Energy Storage Systems

Support ESS battery management, balancing, safety protection and compliance validation before system deployment.

Recommended Solutions

FT8330FT8340FT8350BMS SolutionFTS8500

View Recommended Setup

Consumer Electronics & Wearables

Simulate small battery cells for phones, wearables and low-power devices with precise static current measurement.

Recommended Solutions

FT8330FT8331FT8340

View Recommended Setup

Drones, Power Tools & E-Mobility

Test high-current portable packs for pulse loads, balancing, fault protection and safety validation.

Recommended Solutions

FT8331FT8340FT8350FTS8500

View Recommended Setup

BATTERY CELL & PACK EMULATORS

Choose the right level of battery emulation

Start with dedicated cell channels or consolidate BMS-facing battery and sensor signals in the FT9350 platform.

COMPREHENSIVE BATTERY EMULATOR

FT9350 Series Comprehensive Battery Emulator

Consolidate cell simulation, NTC temperature simulation, pack-voltage and pack-current signal emulation, and fault simulation in one modular 4U platform.

Up to 39Independent channels

36 CHNTC simulation

0.01% F.S.Voltage accuracy

4U19-inch chassis

Cell and battery-pack behavior
NTC temperature simulation
Pack voltage and current signals
Built-in fault simulation

View FT9350 Details

Dedicated battery cell simulators

Compare FT8330, FT8331, FT8340 and FT8350 for focused channel, current and bidirectional requirements.

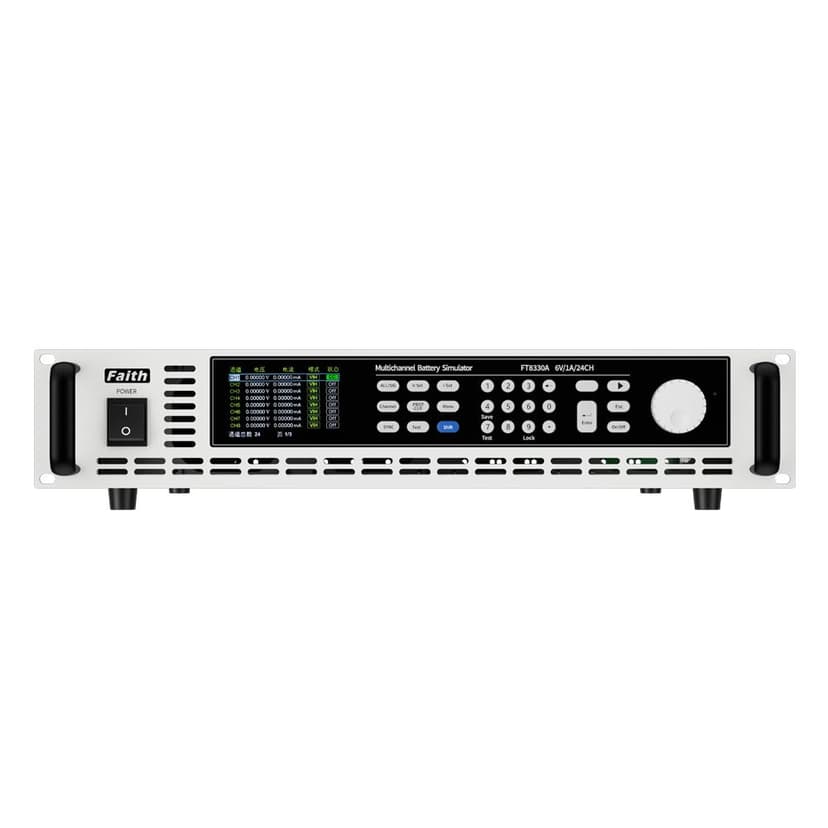

HIGH-CHANNEL BATTERY CELL SIMULATOR

FT8330

Channel Count12-36CH

Voltage Range0-6V

Current Range0-3A

View Details

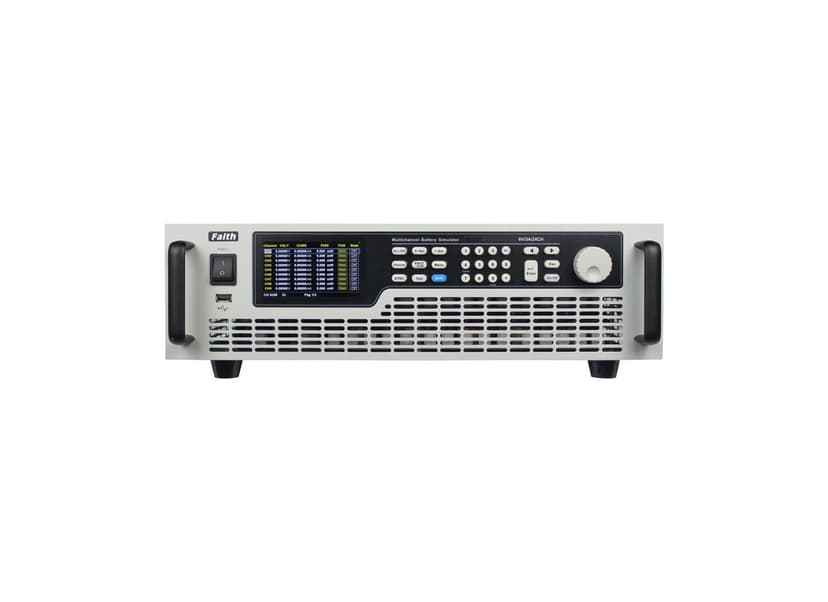

PRECISION SINGLE-QUADRANT SIMULATOR

FT8331

Channel Count12-24CH

Voltage Options6-20V

Current Options1-5A

View Details

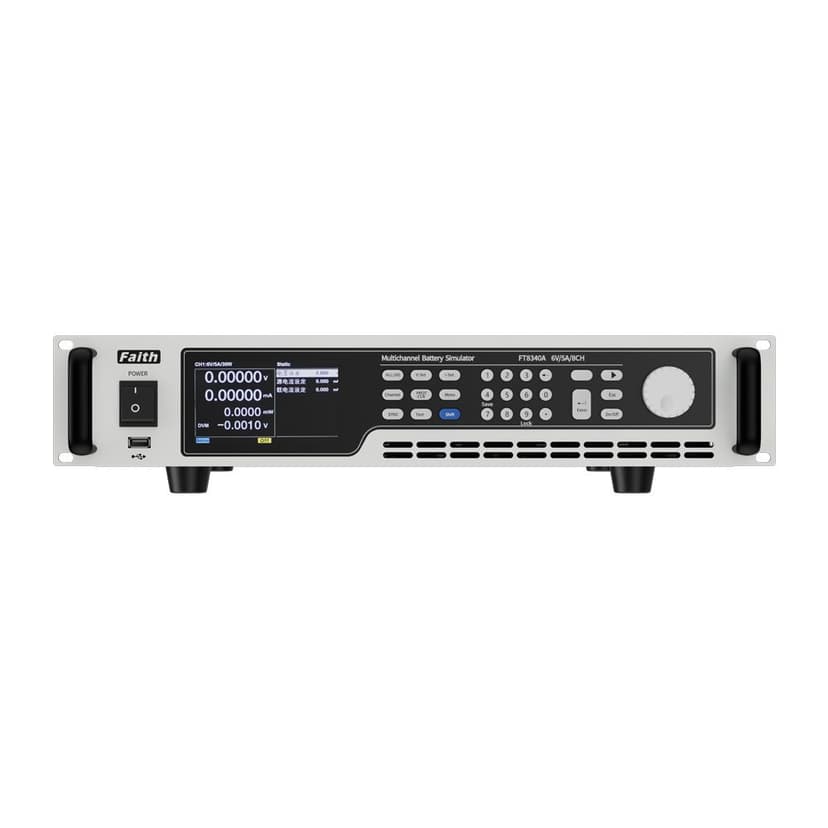

BIDIRECTIONAL HIGH-CURRENT SIMULATOR

FT8340

Channel Count4-12CH

Voltage Range+/-5V to +/-20V

Current Range+/-1A to +/-10A

View Details

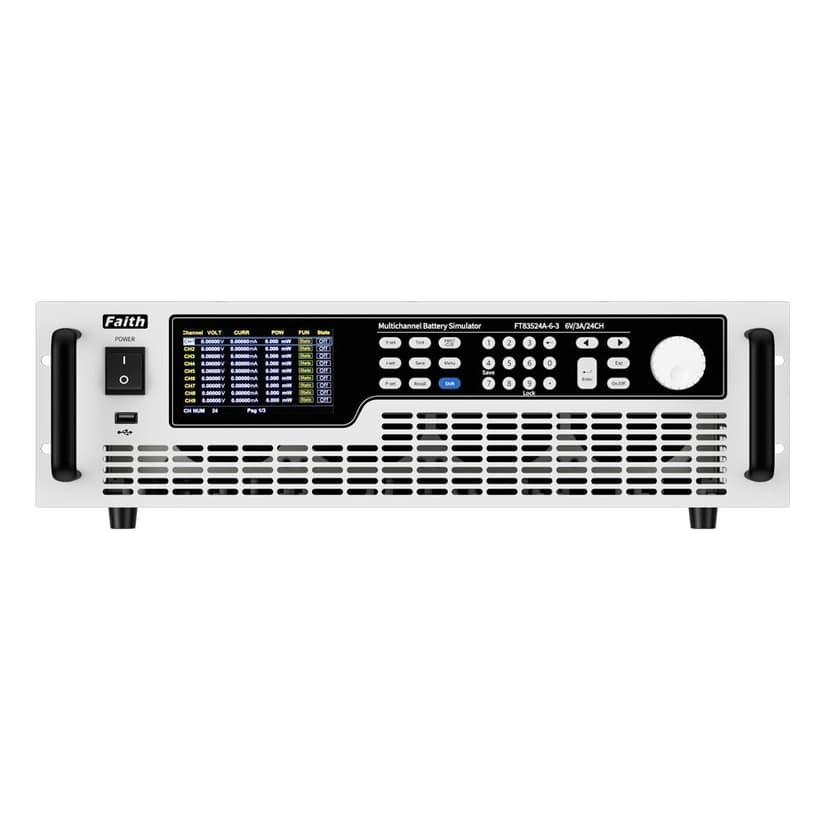

HIGH-CHANNEL BIDIRECTIONAL BATTERY SIMULATOR

FT8350

Channel Count16-24CH

Voltage Options6V / 15V / 20V

Current Options+/-1A / +/-3A / +/-5A

View Details

COMPLETE BMS TESTING SOLUTION

Validate the complete battery management system

Cover cell simulation, pack voltage, charge/discharge current, current sensors, temperature, industrial sensors, insulation resistance, BMS power supply and I/O signals in one test architecture.

GB/T 34131-2023GB/T 38661-2020Repeatable simulationSafety logic validation

Explore BMS Testing

Cell SimulationFT8330-FT8350 / FT9350

Pack VoltageHigh-voltage DC source

Pack CurrentPower source and electronic load

Sensor SignalsCurrent, industrial and I/O signals

TemperatureThermocouple, NTC and RTD simulation

Insulation & I/OSafety protection validation

BATTERY SAFETY TEST SYSTEM

FTS8500 Integrated Battery Forced Charge / Discharge Test System

For lithium battery safety validation and compliance testing with precise voltage, current and temperature control, real-time curves, multi-protection and CSV/PDF report export.

UN 38.3IEC 62133GB 31241Forced ChargeForced DischargeReport Export

Explore FTS8500 Solution

FTS8500 battery forced charge and discharge test system

CHOOSE BY TEST GOAL

Match the requirement to the right FaithTech setup

This decision guide turns broad battery and BMS search intent into a clear recommendation path for engineers.

Simulate a multi-cell pack for BMS testingFT8330 / FT8331 / FT8350 Measure standby current and static powerFT8330 / FT8331 / FT8350 Test active or passive cell balancingFT8340 / FT8350 Simulate open, short or reverse faultsFT8331 / FT8340 / FT8350 Validate the complete BMS systemBMS Testing Solution Run lithium battery safety compliance testsFTS8500 Solution

SOLUTION CONSULTATION

Get the recommended battery test setup

Share your application, channel count, voltage, current and whether you need battery simulation, complete BMS validation or FTS8500 safety testing.
