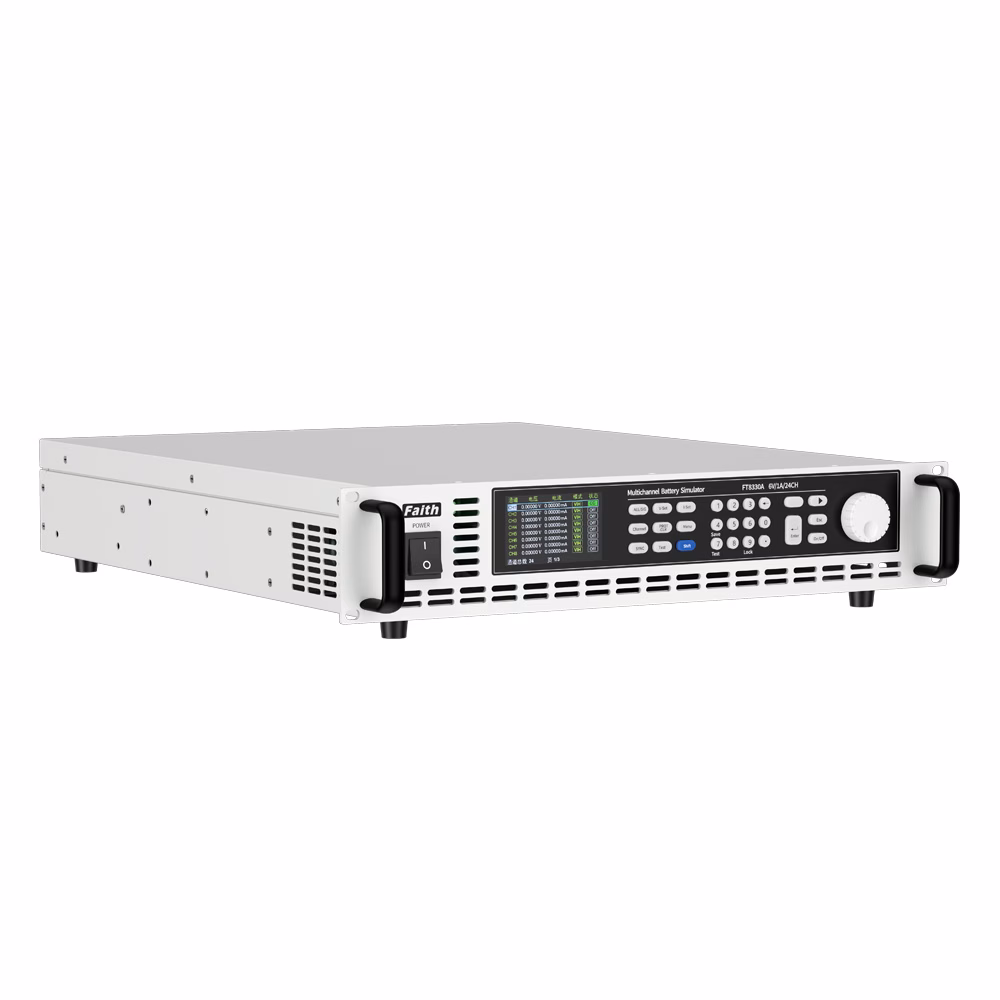

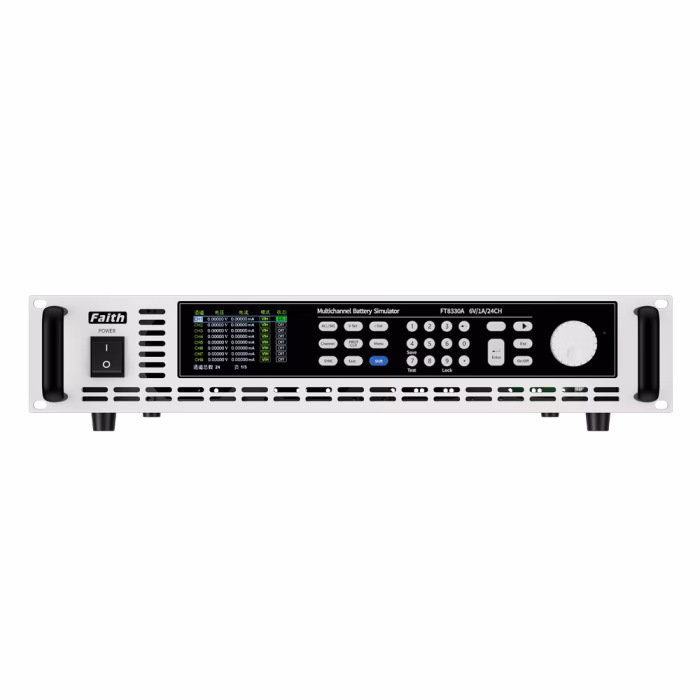

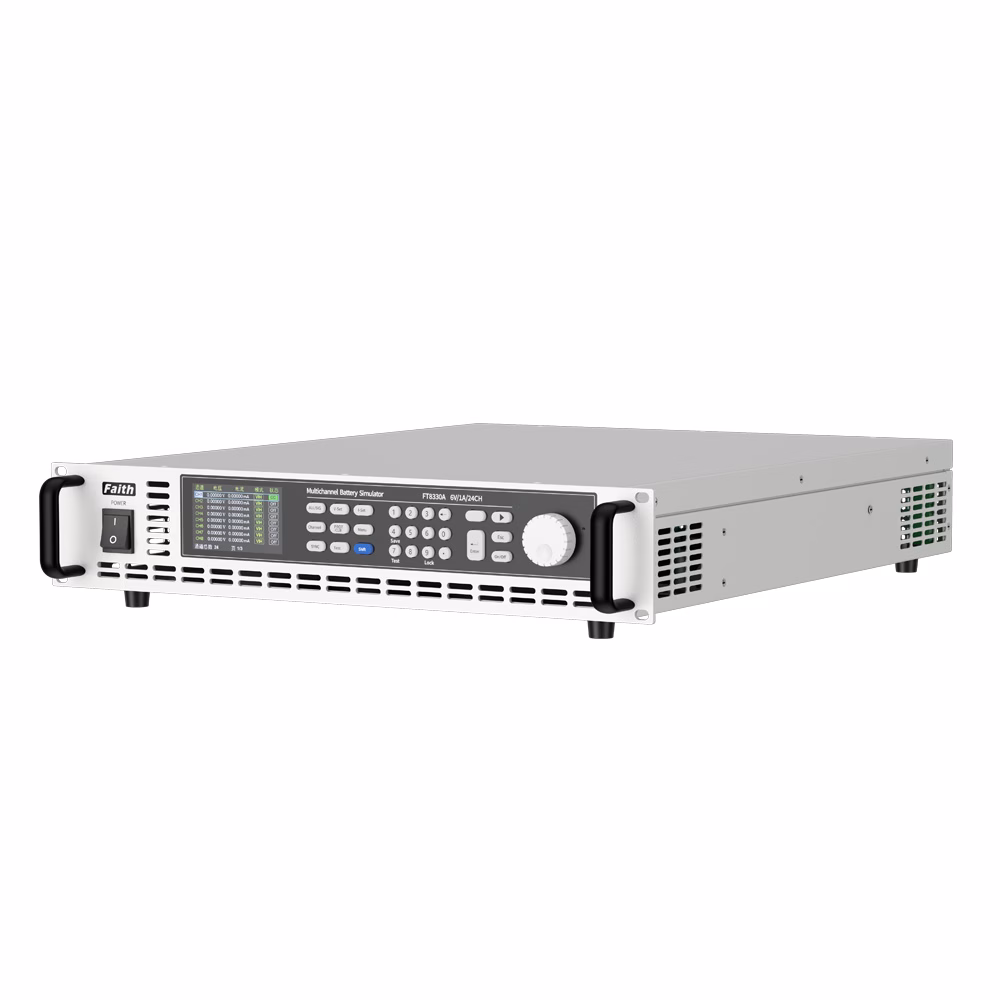

FT8330 Series Battery cell simulating power supply
- The FT8330 series battery simulator is a high precision, multi-channel, single quadrant programmable battery analog power supply.Single device channels is up to 36 and each channel is electrically isolated, it is convenient for users to connect series and parallel power supplies. The ultra-high output accuracy, as well as the characteristics of ultra-low ripple and interference, make this series of power supplies widely used in testing systems such as battery cells, super capacitors, and BMS.
Description
FT8330 Series Battery cell simulating power supply is a high-precision, multi-channel, single-quadrant programmable battery analog power supply. The number of single channel is up to 36 and the electrical isolation between the channels is convenient for users to string and power. The characteristics of ultra-high output precision and ultra-low ripple and interference make this series of power supply widely used in battery cell, super capacitor, BMS and other test systems. The FT8330 series uses a standard 19-inch chassis and provides an Ethernet port and RS485 communication interface for easy integration into the R&D and production line automated test platform, or can be used alone
The FT8330 series adopts a standard 19 inch chassis and provides Ethernet port and RS485 communication interface, which is convenient for integration into research and development and production line automation testing platforms, and can also be used separately.
Application fields
- BMS（battery management system）testing;
- CMS（capacity management system）testing;
- R&D testing of charge and discharge protection board;
- Battery cell test;
- Super capacitor core test;
- Power supply testing for other types of electronic products.
Ultra high integration

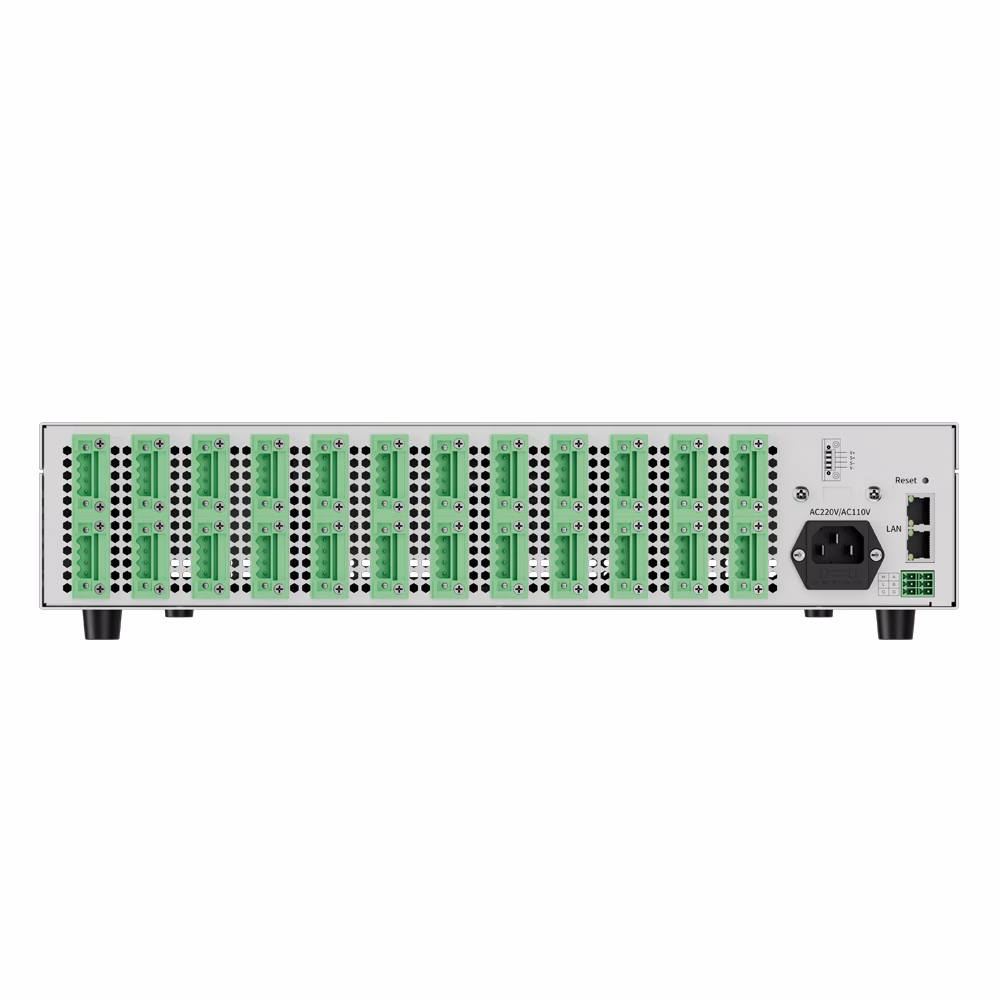

FT8330 series adopts standard 19 inch and two chassis specifications. Single 2U chassis can accommodate up to 24CH, and a 3U chassis can accommodate 36CH. The channels are isolated from each other. One device can test 36 work stations at most at the same time, which can effectively reduce the number of devices used by users and improve the test efficiency.
Ultra high accuracy
FT8330 series has high accuracy, voltage accuracy is 0.01%+0.01% F.S. Voltage resolution is as low as 0.1mV, current resolution is as low as 0.1 μA. For the test of device power consumption in standby mode, the FT8330 has 0.1μA current resolution measurement,can easily measure the standby current of μA level.
Serial connection between channels
FT8330 electrical isolation between each channel. When it is necessary to simulate multiple strings of battery cells, the simulator can support any multi-channel in series, or multiple battery cell simulators in series. Users can also perform remote control and other automatic test applications through remote interfaces.
| Specifications Table -1 | |||
| Model | FT833024A-6-1 | FT833024A-6-2 | FT833024A-6-3 |
| Current | 1A | 2A | 3A |
| Voltage | 6V | 6V | 6V |
| Power | 6W | 12W | 18W |
| Number of channels | 24CH | 24CH | 24CH |
| Constant Voltage | |||
| Range | 0 to 6V | 0 to 6V | 0 to 6V |
| Set Resolution | 0.1 mV | 0.1 mV | 0.1 mV |
| Set Precision(25±3℃) | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. |
| Read-back resolution | 0.1 mV | 0.1 mV | 0.1 mV |
| Read back accuracy(25±3℃) | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. |
| Voltage load adjustment rate | < 0.02%F.S. | ||
| Temperature coefficient | < 30ppm/ C | ||
| Voltage ripple(rms) | 2mV | 2mV | 2mV |
| Current ripple(rms) | 1.2 mA | 1.2 mA | 1.2 mA |
| Voltage rise time (no load) | < 3ms | < 3ms | < 3ms |
| Voltage rise time (full load) | < 3ms | < 3ms | < 3ms |
| Voltage drop time(no load) | < 3s | < 3s | < 3s |
| Voltage drop time(full load) | < 3ms | < 3ms | < 3ms |
| Dynamic response time | < 1ms | < 1ms | < 1ms |
| Constant current mode | |||
| Range | 0 ~ 1A | 0 ~ 2A | 0 ~ 3A |
| Set Resolution | 0.25 mA | 0.5 mA | 0.75 mA |
| Set Precision(25±3℃) | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S |
| Read-back resolution | 0.25 mA | 0.5 mA | 0.75 mA |
| Read back precision(25±3℃) | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S |
| Current load adjustment rate | < 0.01%F.S. | ||
| Temperature coefficient | < 30ppm/ C | ||
| Other characteristics | |||
| Withstand voltage (output relative to ground) | 1500VDC | 1500VDC | 1500VDC |
| Withstand voltage (channel and channel) | 1500VDC | 1500VDC | 1500VDC |
| Single channel sampling speed | 4Hz | ||
| Programming response time | < 10ms | ||
| Communication interface | LAN, RS485(isolate) | ||
| Ac input voltage | 1φ 110V/220V ac ±10% VLN, 50/60Hz | ||
| Dimension (H x W x D) | 88.1 mm x 482.6 mm x 521.4 mm | ||
| weight | 10kg | ||
| 2 -Specifications Table -2 | ||||||
| Model | FT833024R-6-1 | FT833024R-6-2 | FT833024R-6-3 | |||
| Current | 1mA/1A | 1mA/2A | 1mA/3A | |||
| Voltage | 6V | 6V | 6V | |||
| Power | 6W | 12W | 18W | |||
| Number of channel | 24CH | 24CH | 24CH | |||
| Constant Voltage | ||||||
| Range | 0 to 6V | 0 to 6V | 0 to 6V | |||
| Set Resolution | 0.1 mV | 0.1 mV | 0.1 mV | |||
| Set Precision(25±5℃) | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | |||
| Read-back Resolution | 0.1 mV | 0.1 mV | 0.1 mV | |||
| Read-back Precision(25±5℃) | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | 0.01% + 0.01% F.S. | |||
| Voltage load adjustment rate | < 0.02%F.S. | |||||
| Temperature Coefficient(0 to 40 ° C) | < 30ppm/℃ | |||||
| Voltage ripple(20Hz to 20MHz) | ≤2mVrms | |||||
| Voltage Rise time (no load) | < 3ms | < 3ms | < 3ms | |||
| Voltage Rise Time (full load) | < 3ms | < 3ms | < 3ms | |||
| Voltage drop time (no load) | < 3s | < 3s | < 3s | |||
| Voltage drop time (full load) | < 3ms | < 3ms | < 3ms | |||
| Dynamic response time | < 1ms | < 1ms | < 1ms | |||
| Constant Current | ||||||
| Range | 0 to 1mA | 0 ~ 1A | 0 ~ 1mA | 0 ~ 2A | 0 ~ 1mA | 0 ~ 3A |
| Set Resolution | 0.1 uA | 0.1 mA | 0.1 uA | 0.2 mA | 0.1 uA | 0.3 mA |
| Set Precision(25±5℃) | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | |||
| Read-back Resolution | 0.1 uA | 0.1 mA | 0.1 uA | 0.2 mA | 0.1 uA | 0.3 mA |
| Read-back Precision(25±5℃) | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | 0.05% + 0.05% F.S | |||
| Current ripple(20Hz to 20MHz) | 3uArms | 0.3 mArms | 3uArms | 0.3 mArms | 3uArms | 0.3 mArms |
| Current load adjustment | < 0.01%F.S. | |||||
| Temperature Coefficient | < 30ppm/ C | |||||
| Other characteristics | ||||||
| Withstand voltage (output relative to ground) | 1500VDC | |||||
| Withstand voltage (channel and channel) | 1500VDC | |||||
| Single channel sampling speed | 20Hz | |||||
| Programming response time | < 10ms | |||||
| Communication interface | LAN, RS485(isolate) | |||||
| Ac input voltage | 1φ 110V/220V ac ±10% VLN, 50/60Hz | |||||
| Dimension (H x W x D) | 88.1 mm * 482.6 mm * 521.4 mm | |||||
| Weight | 10kg | |||||
Feature
- Voltage output: 0 ~ 6V;
- Current output: 0 ~ 1A/0 ~ 2A/0 ~ 3A;
- Voltage accuracy, resolution up to 1/10,000;
- The four-wire connection can effectively eliminate the measurement effect caused by the wire;
- The number of channels can be up to 36, or the number of channels can be selected according to demand;
- Each channel is isolated and can be connected in parallel or in series;
- Temperature drift coefficient is less than 30ppm/ ° C;
- Professional testing software, supporting data reporting and data analysis; Professional testing software, supporting data reporting and data analysis;
- S485 and Ethernet control interface;
- SCPI and Modbus protocols are supported;
- Standard 19 ", rack mounted;
- Intelligent fan control, long life, low noise.
