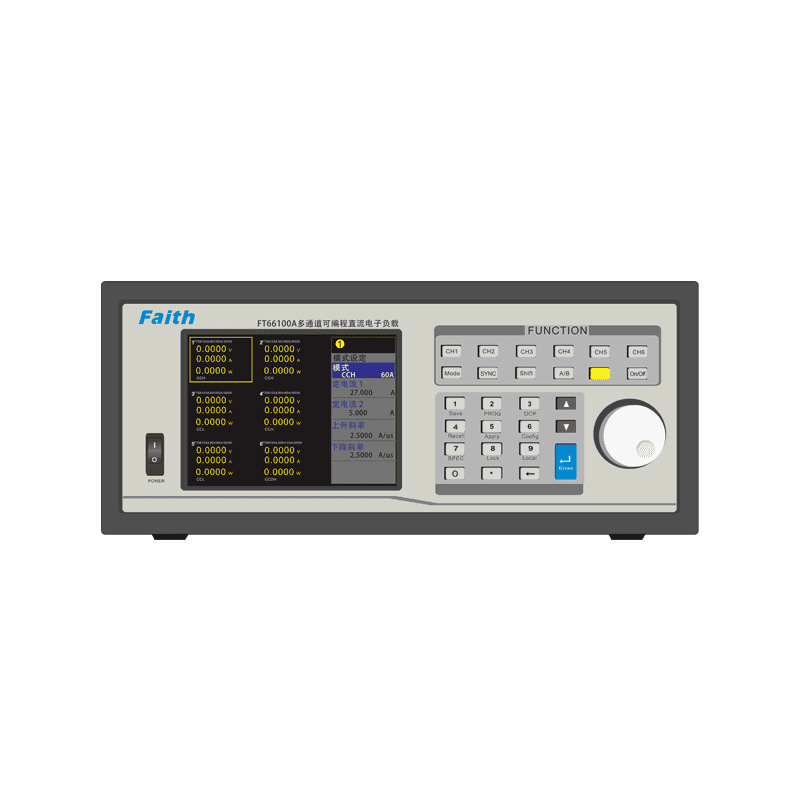

FT66100 multi-channel programmable DC electronic load, modular design, a single frame can install up to 6 electronic load modules. Its 8-inch color screen can display the work content of 6 channels at the same time, and adaptively adjust the optimal display interface according to the number of channels. This load provides a wide range of test functions, suitable for a variety of single or multi-output DC power supplies, chargers, LED drivers or related equipment testing, including both CC, CV, CR and CP basic test mode, but also provides LED test mode and dynamic test function, dynamic frequency up to 20kHz.

The FT66100 series adopts the structure of one host and one module. Users can freely choose modules according to the number of test channels and power requirements, which is very suitable for building a power test platform. It is equipped with RS232, GPIB (optional), LAN (optional) and other communication control interfaces, which is convenient for users to implement remote intelligent control, greatly improve work efficiency, and provide a variety of solutions for your design and testing.

Characteristic

• 8-inch color display, can display 6 channels data and set parameters at the same time, self-adaptive screen display;
• Support Chinese/English/Chinese language display;
• 5-bit data, 0.05% accuracy, 20kHz dynamic frequency can be set up and down slope;
• Constant current, constant voltage, constant resistance, constant power and LED five test functions;
• Multiple modules can be set synchronization mode, calmly cope with high current or multi-output channel device test;
• Over voltage/over current/over power/over temperature/polarity reverse and other all-round intelligent protection;
• With adjustable hardware current and power limit value, can effectively provide reliable protection for the tested equipment;
• Support quick call, numeric keys can arbitrarily call the saved Settings, easy to test;
• Support automatic test, load automatically complete the test process, and give the test result;
• Support OCP test, automatically find the overcurrent protection point, record the maximum current and maximum power value and produce the result judgment;
• Two short-circuit states, switching and delay, to ensure the safety of the power supply under test;
• Perfect hardware and software protection, comprehensive internal and external protection;
• Simulate capacitive inductive load, control battery charging and discharging state;
• RS232, GPIB (optional), LAN (optional) communication port, standard SCPI instruction set, easy to build the test system;
• Intelligent fan control saves energy and reduces noise.

Steady-state function

        FT66100 series electronic load with constant current, constant voltage, constant resistance and constant power, LED five test modes, can meet a wide range of test requirements. Constant current and constant resistance modes can be used to test whether the output voltage of the voltage source maintains a stable output under different load conditions. For battery chargers and adapters, constant voltage mode can change the output voltage of the charger and adapter to verify that the output current is correct.

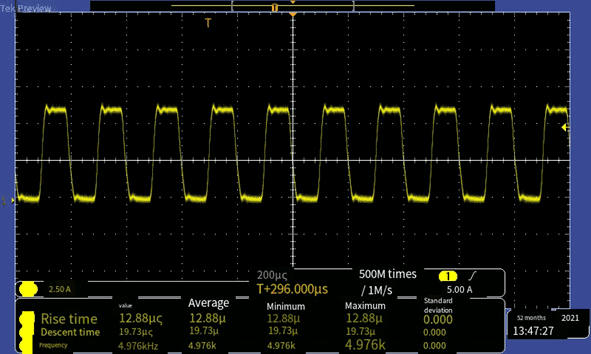

Dynamic function

        The FT66100 series provides programmable dynamic testing capabilities. The dynamic mode is used to simulate all kinds of on-load sudden changes and anomalies, and is suitable for testing the dynamic characteristics of power supplies. Maximum frequency up to 20kHz, support up slope, down slope, range switching parameter Settings.

OCP test

         FT66100 series load itself provides OCP test, mainly used in BMS, power module overcurrent and overpower point test. During OCP testing, the overcurrent protection point of the tested object will be automatically found and recorded in IMAX, PMAX. Combined with the high and low limit values of the test parameters, it can automatically determine whether the test results exceed the set specifications, saving time for product design verification and production line system testing.

Program features

        The FT66100 series provides program testing capabilities to simulate complex changes in actual loads. In program mode, the load performs multiple tests on the device based on the file and prompts the test results in the form of Pass or Fail after the test is completed. The advantages of the program mode are especially obvious in the product inspection, which can significantly improve the efficiency of product inspection. The load can store up to 10 programs, each containing 10 sequences, for a total of 100 files. If a single program sequence is not sufficient to test the object under test, you can use the program chain feature to obtain more sequences for testing.

APPLY Mode

        The FT66100A series offers a wide range of application modes to suit testing in special situations, including four modes:

        Inductive load simulation (CC Rise), capacitive load simulation (CV Rise), constant current constant voltage (CC To CV) and constant resistance To constant voltage mode (CR To CV).

        The constant voltage soft start mode is equivalent to a capacitive load, and the size of its analog capacitance is proportional to the rise time of the soft start. The constant current soft start mode is equivalent to an inductive load, and its analog inductance is proportional to the rise time of the soft start. CC TO CV mode and CR TO CV mode are mainly used for battery or capacitor product testing, which can make the discharge more thorough.

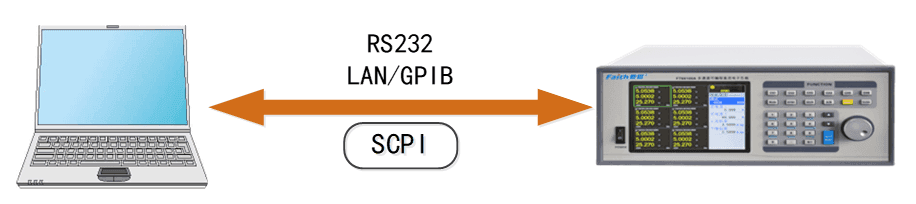

SCPI with remote control

        The FT66100 series supports standard SCPI commands, through which all functions of panel operations can be implemented. This provides convenience for the establishment of intelligent test platform and the secondary development of users. The FT66100A series can easily achieve remote control of electronic loads through RS232, GPIB (optional), LAN (optional) interfaces.
