Sketch

Automotive power supply system due to the electrical use of the environment is more complex, such as motor, solenoid valve and other components start, close and other reasons lead to power supply voltage often large fluctuations and other abnormal phenomena. In order to improve the reliability of automotive electrical and electronic equipment, automotive electronic product manufacturers and Oems often use traditional programmable DC power supply for electrical reliability testing, due to the diversity of test standards, the complexity of programming functions and the slow speed of traditional power supply and other reasons add difficulty and cost to this work.

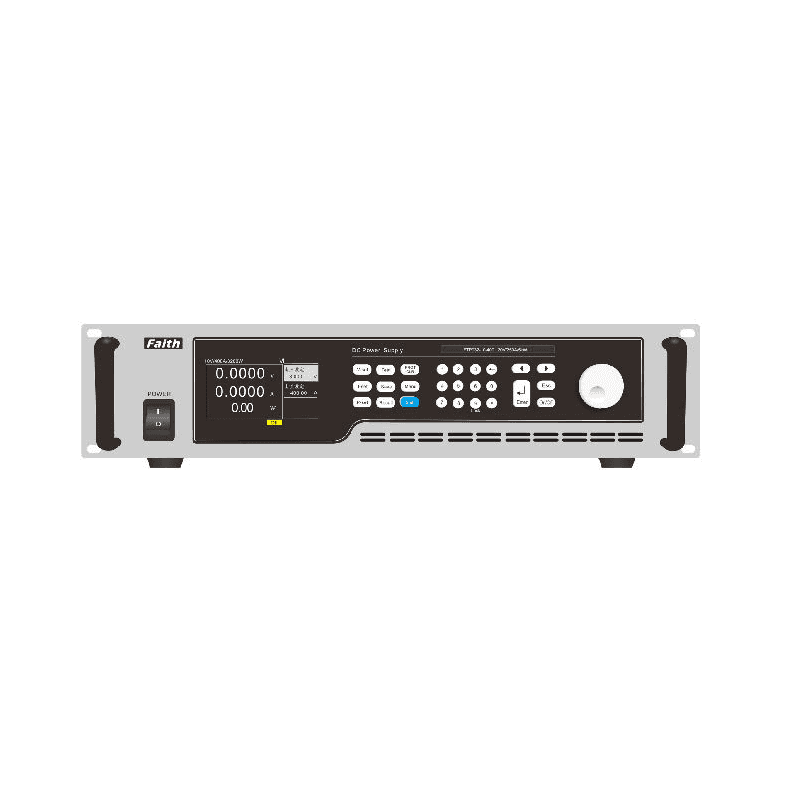

FaithTech's FTP032-C series, FTG-C series and FTB9000-C power supply's automotive electronic waveform test function can solve these problems.

FTP032-C series, FTG-C series and FTB9000-C series power supplies can achieve ISO167500-2 (Environmental conditions and testing of electrical and electronic equipment for road vehicles Part 2: Electrical load), LV124, LV148, SAEJ1113-11, ISO21848 and Volkswagen VW8000 electrical and electronic equipment test waveform function.

FTG-C series and FTB9000-C series high-voltage model power supply is suitable for new energy vehicles electrical and electronic equipment testing, its test waveform meets the test requirements of Volkswagen VW800300.

Characteristic

• Voltage level: 40V, 80V, 600V, 1000V;

• Power level: 3.2kW ~ 90kW; (more power can be customized); High accuracy: 16-bit high-speed ADC/DAC, precision measurement and control;

• Channel power range: low linear adjustment rate, low load adjustment rate, low ripple, low noise; Slope control: can quickly and accurately control the voltage (or current slew rate) rise and fall;

• Fast response: transient response of 2ms typical value;

• Protection function: over voltage, over current, over power, over temperature and other all-round intelligent protection;

• External control: ON/OFF control, analog programming, monitoring and other isolation interface (optional); Support standards: ISO16750-2, VW80000, VW80300, SAEJ1113-11, LV124, ISO21848, LV148;

• Host computer functions: waveform display, standard test waveform import, power control, sampling data saving, back reading, sampling rate up to 100 points/second;

• Provide LAN, RS232 remote communication interface;

• Intelligent fan control, noise reduction, improve service life;

• TFT color LCD display, support simplified Chinese and English display.

Waveform implementation

FTP032-40-120C, FTP032-80-60C, FTG-C 40V, 80V models can achieve:

ISO16750-2 standard waveform:

Power supply voltage slow rise slow fall, starting characteristics, power supply voltage instant drop, voltage drop reset performance.

VW80000 standard waveform:

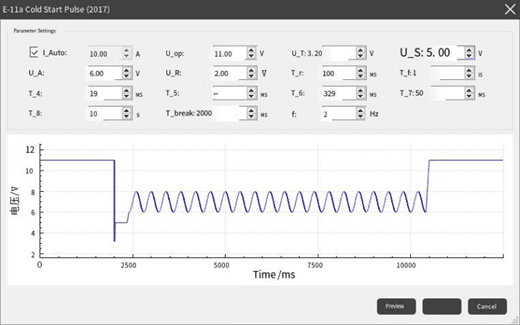

E-01, E-02, E-03, E-04, E-05, E-07, E-08, E-09, E-11a, E-11b, E-12.

ISO16750 Supply voltage slow rise and slow fall

ISO16750 voltage plunge reset characteristic

ISO21848 standard Waveforms:

Overvoltage, power supply voltage slow down slow up,power supply voltage interruption.

SAEJ1113-11 Standard waveform:

Test_2B, Test_4, Test_5.

LV124 Standard waveform:

E-01, E-02, E-03, E-04, E-05, E-07, E-08, E-09, E-11, E-12.

LV148 Standard waveform:

E48-01a, E48-01b, E48-02, E48-03, E48-04, E48-06, E48-08, E48-10, E48-15, E48-16, E48-17, E48-18, E48-19.

FTG-C 600V, 1000V, FTB9000-C 500V, 1000V models can achieve:

VW80300 standard waveform:

Hpvt-1, EHV-01, EHV-02, EHV-03, EHV-05, EHV-06.

VW 80000 E-11 Cold start pulse (enhanced)

VW 80000 E-09 reset characteristic pulse

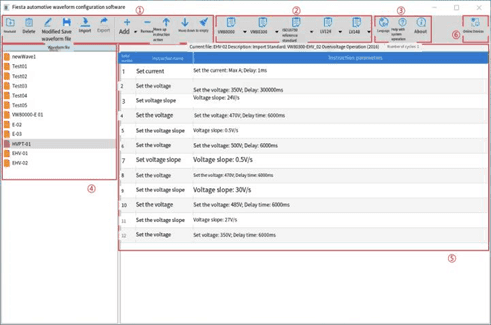

software interface
