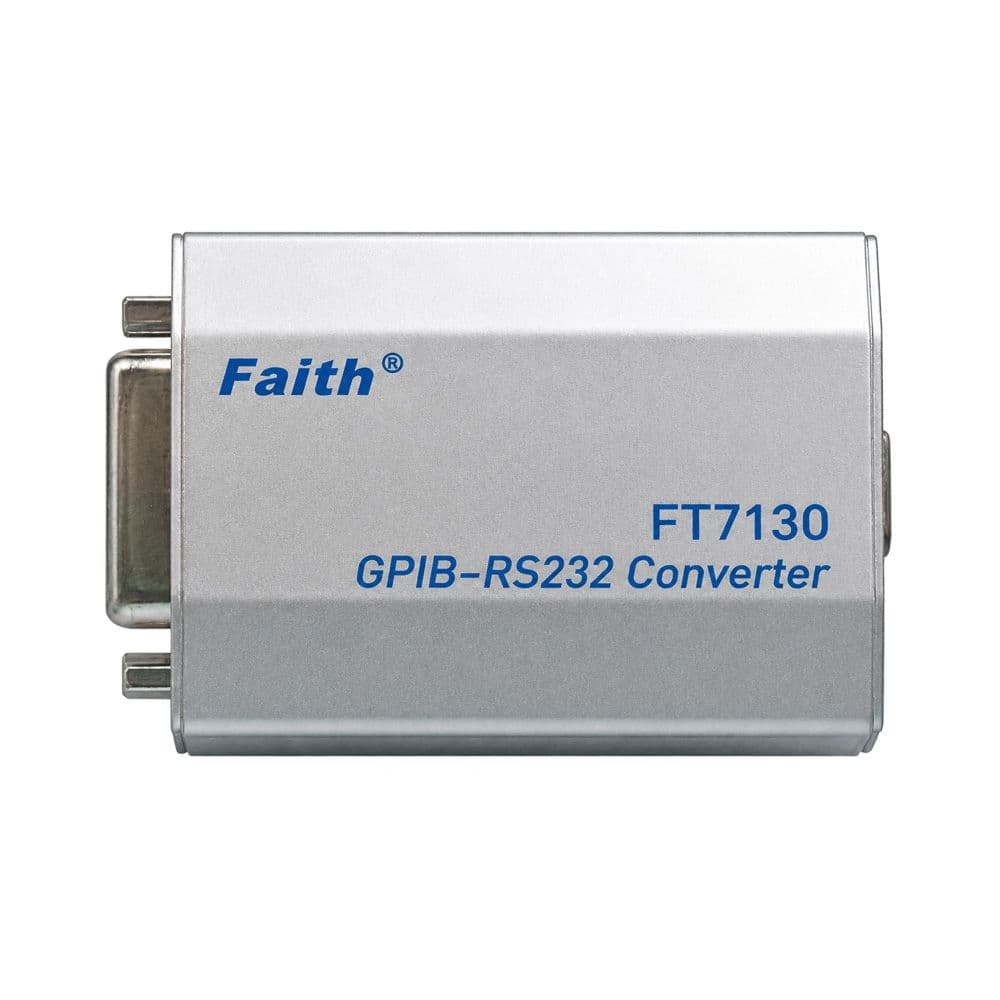

The FaithTech FT7130 GPIB-RS232 Converter (Instrument side: RS232, Computer/Controller side: GPIB) enables instruments equipped with an RS232 interface to be connected to a GPIB-based test system by converting the RS232 interface into a GPIB interface.

By connecting the converted instrument to a GPIB test system, users can utilize the powerful capabilities of a computer for instrument control and data communication. It enables remote communication, control, and data acquisition between one or multiple instruments, making testing and measurement processes faster, simpler, more accurate, and more efficient.

The FT7130 is suitable for applications in aerospace, defense, medical electronics, power electronics, automation, communications, and other fields where RS232-to-GPIB interface conversion is required.

Features

• Configurable RS232 interface parameters, compatible with a wide range of instruments equipped with standard serial interfaces;
• Simple configuration and easy operation;
• Two status indicator LEDs clearly display the converter’s operating status;
• Compatible with IEEE 488.1 / IEEE 488.2 standards;
• Dimensions: 90 × 60 × 23 mm.
